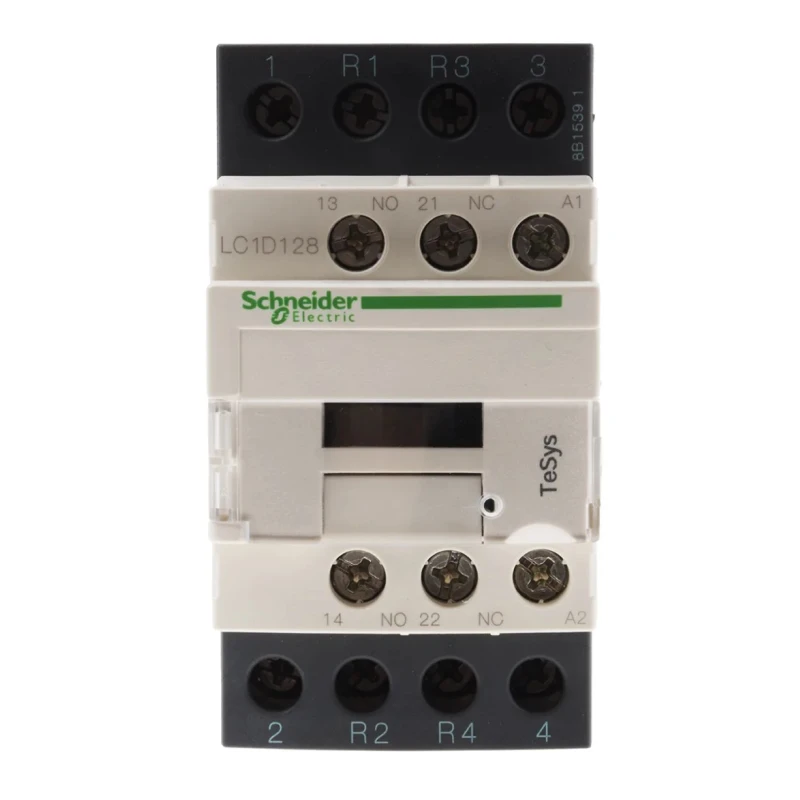

Schneider Electric TeSyS D Contactor 4-Pole 25 A 690V AC Contact Voltage 230V AC Coil LC1D128U7
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D128U7 |
| Depth | 90mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 240V |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor features a 690V AC contact voltage suitable for various industrial electrical loads.
- It includes 2 NO (normally open) and 2 NC (normally closed) auxiliary contacts for versatile control.
- The device is designed for mounting on DIN rail for easy installation.
- Screw terminals provide IP20 finger-safe connections with clear international markings.
- Operational temperature range spans from -5°C to 60°C, ensuring performance in diverse environments.
- Complies with UL 508, RoHS, IEC 60947-4, EN 60947-4-1, and CSA C22.2 No. 14 standards.
- Designed for disassembly under Schneider Electric's Better World program for sustainability.
Product Description
Schneider Electric LC1D128U7 TeSyS D Contactor is a highly reliable 4-pole contactor engineered for sophisticated motor control and resistive load applications in industrial and commercial settings. With a 230V AC coil voltage and a contact voltage capacity of 690V AC, this device supports an operational current of 25 A, making it suitable for a range of electrical loads.
Manufactured with durability and performance in mind, this contactor features screw-type IP20 finger-safe terminals that incorporate both North American and international terminal markings for clear and safe wiring. It can be easily mounted on DIN rails or panels, providing flexibility for electrical control panel designs.
The contactor includes two normally open and two normally closed auxiliary contacts, enhancing control options for complex automation systems. It operates reliably over a temperature range from -5°C up to 60°C, suitable for demanding industrial environments.
It is designed with double breaking pole technology, providing enhanced performance with linear translation movement for effective contact power interruption. The device is compliant with major standards such as UL 508, RoHS directives, IEC 60947-4, EN 60947-4-1, and CSA C22.2 No. 14, ensuring safety and regulatory compliance.
Schneider Electric’s Better World initiative underpins the design with sustainability by promoting disassembly and reuse. The contactor is versatile for use in motor starters, conveyors, lifts, escalators, and various industrial machinery applications.
Its wider application range includes resistive heating loads, compressors, pumps, mixers, and air conditioning systems. The screw connections provide ease of installation and maintenance in industrial automation setups. Auxiliary contact blocks and other accessories can be added to further customize operation.
Designed for long mechanical and electrical life, this product is suitable for heavy-duty industrial use.
EnvMart invites you to explore more industrial-grade Contactors and automation control gear, including accessories and related products, to enhance your electrical control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact voltage rating of this model is 690V AC, suitable for various industrial electrical loads.
This contactor operates with a coil voltage of 230V AC.
The LC1D128U7 features a 4-pole configuration.
It supports an operational current of 25 A, making it suitable for various applications.
The operational temperature range spans from -5°C to 60°C, ensuring performance in diverse environments.
This model is designed for mounting on DIN rail, providing easy installation.
It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for versatile control.
This contactor is suitable for motor control and resistive load applications, including compressors, pumps, and heating loads.
The dimensions of the LC1D128U7 are 85mm in length, 90mm in depth, and 45mm in width.
It complies with UL 508, RoHS, IEC 60947-4, EN 60947-4-1, and CSA C22.2 No. 14 standards, ensuring safety and regulatory compliance.
It features screw-type IP20 finger-safe terminals with both North American and international terminal markings for clear wiring.
Yes, it is designed for disassembly under Schneider Electric's Better World program, promoting sustainability and reuse.
