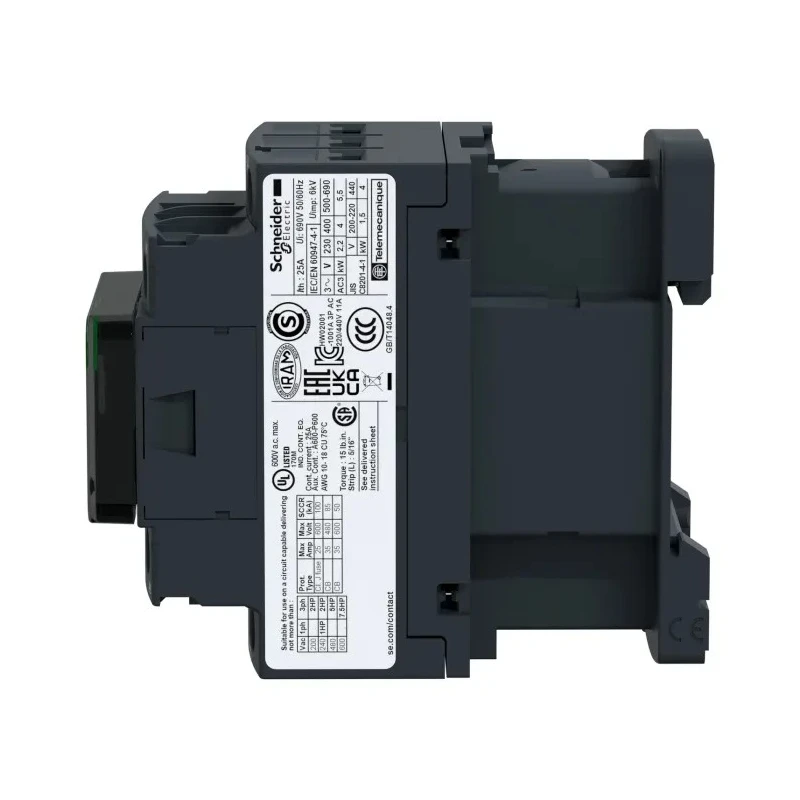

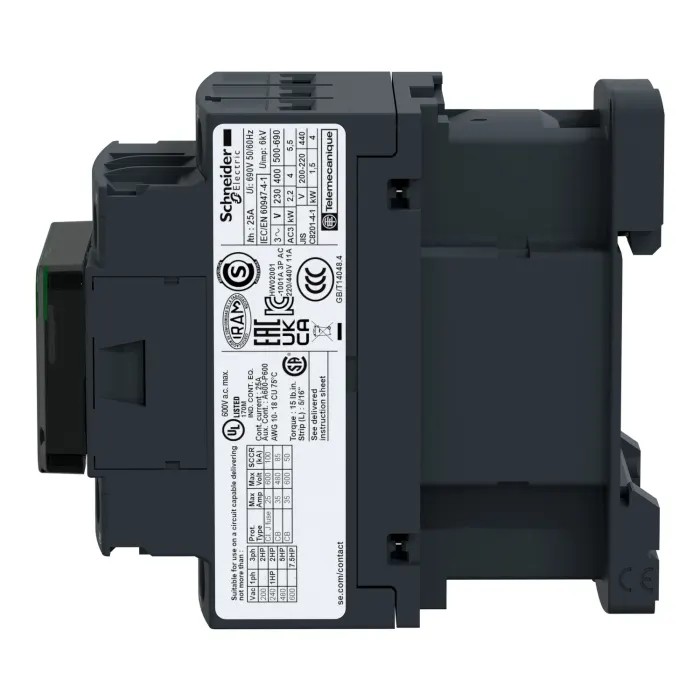

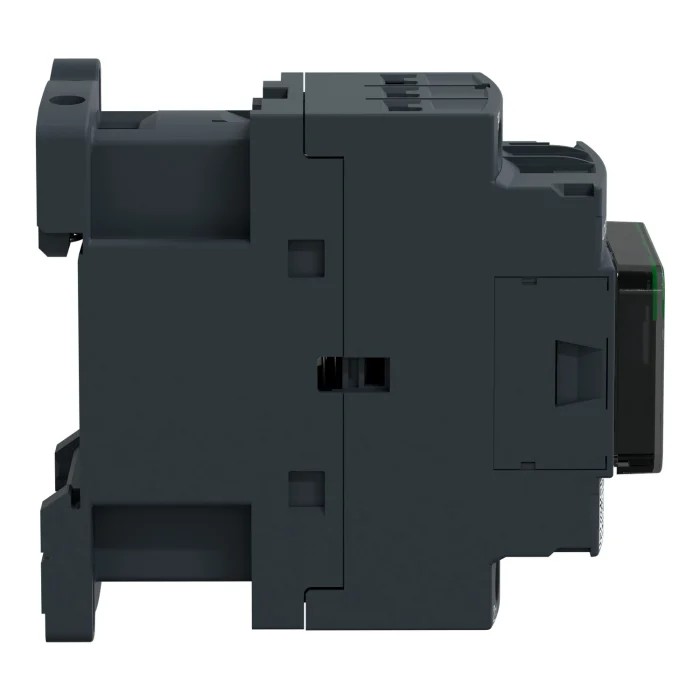

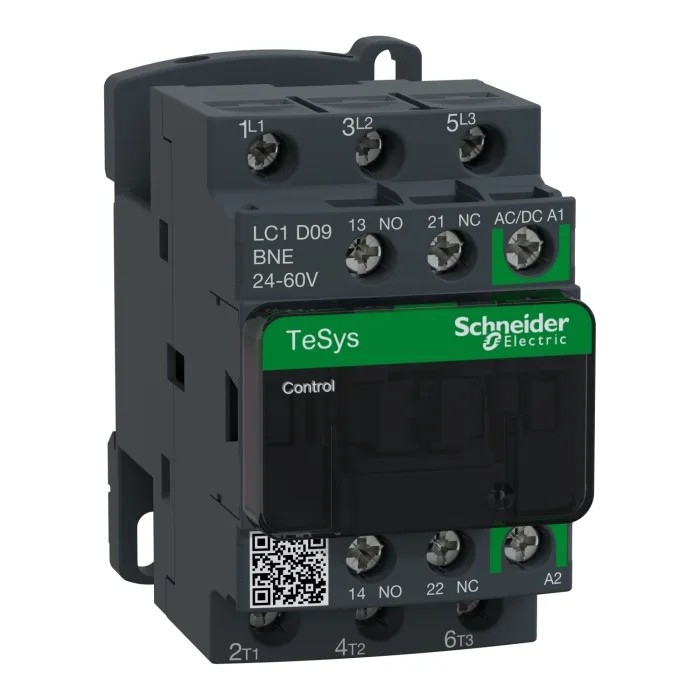

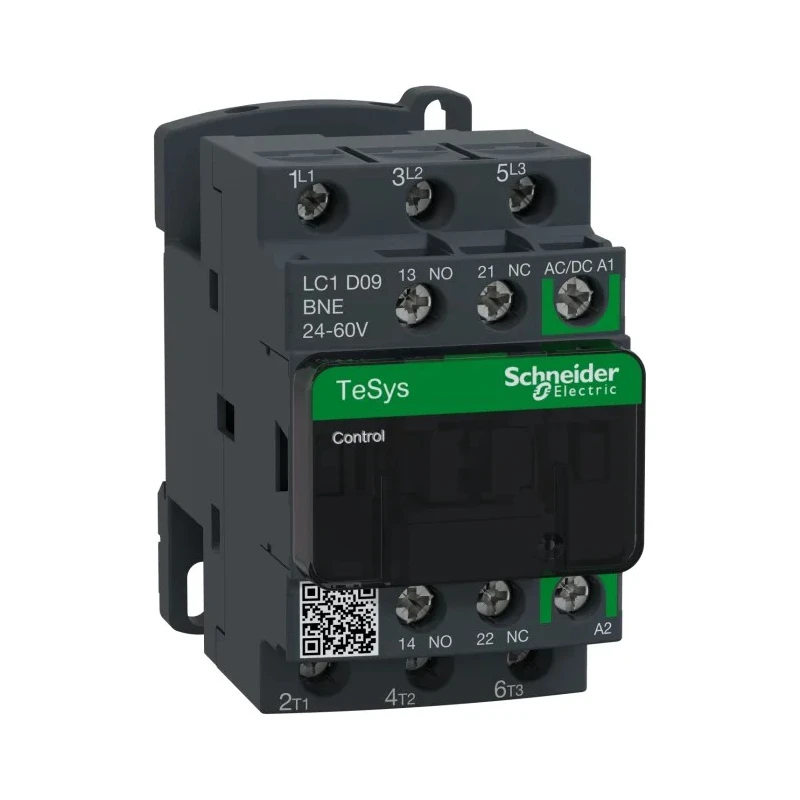

Schneider Electric TeSyS D Motor Control Contactor 24V AC/DC Coil 3-Pole 9A 4kW 60V Control Voltage 3 NO LC1D09BNE

Schneider Electric LC1D09BNE is a TeSyS D series motor control contactor specifically engineered for industrial motor control and automation systems. This contactor operates with a 24V AC/DC coil voltage and supports a contact current rating of 9 amperes with a power capacity of up to 4 kW, making it suitable for demanding applications involving resistive loads and motor starting/stopping functions.

The device includes a robust 3-pole design allowing for seamless control of three-phase electrical motors. It is equipped with two auxiliary contacts (1 NO and 1 NC) to provide enhanced control and monitoring capabilities in automation setups. The contactor is mounted easily on DIN rails, facilitating fast integration into existing panels and control gear assemblies.

Its construction includes screw terminals ensuring reliable electrical connections under industrial operational conditions. The unit withstands ambient temperatures from -25°C to +60°C, supporting versatile placement in various industrial environments. Measuring 45mm in length, 86mm in width, and 77mm in depth, this compact contactor conserves valuable panel space and complies with international approvals including CCC, CSA, IEC, RoHS, and UL standards.

Applications for this device span industrial motor control, electrical panels requiring precise switching of motors and resistive loads, and automated systems where reliable and compact control solutions are essential. The high contact voltage rating of 690V AC ensures the contactor is suitable for high-voltage industrial applications and enhances overall system safety and performance.

This contactor features a 3-pole configuration suited for managing three-phase motors. It supports a contact current of 9A and a power rating of 4kW for reliable performance. The control circuit voltage is rated at 60V, supporting efficient control functions.

Screw terminals ensure secure and stable electrical connections. Includes two auxiliary contacts configured as one normally open and one normally closed to enhance operational flexibility. Designed for DIN rail mounting, it provides easy installation in electrical control panels.

Operates efficiently within a temperature range of -25°C to +60°C, suitable for varied industrial environments. Compact dimensions optimize panel space utilization.

Schneider Electric's LC1D09BNE motor control contactor is a reliable and efficient solution for industrial automation needs. Explore more products in the Contactors category at EnvMart for advanced electrical controls engineered for industrial excellence.
