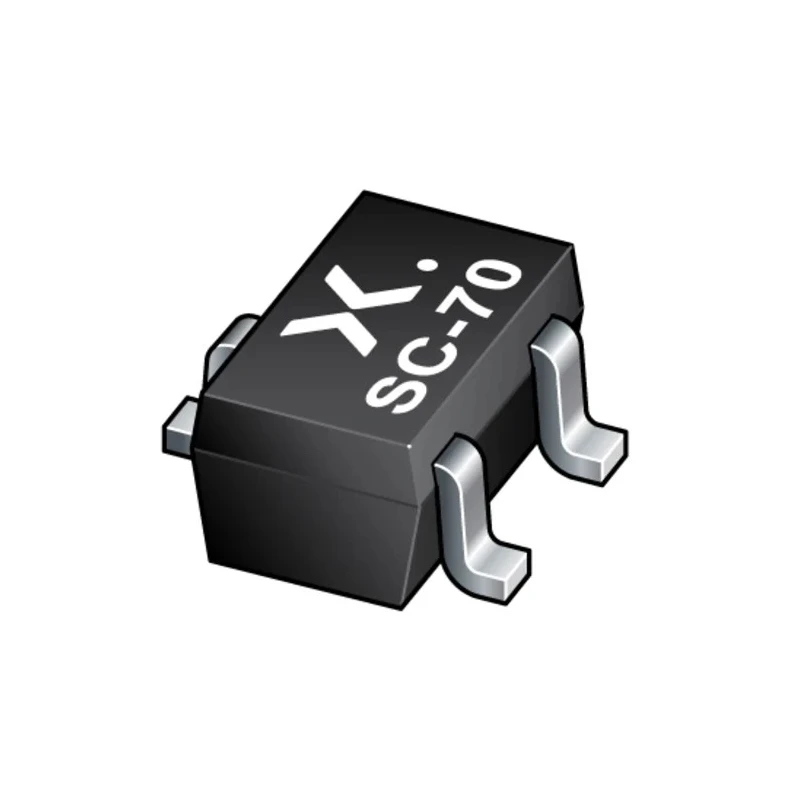

Nexperia Dual 6.2 V Zener Diode Voltage Regulator 350 mW 5% Tolerance Surface Mount 3-Pin SOT-323 BZB784-C6V2,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Dual 6.2 V Zener Diode Voltage Regulator 350 mW 5% Tolerance Surface Mount 3-Pin SOT-323 BZB784-C6V2,115

Name: Nexperia Dual 6.2 V Zener Diode Voltage Regulator 350 mW 5% Tolerance Surface Mount 3-Pin SOT-323 BZB784-C6V2,115
Brand: Nexperia
SKU: 147725
Price: 0.06 USD
Availability: InStock



Category Zener Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	2.2mm
Model	BZB784-C6V2,115
Mount Type	Surface
Series	BZB784C6V2
Maximum Operating Temperature	150°C
Working voltage range	nom. 2.4 to 15 V (E24 range)
Package Type	SOT-323
Minimum Operating Temperature	-55°C
Pin Count	3
Number of Elements per Chip	2
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	350mW
Diode Configuration	Dual
Test Current It	5mA
Maximum Reverse Leakage Current	3μA
Nominal Zener Voltage Vz	6.2V
Zener Type	Voltage Regulator
Maximum Zener Impedance	10Ω
Typical Voltage Temperature Coefficient	2.2mV/K
Total power dissipation	max. 350 mW
ROHM UMZU6.2NFMT106 1-Element Uni-Directional TVS Diode, 3-Pin SOT-323Brand	ROHM

Key Features

This diode features dual zener elements per chip for voltage regulation applications.
Nominal Zener voltage is 6.2 volts with a tolerance of ±5% for precision operation.
Maximum power dissipation is 350 milliwatts ensuring stable performance under low power conditions.
Small form factor with a 3-pin SOT-323 surface mount package measuring 2.2 mm length and 1.1 mm height.
Operation temperature range from -55°C to 150°C suitable for automotive and industrial environments.
Low maximum reverse leakage current of 3 microamperes minimizes power loss.
Typical voltage temperature coefficient of 2.2 mV/K for consistent voltage under temperature changes.
Designed for ESD and surge protection in industrial, automotive, and electronic devices.

Product Description

Nexperia BZB784-C6V2,115 is a dual Zener Diode voltage regulator designed for low-power voltage regulation applications. It features a nominal zener voltage of 6.2 V with ±5% tolerance, supporting precise voltage regulation in sensitive electronic circuits.

Housed in a compact 3-pin SOT-323 surface mount package, this diode provides a maximum power dissipation of 350 mW, making it suitable for circuits that require low power consumption and compact layout. Its compact dimensions of 2.2 mm length and 1.1 mm height enable easy integration into high-density printed circuit boards.

The diode demonstrates excellent reliability over a wide temperature range from -55°C to 150°C, making it ideal for automotive, industrial, and consumer electronics applications where temperature extremes are common. The low maximum reverse leakage current (3 μA) and a typical voltage temperature coefficient of 2.2 mV/K ensure stable performance under varying electrical and environmental conditions.

The automotive-grade AEC-Q101 qualification further endorses its quality and reliability for vehicular electronics use cases. This diode is engineered for general voltage regulation and contributes to protecting circuits against electrostatic discharge (ESD) and surge events.

Typical use cases include electronic regulatory circuits in automotive systems, industrial electronics for voltage stabilization, and protection circuits in consumer electronics. The BZB784-C6V2,115 series is compatible with working voltage ranges from 2.4 V up to 15 V (E24 range), providing design flexibility.

This product has dual zener elements per chip for enhanced voltage regulation. Surface mount technology (SOT-323) for modern PCB assembly. Maximum power dissipation rating of 350 mW supports low-power designs. Wide ambient operating temperature from -55°C to +150°C.

Low reverse leakage current enhances efficiency. Typical voltage temperature coefficient of 2.2 mV/K. AEC-Q101 automotive certified for high quality standards.

This Nexperia diode series provides a reliable and compact solution for voltage regulation in various industrial, automotive, and electronic manufacturing applications. Explore more voltage regulator and semiconductor products from the Electronics & Electricals category at EnvMart.
