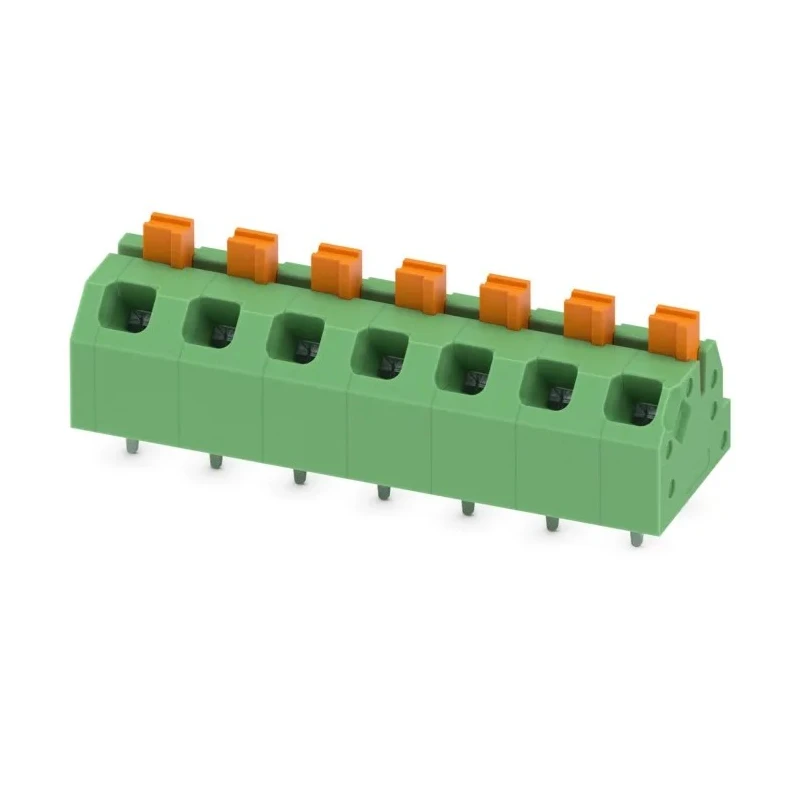

Phoenix Contact Angled Wave Soldering Mount PCB Terminal Block, 7 Contacts, 5 mm Pitch, 2 Rows, Polyamide Housing 1862466
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Orientation | Angled |
| Current | 16A |
| Model | 1862466 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 7-5.0-EL |
| Number of Rows | 2 |
| Pitch | 5mm |
| Standards/Approvals | cULus Recognised, EU RoHS |
| Number of Contacts | 7 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 320 V, pitch: 5 mm, number of positions: 7, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, Colour: green |
Key Features
- The terminal block is constructed with a durable polyamide housing.
- Supports a nominal current of 16 amperes and a nominal voltage of 320 volts.
- Features push-in spring connection for tool-free, time-saving wiring.
- Designed for wave soldering mounting and angled conductor/PCB connection at 45 degrees.
- Provides stable, long-term contact force and easy finger-operated release button operation.
- Compact size makes it suitable for space-constrained PCB applications.
- Includes an integrated test option for quick and convenient electrical testing.
Product Description
Phoenix Contact 1862466 is an angled wave soldering mount PCB terminal block designed for reliable electronic connectivity. It features 7 contacts arranged in 2 rows with a 5 mm pitch, supporting a nominal current of 16 A and nominal voltage of 320 V.
The terminal block uses a polyamide housing, ensuring durability and resistance to environmental factors. It employs a push-in spring connection method that enables quick and tool-free wiring, providing a stable contact force that maintains connection integrity over time.
Designed for wave soldering mounting, the conductor and PCB connection direction is angled at 45 degrees, optimizing space utilization on circuit boards. The terminal block is green in color and includes a finger-operated release button for easy conductor release without tools.
This device is cULus Recognised and RoHS compliant, suitable for applications that demand safety standards conformance. Durable polyamide housing ensures long-lasting use. Nominal current of 16 A and voltage rating of 320 V for robust performance.
Push-in spring connection provides secure and tool-free wiring. Compact 2-row configuration with 7 contacts and 5 mm pitch saves PCB space. Angled 45° conductor/PCB connection optimizes layout efficiency. Integrated test option allows quick electrical verification.
Finger-operated release button enables convenient conductor removal.
Its design is ideal for industrial electronics, manufacturing, and electronic component assembly where reliable PCB connections are critical. This component supports streamlined installation and maintenance workflows in professional environments.
Explore the full range of Phoenix Contact PCB Terminal Blocks and connectors on EnvMart for trusted quality and technical excellence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a nominal current of 16 amperes and a nominal voltage of 320 volts.
It employs a push-in spring connection method, allowing for quick and tool-free wiring.
It features 7 contacts arranged in 2 rows with a 5 mm pitch.
The conductor and PCB connection is angled at 45 degrees, optimizing space utilization on circuit boards.
The housing is constructed from durable polyamide, ensuring resistance to environmental factors.
Yes, it is cULus Recognised and complies with EU RoHS standards.
This model is green in color.
Yes, it includes an integrated test option for quick and convenient electrical testing.
It is designed for wave soldering mounting.
The 5 mm pitch allows for compact arrangement and efficient use of space on the PCB.
The model number is 1862466.
The terminal block is manufactured in India.
