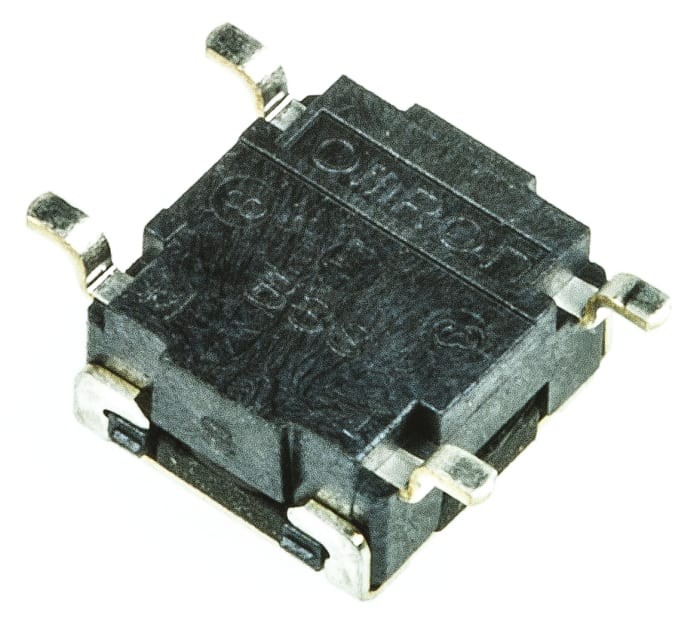

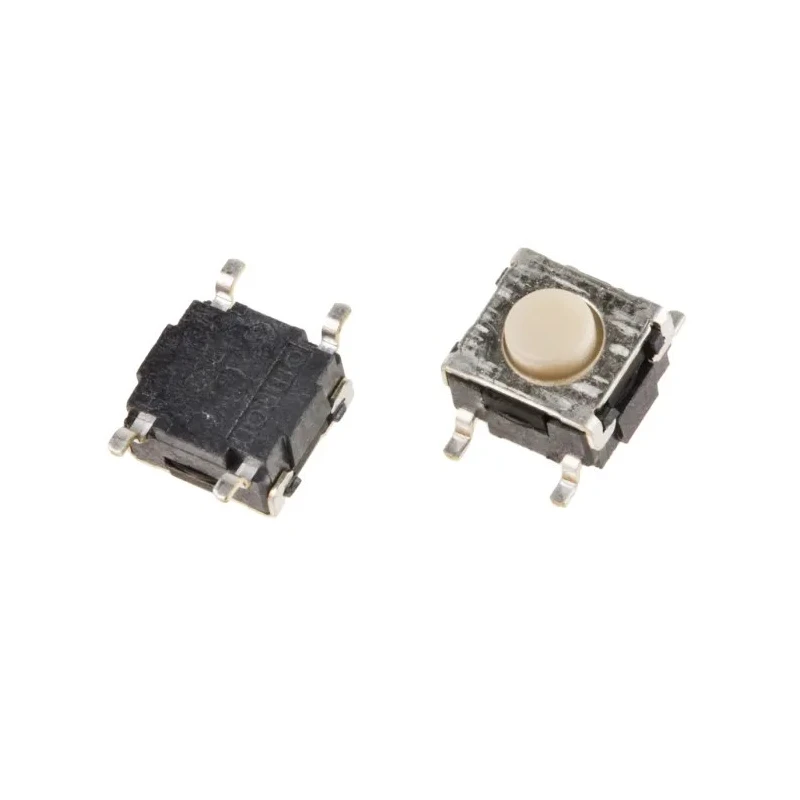

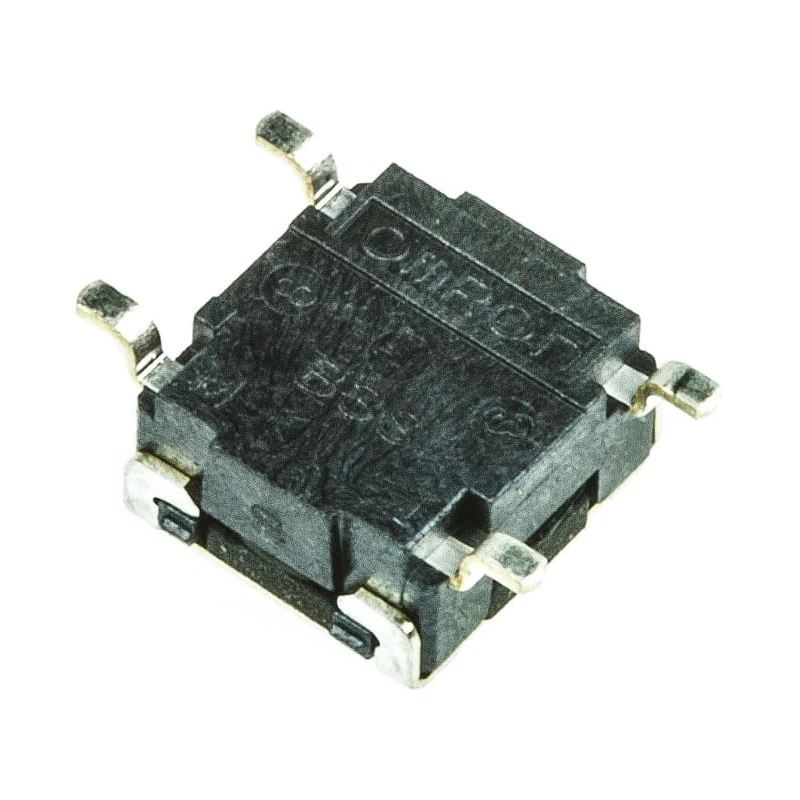

Omron IP67 Cream Tactile Switch Button 0.55 mm SPST 50mA 24 V dc Surface B3S-1000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 4.3mm |
| Length | 6mm |
| Model | B3S-1000 |
| IP Rating | IP67 |
| Width | 6.6mm |
| Mount Type | Surface |
| Series | B3S |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Cream |
| Actuator Length | 0.55mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Switch Contact Current | 50mA |
| Operating Force | 1.57N |
| Mechanical Life | 500000Operations |
| Reflow temperature | 235°C, 10 secs max |
| Aratas Black Tactile Switch Button, 0.55 mm, SPST 50mA 24 V dc, SurfaceBrand | Omron |
Key Features

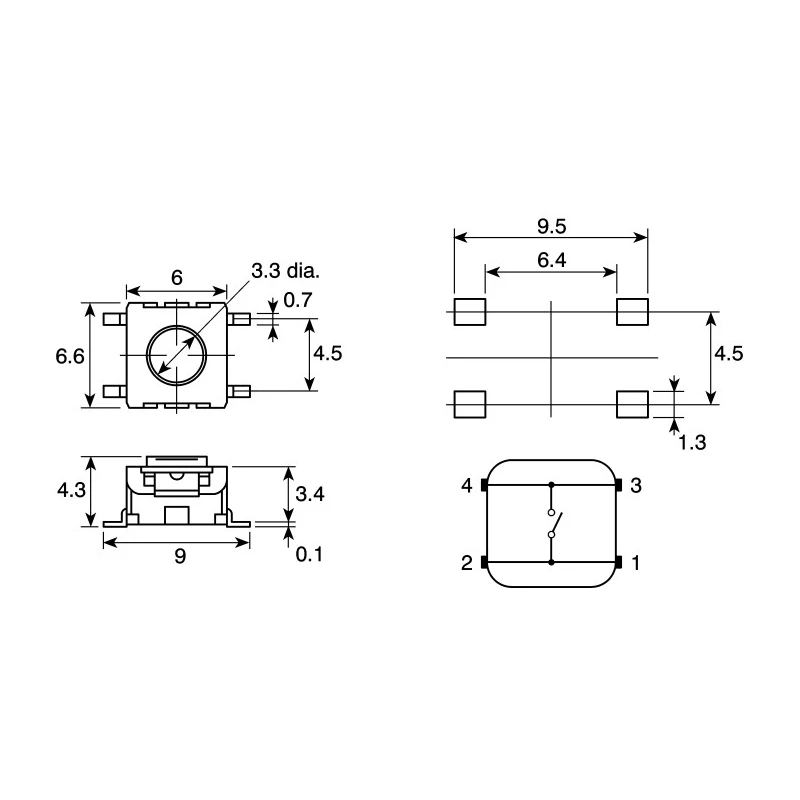

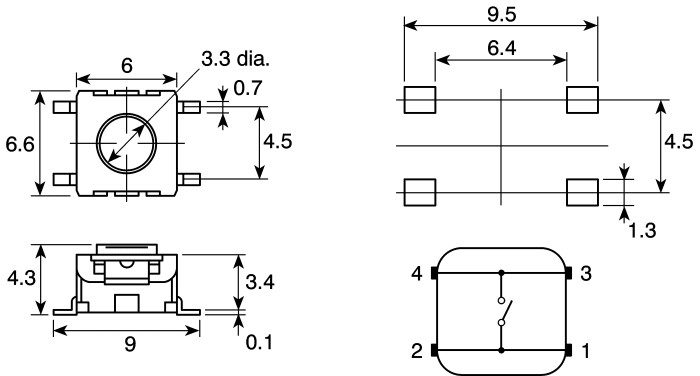

- Compact size with 6 mm length, 6.6 mm width, and 4.3 mm height dimensions.
- Operates at 24 V dc contact voltage supporting 50mA switch contact current.
- Rated IP67 for protection against dust and immersion, ensuring durability.
- Operating force is 1.57N, providing tactile feedback for user interaction.
- Mechanical life expectancy of up to 500,000 operations enhances reliability.
- Sealed construction is suitable for reflow soldering with max temperature of 235°C for 10 seconds.
- Dielectric strength exceeds 500 Vac for 1 minute with insulation resistance over 100 MΩ at 250 V dc.
- Designed to withstand operating temperatures from -25°C to 70°C.
Product Description
Omron B3S-1000 IP67 Cream Tactile Switch Button is a surface-mount momentary switch designed for durable and reliable tactile feedback in various electrical and automation applications. Featuring a compact form factor of 6 mm length, 6.6 mm width, and 4.3 mm height, this switch offers excellent protection with its IP67 sealing, making it suitable for harsh environments and immersion washing after soldering.
The switch operates at 24 V dc contact voltage and supports a switch contact current of 50mA, making it ideal for low power control circuits. Its SPST (Single Pole Single Throw) normally open contact configuration ensures straightforward switching functionality. The actuator length is 0.55 mm with a cream-colored button style providing a tactile, ergonomic user experience with an operating force of 1.57N.
This tactile switch supports up to 500,000 mechanical operations, offering long-lasting performance in industrial, automation, and electronics manufacturing settings. The sealed construction is compatible with reflow soldering processes up to 235°C for a maximum of 10 seconds, aiding in efficient assembly.
The switch boasts robust electrical properties including dielectric strength greater than 500 Vac for 1 minute and insulation resistance exceeding 100 MΩ at 250 V dc, ensuring safety and reliability in electrical circuits. It functions reliably within a temperature range of -25°C to 70°C.
Applications include use in control panels, keyboards, keypad switches, and other electronic devices where dependable tactile feedback is essential. Designed with compliance to RoHS standards, it is suitable for environmentally conscious manufacturing.
Compact dimensions support integration into space-limited designs. IP67 rating for dust-tight and waterproof performance. Long mechanical life suitable for industrial use. Reliable momentary tactile feedback. Compatibility with surface-mount assembly and reflow soldering.
Choose the Omron B3S-1000 Tactile Switch for high-quality, durable performance in demanding electrical and automation applications. Explore more tactile and keypad switches in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a compact size with dimensions of 6 mm in length, 6.6 mm in width, and 4.3 mm in height.
It operates at a contact voltage of 24 V dc and supports a switch contact current of 50 mA.
The switch has an IP67 rating, providing protection against dust and immersion in water.
The mechanical life expectancy of the B3S-1000 is up to 500,000 operations, enhancing its reliability in use.
It functions reliably within a temperature range of -25°C to 70°C.
This switch features an SPST (Single Pole Single Throw) normally open contact configuration.
The operating force for the B3S-1000 is 1.57 N, providing tactile feedback for user interaction.
The switch can withstand a maximum reflow soldering temperature of 235°C for up to 10 seconds.
The actuator length is 0.55 mm, designed for ergonomic user experience.
Yes, this tactile switch is designed in compliance with RoHS standards.
It is designed for surface mounting, making it suitable for various applications.
This model is suitable for use in control panels, keyboards, and other electronic devices requiring tactile feedback.
