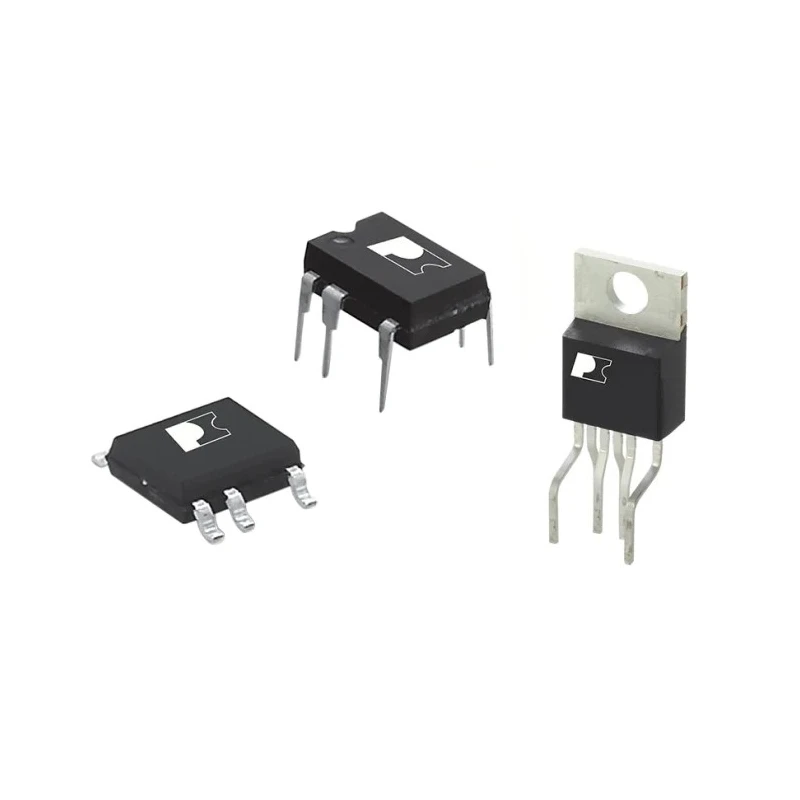

Power Integrations AC/DC Converter 3 A, 15 W, 7-Pin DIP Package, Flyback Topology TNY266PN

Power Integrations TNY266PN is a high-performance AC/DC converter designed for efficient power management in electronic applications. This device integrates a 700 V power MOSFET, oscillator, and protection features onto a compact monolithic die packaged in a 7-pin DIP format, ideal for through-hole mounting.

The converter operates over a wide input voltage range of 85 V to 265 V AC and provides a maximum output current of 3 A with an output power rating of 15 W. The device uses a flyback topology, suitable for isolated power supplies commonly used in industrial, commercial, and consumer electronics.

Operating at a switching frequency of 132 kHz, the TNY266PN allows for a reduction in transformer size and enhances overall system efficiency. It includes features such as auto-restart protection against short circuits and open loop faults, programmable line under-voltage detection to prevent power glitches, and frequency jittering to reduce electromagnetic interference (EMI) by approximately 10 dB.

Its robust design supports minimum operating temperatures of -40°C and maximum temperatures up to 150°C, ensuring reliability across a broad range of environments. The compact DIP package measures 9.83 mm in length, 6.6 mm in width, and 3.68 mm in height, enabling use in space-constrained PCB layouts.

High integration with 700 V power MOSFET and oscillator on-chip. Auto-restart function for fault protection reduces external components. Line under-voltage detect minimizes power on/off glitches. Frequency jittering reduces EMI and the need for filtering components.

High operating temperature range up to 150°C suitable for industrial applications. Compact DIP package for through-hole installation. Flyback topology for isolated power supply design.

This AC/DC converter is suitable for use in power management ICs for industrial equipment, power supplies, lighting controls, and other electronic devices requiring reliable and efficient power conversion.
