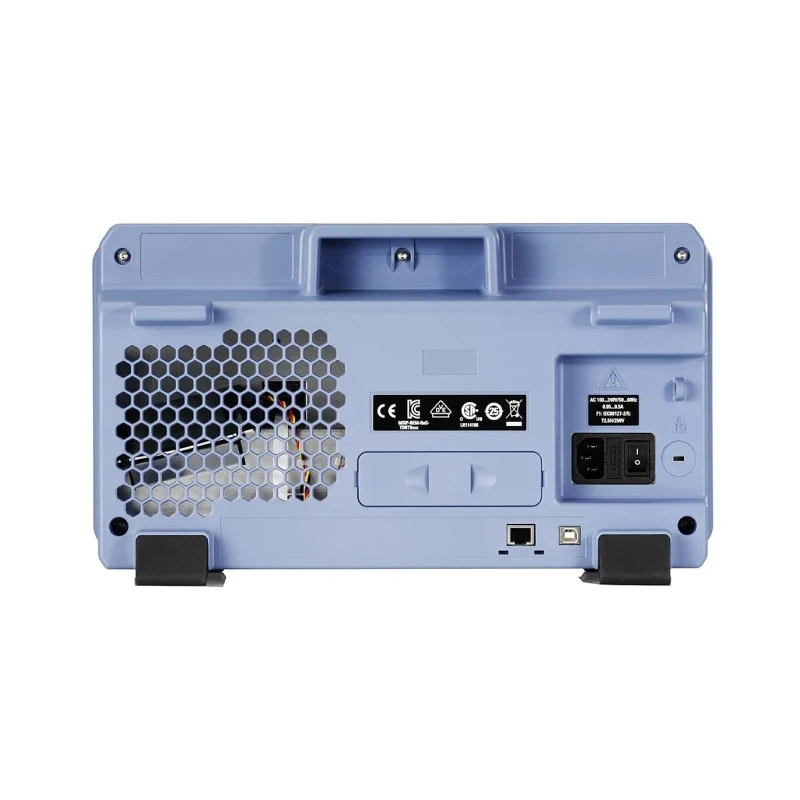

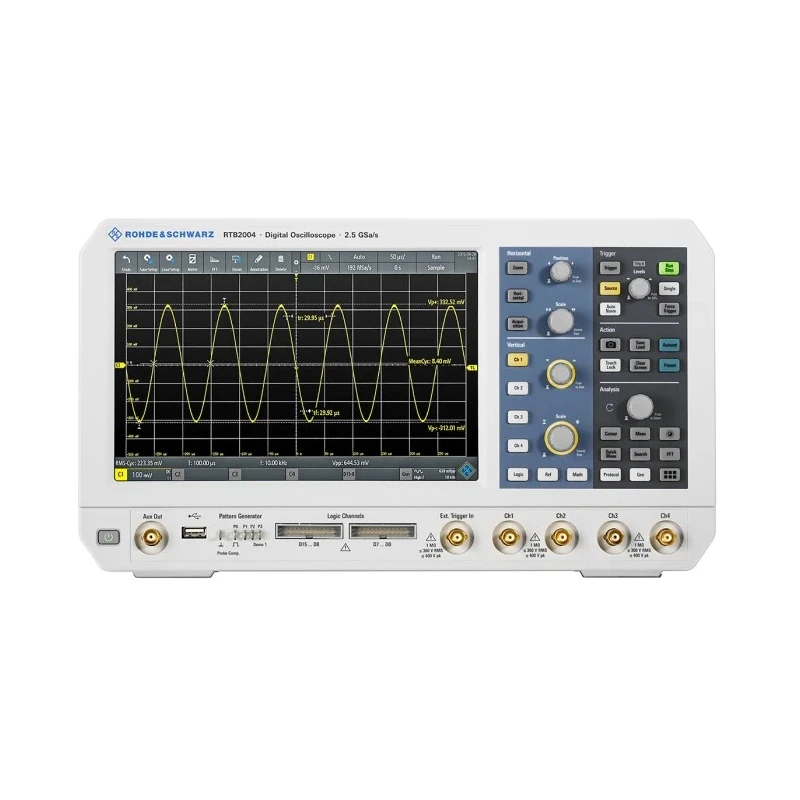

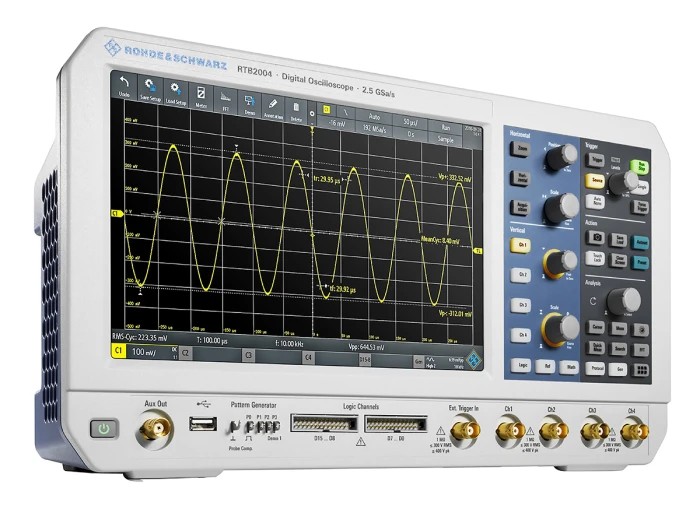

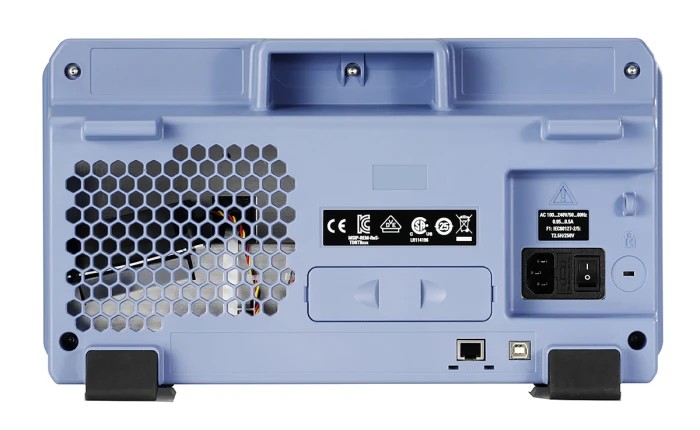

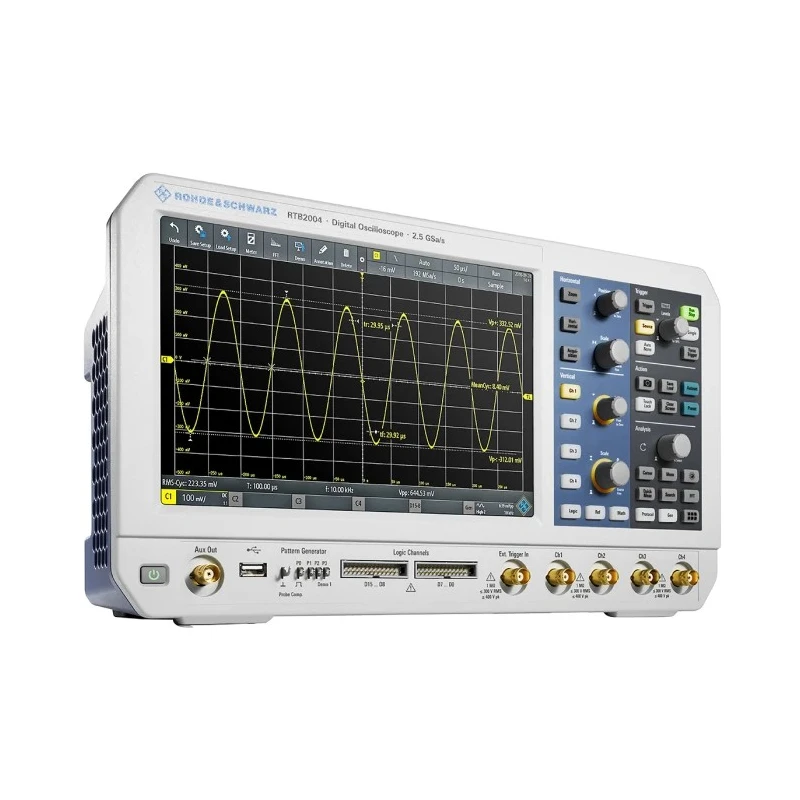

Rohde & Schwarz 100 MHz Bench Mixed Signal Oscilloscope 16 Channel, 10.1 Inch Touchscreen RTB2000

Rohde & Schwarz introduces the RTB2K-104M, a 100 MHz bench mixed signal oscilloscope designed to meet the rigorous demands of industrial, laboratory, and embedded system testing environments. Featuring a high precision 10-bit ADC and a vibrant 10.1 inch WXGA capacitive touchscreen with 1280 x 800 pixel resolution, it delivers intuitive operation and superior waveform clarity.

The RTB2000 series oscilloscopes combine an extensive memory depth of 10 Mpoints standard and 20 Mpoints interleaved options with a segmented memory capacity reaching 160 Msamples with history. This enables detailed analysis and reliable long-term data acquisition for complex measurements.

Interfacing versatility is ensured through support for common serial protocols including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, alongside USB connectivity. The vertical sensitivity range from 1 mV/div to 5 V/div and a minimum time base of 1 ns/div allow precise signal capture, complemented by a rise time of 5 ns.

This oscilloscope also includes multifunctional test tools such as a logic analyser, protocol analyser, waveform and pattern generator, and digital voltmeter, allowing comprehensive diagnostics within a single instrument. Safety ratings up to CAT IV and a supply voltage of 400 V ensure safe operation under varied lab conditions. The unit measures 152 mm in width and depth, with a height of 220 mm, fitting comfortably into most work environments.

Perfectly suited for education, embedded design troubleshooting, production testing, and service departments, the RTB2K-104M enhances productivity and precision. Multilingual support and an educational mode providing manual control options make learning and development more effective.

Equipped with 10-bit vertical resolution ADC and high memory depth for advanced signal capturing. Large high-resolution capacitive touchscreen enabling gesture control and rapid menu navigation. Segmentation memory for storing up to 160 Msamples with history function.

Supports multiple communication interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB. Integrated logic analyser, protocol analyser, waveform generator, and digital voltmeter. Safety certifications for CAT II, CAT III, and CAT IV voltage categories up to 400 V.

Compact compact design with dimensions 152mm x 152mm x 220mm for convenient lab use. Ideal for industrial, laboratory, educational, and embedded application testing. Explore more Oscilloscopes and measurement instruments at EnvMart for premium quality and reliability.
