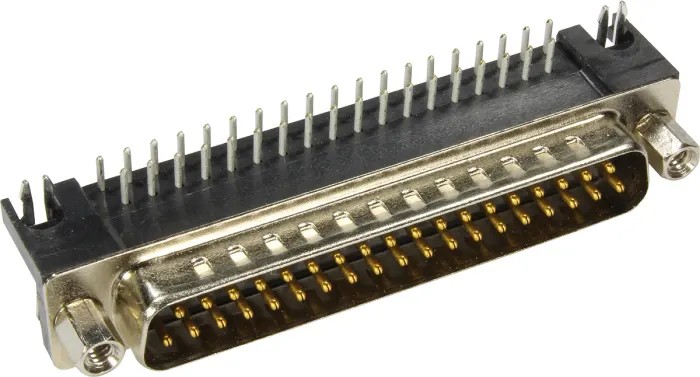

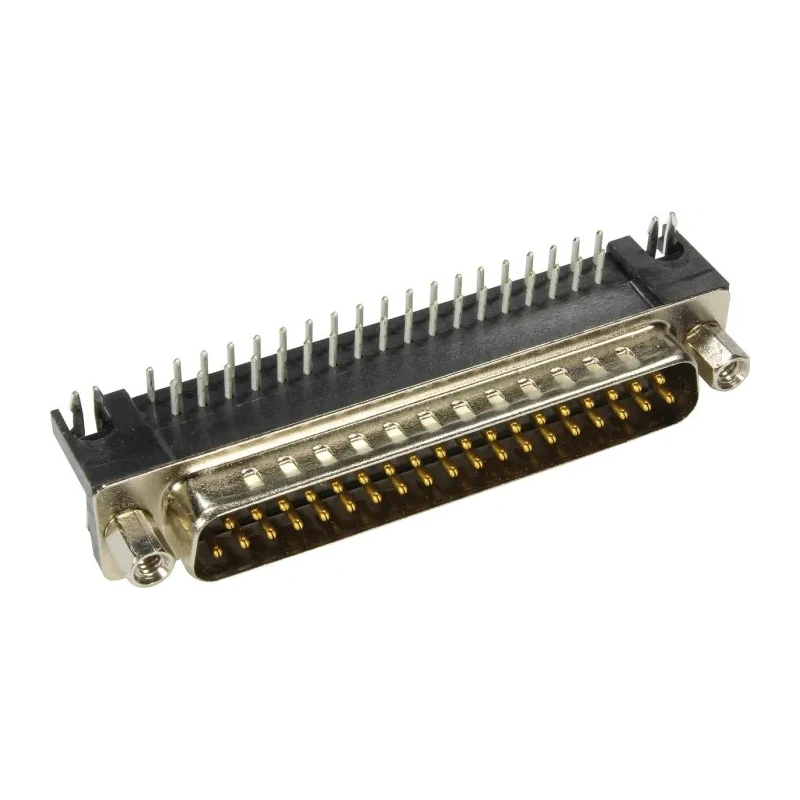

HARTING D-Sub 25 Way Right Angle Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Male 09683635813

HARTING 09683635813 D-Sub 25 Way Right Angle Through Hole D-Sub Connector provides a robust and reliable connection solution for electronic circuitry and industrial applications. Featuring 25 contacts, this right angle D-Sub connector facilitates space-saving PCB layout while ensuring excellent electrical performance with a current rating of 6.5A.

The fibreglass reinforced thermoplastic housing offers high mechanical strength and long-term durability, suitable for demanding environments with operating temperatures ranging from -55°C to 125°C. The connector utilizes a through hole mount type complemented by an industry-standard 4 to 40 UNC screw lock that secures the connector firmly in place, preventing disconnection under vibration or mechanical stress.

This male connector features copper alloy contacts with steel plating and solder termination type, ensuring stable and corrosion-resistant electrical contacts. Its robust metal shell further enhances mechanical protection and provides shielding against electromagnetic interference (EMI), critical for sensitive electronics and high-frequency applications.

The inclusion of an extra grounding pin and the U.S. footprint design make it well-suited for industrial, manufacturing, electronics assembly, and repair applications where durability and signal integrity are paramount. This connector meets the needs of electronic components assemblies requiring high reliability.

For engineers and technicians, the 09683635813 model represents a trusted component choice within the Harting D-Sub Connector series, known for consistent quality and performance. The connector features 25 contacts to ensure reliable electrical connections.

Rated for a current of 6.5A suitable for various electronic applications. Right angle orientation allows compact PCB mounting in limited spaces. Mount type is through hole with 4 to 40 UNC screw lock for secure fastening.

Constructed with fibreglass reinforced thermoplastic housing for exceptional durability. Operating temperature range from -55°C to 125°C ensures performance in harsh environments. Solder termination type provides strong and stable contact points.

Copper alloy contact material with steel plating guarantees excellent conductivity and wear resistance. Male connector gender with a U.S. footprint and extra grounding pin enhances shielding and signal integrity. Robust metal shell design for protection against mechanical stress and EMI interference.
