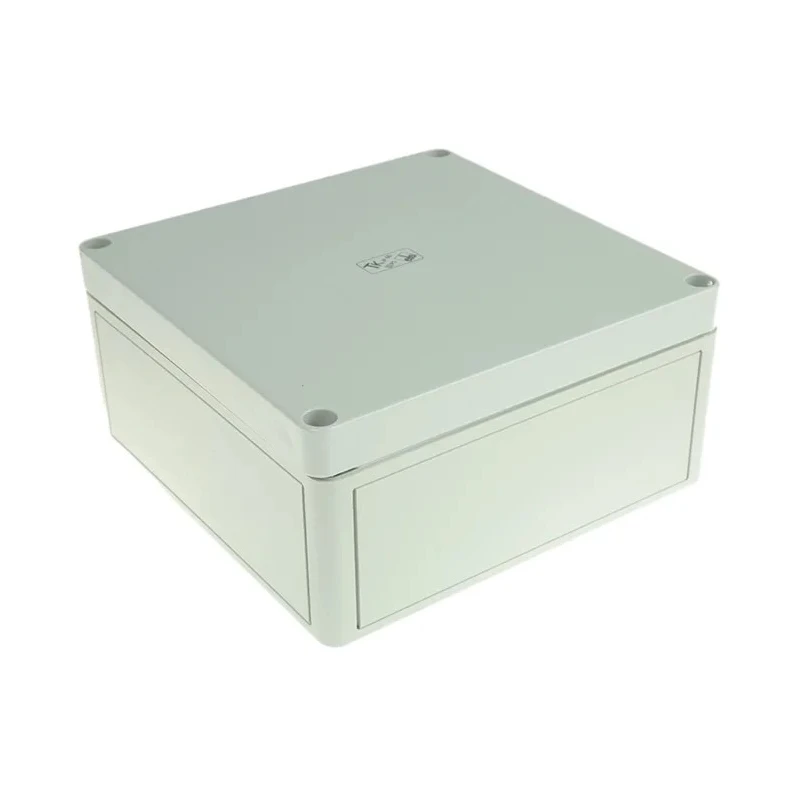

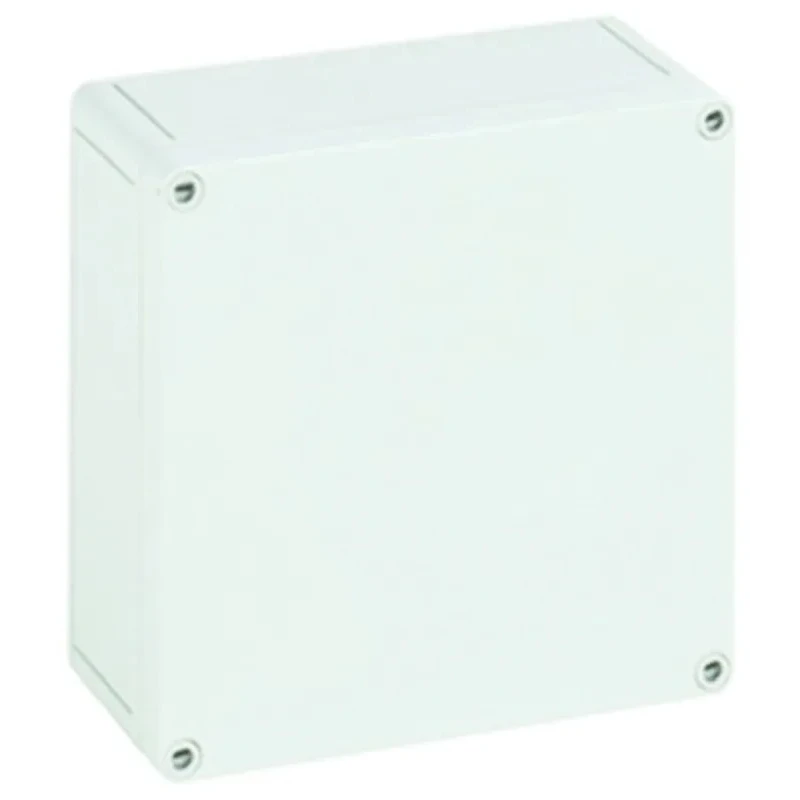

Spelsberg TK PS Series Grey Lid Polystyrene Electrical Enclosure IP66 IK07 90mm x 182mm x 180mm 11040701

Spelsberg 11040701 TK PS Series is a grey polystyrene electrical enclosure engineered with a grey lid and an IP66 rating, providing superior dust and water resistance. This enclosure is ideal for the secure housing of electrical, electronic, and pneumatic components within industrial, automation, control systems, and laboratory environments. The robust polystyrene construction ensures resistance to many acids and alkalis and meets stringent impact and flammability standards, including IK07 and UL94 HB.

This enclosure features precise external dimensions of 90mm height, 182mm length, and 180mm width. The integrated polyurethane cover gasket ensures thorough sealing, while the absence of knockouts and pre-embossing maximizes flexibility for custom installations. All cover screws are polyamide 6 fiber glass reinforced, offering added mechanical strength.

With an operating temperature range of −25°C to +40°C, the unit is suitable for various environmental conditions, though it is primarily recommended for indoor installations. Its design is fully halogen-free, silicone-free, and free from heavy metals and PVC, making it ideal for applications where strict material compliance is required.

The enclosure supports wall mounting through the provision of through holes below the lid fixing screws and surface mounting using bottom base sealable knockouts (sealing plugs provided). Rated insulation voltage reaches up to 1000 V DC and 690 V AC, confirming its suitability for demanding electrical applications. The unit's flammability is rated VDE 0471, UL94, 650°C / HB, providing an extra layer of safety to critical installations.

Use cases include industrial machinery panels, automation controls, sensor terminal boxes, laboratory equipment housing, and commercial installations where IP66 protection and reliable enclosure performance are essential. Its unshielded design allows flexible adaptation to a variety of low-voltage electrical wiring needs.
