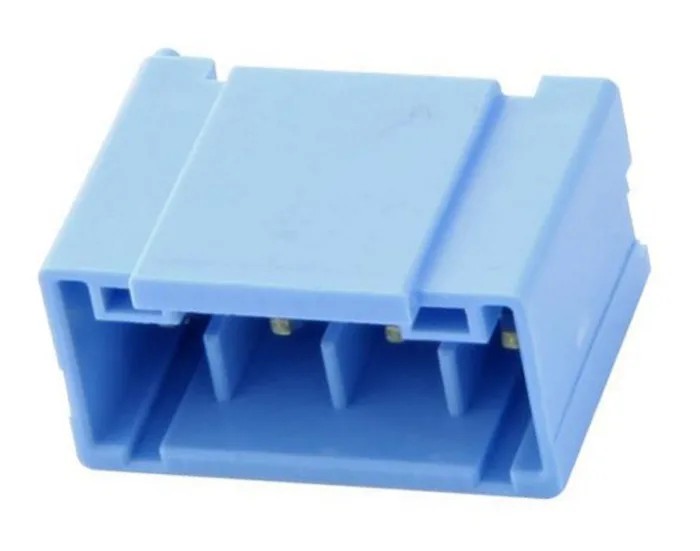

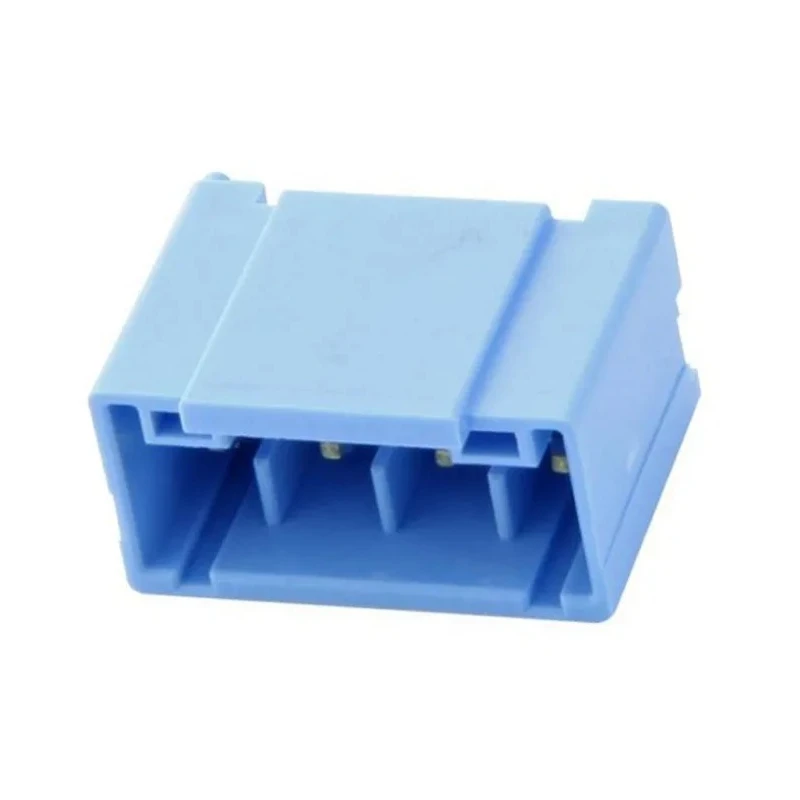

JST PSI Series Straight Through Hole PCB Header 10 Contacts 4 mm Pitch 1 Row Shrouded B10B-PSILE-1(LF)(SN)

JST B10B-PSILE-1(LF)(SN) PSI Series Straight Through Hole PCB Header is a precision electronic connector designed primarily for wire-to-board applications. Operating with a 4 mm pitch and a single-row configuration, this PCB header ensures reliable and secure connections suitable for industrial electronics.

The fully shrouded design enhances safety by offering finger-friendly handling and protection against mismating, supplemented by locking mechanisms that firmly secure mated connections. The housing is fabricated from fibreglass reinforced polybutylene terephthalate, providing robust mechanical strength and resistance to wear under typical operating conditions.

Equipped with 10 male copper alloy contacts, each plated with tin, this header guarantees dependable electrical conductivity at rated currents of up to 12 amperes and voltage handling up to 300 volts. The through-hole mounting style is complemented by PCB pegs that assist in precise placement and additional mechanical stability on printed circuit boards.

Designed to tolerate operating temperatures ranging from -25°C to 85°C, this connector performs effectively across a variety of environmental conditions. Its colour-coded keying system prevents incorrect insertion and enhances installation efficiency for assembly in complex electronic systems.

Wire-to-board connector with straight orientation and 10 male contacts. Fully shrouded with locking mechanism for secure mating. Robust fibreglass reinforced polybutylene terephthalate housing. Copper alloy contacts plated with tin for reliable conductivity.

Through hole mount with PCB pegs for stability. Operating temperature from -25°C to 85°C ensures wide environmental compatibility. Rated 12A current and 300V voltage for electronic circuits. Colour coded keying prevents misalignment.

Manufactured in Malaysia maintaining high-quality standards.

This PCB Header is ideal for assembly in electronic manufacturing, industrial equipment, communications devices, and various electronic control systems. It supports applications requiring secure and reliable electrical connections under diverse operational conditions.
