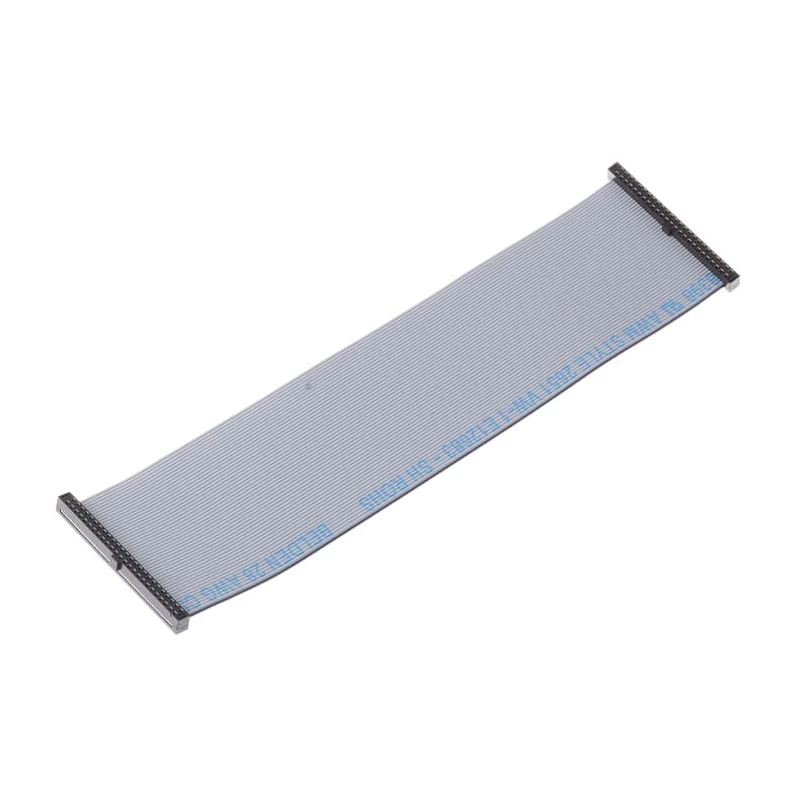

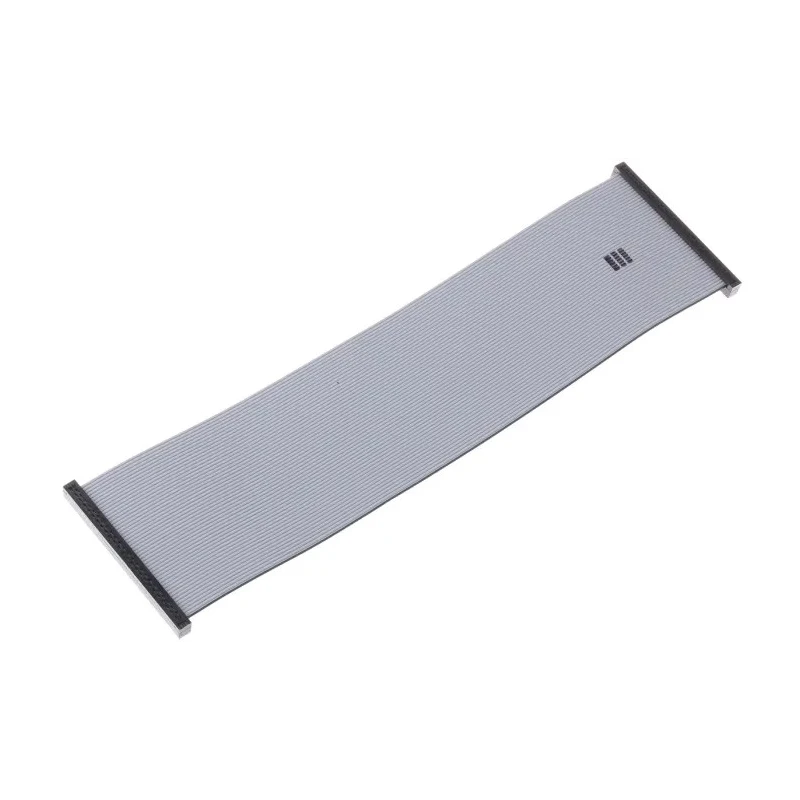

Samtec TCSD Series Flat Ribbon IDC Socket Cable Assembly 200 mm Length TCSD-25-D-08.00-01-N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Model | TCSD-25-D-08.00-01-N |
| Cable Length | 200mm |
| Series | TCSD |
| Cable Type | Flat Ribbon |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | RoHS Compliant, UL |
| Connector Type A | TCSD IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
Key Features
- Constructed with 28 AWG 7/36 stranded tinned copper wires for excellent conductivity.
- Features a flat ribbon PVC-insulated cable with 2.00mm pitch double row female sockets at both ends.
- Incorporates gold-plated Tiger Eye IDC contacts with a polarizing notch for accurate connector mating.
- Durable polyvinyl chloride (PVC) grey jacket protects the cable against environmental factors.
- Compliant with RoHS and UL standards ensuring safety and environmental requirements.
- Suitable for wire-to-board applications requiring reliable socket-to-socket ribbon cable assemblies.
- Compatible with mating connectors from series such as TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM.
Product Description
Samtec TCSD-25-D-08.00-01-N represents a high-quality flat ribbon IDC socket cable assembly of the TCSD series, designed for precise and reliable wire-to-board connections in electronics and electrical industrial applications. The cable assembly has an exact length of 200 mm, featuring a 28 AWG 7/36 stranded tinned copper conductor construction with a robust polyvinyl chloride (PVC) grey jacket.
The assembly utilizes 2.00 mm pitch double row female sockets at each end, fitted with Tiger Eye IDC gold-plated contacts, which are engineered for superior contact reliability and signal integrity. A polarizing notch is included in the design to ensure accurate and error-free mating with compatible connectors.
Compliance with RoHS requirements and UL certification assures safety conformity and environmental responsibility. This flat ribbon cable is highly suitable for industrial, laboratory, manufacturing, and automation environments where durable, precise ribbon cable assemblies are critical. Users will find compatibility with various Samtec mating header series such as TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM, facilitating a broad range of interface solutions.
Constructed with 28 AWG stranded tinned copper conductors. 2.00 mm pitch double row female IDC socket connectors on both ends. Gold-plated Tiger Eye contacts for reliability and low resistance. Grey PVC jacket provides mechanical protection and flexibility.
RoHS compliant and UL approved. Length of 200 mm for tailored application requirements. Compatible with multiple Samtec header series for versatile usage. Ideal for use in electronics & electrical sectors requiring high-performance ribbon cable assemblies for wiring and signal applications.
For more products in the Ribbon Cable category, explore EnvMart's extensive curated collection from leading brands including Samtec.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TCSD-25-D-08.00-01-N cable assembly has a length of 200 mm.
This model features 2.00 mm pitch double row female IDC socket connectors at both ends.
The cable jacket is made of polyvinyl chloride (PVC), which provides mechanical protection and flexibility.
The conductors are constructed with 28 AWG 7/36 stranded tinned copper for excellent conductivity.
Yes, it is RoHS compliant and UL approved, ensuring safety and environmental standards are met.
It is suitable for wire-to-board applications in industrial, laboratory, manufacturing, and automation environments.
The assembly incorporates gold-plated Tiger Eye IDC contacts for superior contact reliability and signal integrity.
The jacket of this cable assembly is grey in color.
The TCSD-25-D-08.00-01-N cable assembly is manufactured in India.
This cable assembly is part of the TCSD series.
Yes, it is compatible with various Samtec mating header series such as TMM, TMMH, STMM, MMT, TW, MTMM, EHT, ETMM, and ZSTMM.
The polarizing notch ensures accurate and error-free mating with compatible connectors, enhancing connection reliability.
