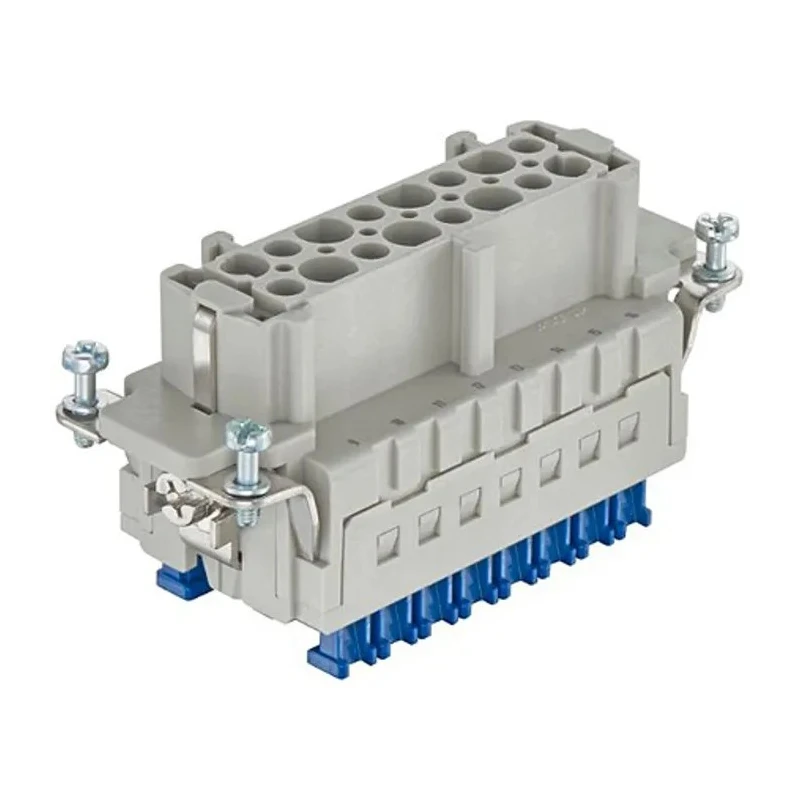

Harting Heavy Duty Power Connector Insert 16A 500V Panel Mount Female 32 Contacts Han ES Press 09330162788
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Harting |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han ES Press |
| Thread Size | M3 x 10 |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 32 |
| Contact Plating | Silver |
| Number of Contacts | 32 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Features cage clamp terminations for quick and easy wiring.
- Designed with vibration proof construction to ensure reliable performance.
- Accepts wire sizes from 0.14 mm² up to 2.5 mm² for flexible connection options.
- Silver plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Compatible with various Han ES Press series hoods and housings.
- Panel mount installation with M3 x 10 thread size for secure fixing.
- Offers multiple connection possibilities including use with ES Press plug in jumpers.
- Manufactured in Germany to high quality standards.
Product Description
Harting 09330162788 Heavy Duty Power Connector Insert is a female modular insert designed for industrial power connector applications with a current rating of 16A and voltage rating of 500V. It features 32 contacts arranged in 2 rows with a panel mount type installation suitable for robust electrical connections.
The connector includes cage clamp terminations which enable quick, secure, and tool-free wiring, enhancing installation efficiency. Its vibration proof design ensures stable and reliable connections even in challenging industrial environments.
Constructed from high-quality copper alloy with silver plating on the contacts, it guarantees excellent conductivity and resistance to corrosion, making it durable for long-term use. It accepts wire sizes ranging from 0.14 mm² to 2.5 mm², offering versatility for various wiring needs.
This insert is compatible with an array of Han ES Press series components including Han B, Han M, Han EMC, Han Easy Hood, and Han HPR hoods and housings, making it adaptable to multiple configurations. Optional plug-in jumpers facilitate bridging contacts and enable star and delta motor connections.
Features cage clamp terminations for fast and reliable wiring. Vibration proof design for durability in industrial applications. Wide wire size range from 0.14 mm² to 2.5 mm² supported. Silver plated copper alloy contacts for superior electrical performance.
Compatible with multiple Han ES Press series housings and hoods. Panel mount type with secure M3 x 10 threaded fixing. Supports plug-in jumpers for flexible contact bridging. Ideal for heavy duty power connector systems in demanding environments.
Manufactured in Germany ensuring premium quality.
This product is essential for industries requiring reliable and durable power connections, including manufacturing plants, automation systems, and heavy machinery controls. It supports modular and flexible assembly approaches adhering to high standards.
Explore more Harting Heavy Duty Power Connector Inserts on EnvMart for reliable and efficient industrial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert has a current rating of 16A and a voltage rating of 500V.
It accepts wire sizes ranging from 0.14 mm² to 2.5 mm², providing flexibility for various wiring needs.
The insert features 32 contacts arranged in 2 rows.
It is designed for panel mount installation with an M3 x 10 thread size for secure fixing.
The contacts are made of copper alloy and are silver plated to enhance conductivity and corrosion resistance.
Yes, it is compatible with various Han ES Press series components including Han B, Han M, Han EMC, Han Easy Hood, and Han HPR hoods and housings.
It features cage clamp terminations, allowing for quick, secure, and tool-free wiring.
The orientation of this connector insert is straight.
It has a vibration proof design, ensuring stable and reliable connections in challenging industrial environments.
This connector insert is manufactured in Germany.
It is essential for industries requiring reliable and durable power connections, including manufacturing plants, automation systems, and heavy machinery controls.
Yes, it supports optional plug-in jumpers for bridging contacts and enabling star and delta motor connections.
