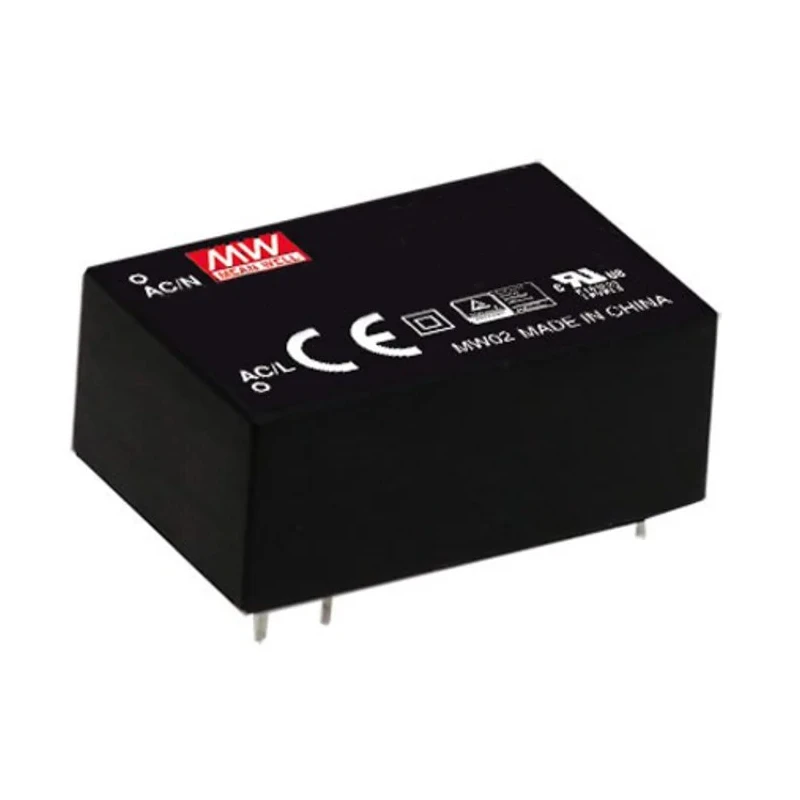

MEAN WELL Switching Power Supply 9V DC 2W PCB Mount IRM-02-9

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switching Power Supply 9V DC 2W PCB Mount IRM-02-9

Name: MEAN WELL Switching Power Supply 9V DC 2W PCB Mount IRM-02-9
Brand: MEAN WELL
SKU: 144854
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Power	2W
Efficiency	72%
Length	33.7mm
Model	IRM-02-9
Depth	15mm
Gross Weight	19g
Width	22.2mm
Mount Type	PCB
EMC Immunity	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, heavy industry level (surge L-N: 1 KV), criteria A
Series	IRM
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Maximum Input Voltage	430, 305V dc
Maximum Output Voltage	9V dc
SMPS Output Current	222mA
Minimum Input Voltage	85V ac
EMC Emission	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

Key Features

Compact and efficient switching power supply designed for PCB mounting.
Produces a 9V DC output voltage with 222mA output current.
Wide input voltage range from 85V AC to 305V AC supports universal power sources.
Built with a phenolic case and fully potted silicone for vibration, dust, and moisture resistance.
Includes overvoltage, overload, and short circuit protection for enhanced safety.
High efficiency up to 77% and low no-load power consumption below 0.075W reduce energy waste.
Compliance to global safety and EMC standards ensures reliable operation.
Operating temperature range from -30°C to 85°C suits harsh industrial environments.

Product Description

MEAN WELL IRM-02-9 is a 2 W single output encapsulated AC-DC switching power supply designed for PCB mounting. It features a compact phenolic case and full silicone potting, providing robust vibration resistance up to 5G, and protection against dust and moisture while aiding heat dissipation.

The unit operates over a wide universal input range from 85 V AC to 305 V AC and outputs a stable 9 V DC at 222 mA, making it suited for diverse global applications. The power supply maintains high efficiency up to 77% with a low no-load power consumption below 0.075 W, contributing to energy savings.

The IRM-02-9 incorporates multiple safety protections including overvoltage, overload, and short circuit safeguards. It conforms to safety standards UL 60950-1, TUV EN 60950-1, and EMC regulations EN55022 Class B, among others, ensuring reliable and safe usage in industrial and commercial environments.

Its Class II isolation and built-in EMI filtering components minimize electromagnetic interference, making it ideal for sensitive electronic devices and automation equipment.

The operating temperature range from -30°C to 85°C enables performance in demanding industrial conditions. Typical applications include hand-held electronics, factory automation systems, mechanical equipment, and industrial electrical apparatus.

Compact and efficient PCB mountable power supply. Wide universal AC input voltage range of 85V AC to 305V AC. Stable 9 V DC output voltage with 222 mA current. Robust design with phenolic casing and silicone potting for environmental protection.

Multiple safety protections: overvoltage, overload, and short circuit. Compliance with global safety and EMC standards. Low power consumption and high efficiency up to 77%. Class II isolation and EMI filtering to reduce interference.

Wide operating temperature range supporting harsh environments. Suitable for industrial, electronic, and automation applications.

This MEAN WELL IRM-02-9 switching power supply is an ideal solution for customers seeking reliable, compact, and efficient power conversion in industrial and electronic designs. Explore more power supplies and switching components on EnvMart for comprehensive industrial solutions.
