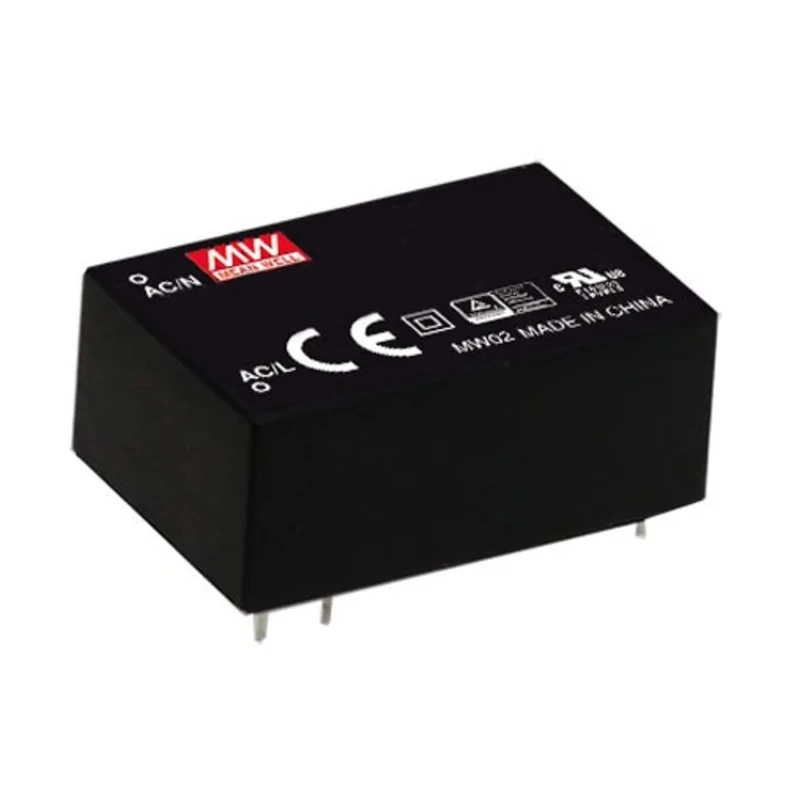

MEAN WELL IRM-02-15 Encapsulated Switching Power Supply 15V DC, 2W, 430V DC Input IRM-02-15

MEAN WELL IRM-02-15 is an encapsulated switching power supply model designed for compact and efficient power delivery with 15V DC output voltage and a power rating of 2 watts. This robust power supply supports a universal AC input ranging from 85V to 305V and a maximum DC input voltage of 430V, making it highly adaptable to various industrial electrical environments.

Constructed with a phenolic case and fully potted with silicone, the IRM-02-15 ensures superior resistance to vibration up to 5G, dust, and moisture, while improving heat dissipation. The unit is intended for PCB mounting and is particularly suitable for applications requiring a reliable power source in handheld electronics, factory automation systems, and mechanical equipment.

It features a highly efficient design with up to 77% efficiency and low no-load power consumption of less than 0.075W. The power supply provides a single output with 133mA current capacity and is protected against overvoltage, overload, and short circuits, ensuring long-term safety and durability.

Safety and electromagnetic compliance are rigorously met, with approvals including UL 62368-1, TUV BS EN/EN 62368-1, EAC TP TC 004, and IEC 62368-1 standards. Additionally, it meets EMC emission and immunity standards such as EN55022 Class B and EN61000 series, accommodating heavy industry surge requirements.

The IRM-02-15 power supply is cooled efficiently by free air convection, eliminating the need for additional cooling components. Its compact dimensions (33.7mm x 22.2mm x 15mm) and lightweight construction (19 grams) make it suitable for integration into panel-mounted or embedded electronic devices.

The unit belongs to the IRM series, known for its high reliability and industrial-grade quality. It complies with Class II isolation requirements, enhancing safety for end-user applications where electrical isolation and minimal interference are critical.

The compact encapsulated design ensures durability and resistance to environmental factors. Universal AC input supports a wide range of voltages from 85V AC to 305V AC and DC input up to 430V DC. High efficiency of up to 77% reduces energy loss and heat generation during operation.

Built-in protections include overvoltage, overload, and short circuit safeguards. Meets comprehensive international safety and EMC standards for global compliance.

This Switching Power Supply is widely applicable in industrial and manufacturing sectors, powering various hand-held devices and automation equipment, ensuring reliable performance in demanding use cases.
