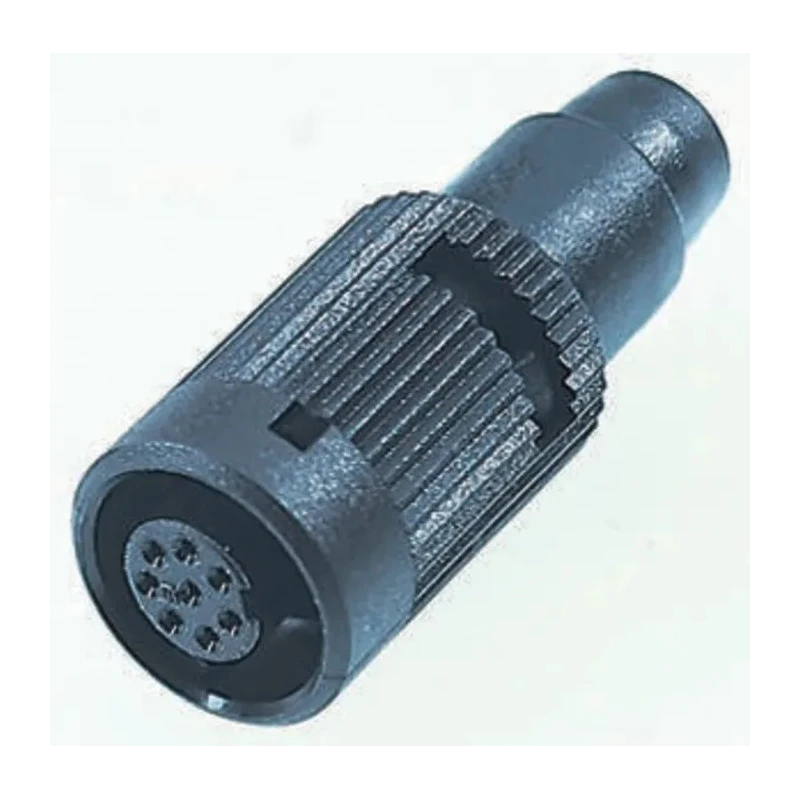

binder Circular Connector, Miniature Cable Socket, 12 Contacts, Female, IP40, 60V, 3A, Polyamide Housing 99.0650.02.12

binder 99.0650.02.12 Circular Connector, Miniature Cable Socket, 12 Contacts, Female, IP40 rated, 3 Amp, 60 Volt, Series 678, Housing Polyamide.

This miniature circular connector is designed primarily for cable mounting applications requiring reliable, robust connectivity in industrial and electronic environments. Featuring a 12-contact female socket with silver-plated bronze contacts, it provides excellent electrical conductivity and resistance to corrosion.

Its compact shell size of 19 mm and straight orientation facilitate easy mating with compatible components using the bayonet locking mechanism for secure connections. The connector supports continuous operation in temperatures ranging from -40°C to 85°C, making it appropriate for use in a wide range of industrial, manufacturing, or test measurement scenarios.

The polyamide housing material offers mechanical durability and insulation, making this connector suitable for equipment exposed to moderate mechanical stresses. While the IP40 ingress protection rating shields it from solid objects larger than 1 mm, it is not dust tight or water resistant, thus ideal for indoor use or environmentally controlled areas.

Termination by soldering ensures a stable connection while the cable jack dimensions (65 mm length and 18 mm diameter) allow fitting into tight spaces without compromising performance.

This product, made in Germany, complies with recognized industrial quality standards although it lacks formal certifications or approvals. It is particularly used in electronic components assemblies, power connectors for instrumentation, and circular connector applications.

Available as part of the binder 678 series, this connector complements industrial automation and control equipment, instrumentation panels, and communication devices requiring rugged, user-friendly cable interfaces.

This circular connector is designed for cable mounting with a bayonet mating type. It features a miniature connector size with 12 silver-plated bronze contacts for reliable connectivity. The socket has a female contact gender with a straight orientation for easy connection.

Operating temperature ranges from -40°C to 85°C suitable for various environments. The housing is made of durable polyamide ensuring mechanical robustness and insulation. The connector provides IP40 protection against solid objects but is not dust or waterproof.

It supports a maximum current of 3A and a voltage rating of 60V. Termination type is solder, ensuring secure contact attachment. Manufactured in Germany, meeting quality standards. The cable jack measures 65 mm length and 18 mm diameter for compact installation.
