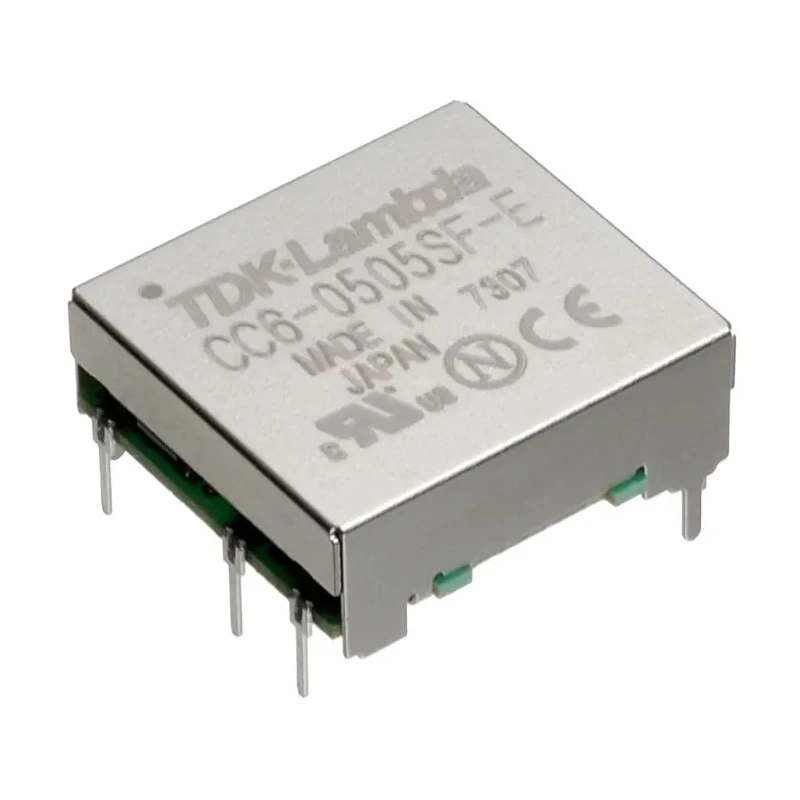

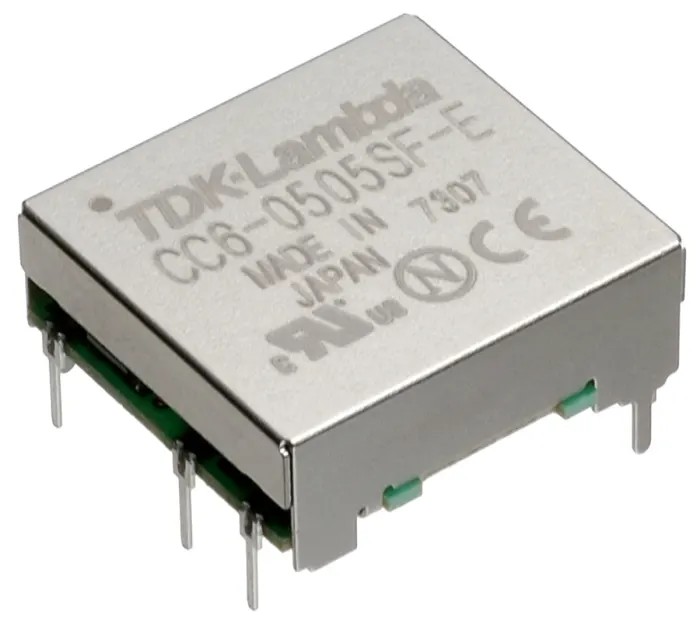

TDK-Lambda CC-E Series Dual Output Surface Mount DC/DC Converter 12V dc 0.2mA, 15V dc 0.25mA, 36V dc Input, 6 CC6-2412DR-E

TDK-Lambda CC6-2412DR-E is a high-quality dual output DC/DC converter from the CC-E Series designed to deliver 12V dc output at 0.2mA and 15V dc output at 0.25mA from a 36V dc maximum input voltage. This surface mount converter offers 6 watts of maximum output power efficiently with up to 86% efficiency while maintaining a compact form factor with dimensions 22.86mm length, 21.1mm width, and 8.8mm depth. Its metal case construction reduces radiated electromagnetic interference, ensuring cleaner signals in sensitive electronic circuits.

Designed for industrial and commercial applications, this DC/DC converter provides a stable isolated output voltage with an isolation voltage rating of 500V AC, supporting safety and noise immunity in harsh environments. It operates reliably over a wide temperature range from -40°C to 85°C, making it suitable for use in challenging conditions such as test equipment, broadcast systems, process controllers, and general-purpose industrial electronics.

The CC6-2412DR-E features a 7-pin surface mount package type, which facilitates easy PCB mounting while reducing the board area footprint. Its self-contained design requires no additional external components, simplifying system integrators' configuration work and accelerating project designs. This lightweight yet robust unit contributes to lighter final products and easier thermal management due to its high efficiency.

Applications for this DC/DC converter include powering sensitive measurement devices, industrial controllers, and systems requiring dual output voltages with high stability and isolation. This makes it ideal for domains such as laboratory instrumentation, automated manufacturing, telecommunications, and power supply conditioning.

Dual output voltage configuration at 12V dc and 15V dc for diverse applications. Supports input voltage range of 18V dc minimum to 36V dc maximum. Surface mount packaging minimizes PCB space usage. Operates efficiently up to 86% with a maximum output power of 6 watts.

Wide operating temperature range from -40°C to 85°C for reliable performance. Offers isolation voltage of up to 500V AC for safety and signal integrity. Compact metal case design effectively reduces electromagnetic interference.

Suitable for industrial, test, measurement, broadcast, and process control environments. Seven-pin package facilitating simple installation and system configuration. Robust series design optimized for lightweight and no external components required.
