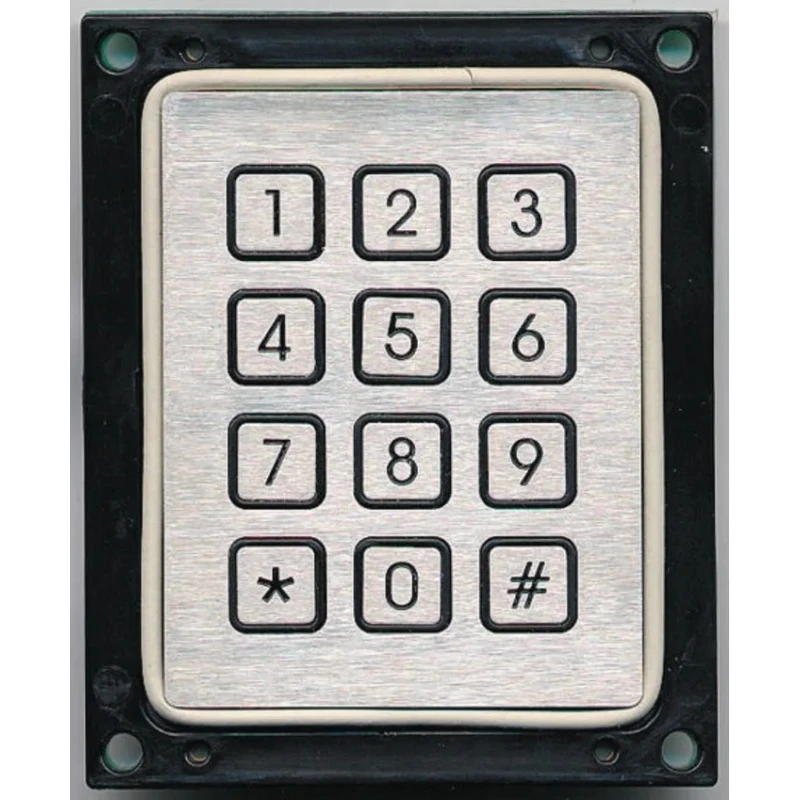

APEM Stainless Steel Keypad 12 Key IP65 Sealed 4x3 Layout

APEM T8P0120010001 stainless steel keypad is a robust 12-key input device with a 4x3 layout, rated IP65 for dust and water protection, suited for industrial, automation, and harsh environment applications.

This keypad series 8P model is built to withstand over a million mechanical actuations per key, ensuring long-term reliability. The keys are crafted from corrosion-resistant stainless steel, making the keypad durable in challenging settings.

Operating temperatures range from -20°C to +70°C, allowing usage in diverse climate conditions. An optional backlit version utilizes yellow LEDs, enhancing visibility particularly for partially sighted operators.

The keypad requires a panel cutout of 103mm height by 84mm width for mounting. Electrical contact ratings stand at 50mA at 24V DC with low contact resistance between 8 to 20 ohms for reliable signal transmission.

This product complies with RoHS standards and is manufactured in Italy. It is ideal for use in industrial automation systems, control panels, machinery interfaces, and other commercial and industrial equipment requiring reliable tactile input.

The keypad features a 4 by 3 layout with 12 stainless steel keys. Each key is rated for over 1,000,000 mechanical operations for durability. Sealed to IP65 standard to resist dust and water ingress. Operates reliably in temperatures ranging from -20°C to +70°C.

Backlit versions are available using yellow LEDs for improved visibility. Panel cutout dimensions are 103mm height by 84mm width for easy installation. Contact rating is 50mA at 24V DC with contact resistance between 8 to 20 Ohms.

Constructed from high-grade stainless steel actuator material for corrosion resistance. Suitable for industrial automation, control panels, and outdoor equipment. Made in Italy complying with RoHS standards. Discover a wide range of Keypad Switches at EnvMart suitable for industrial automation and electrical applications.
