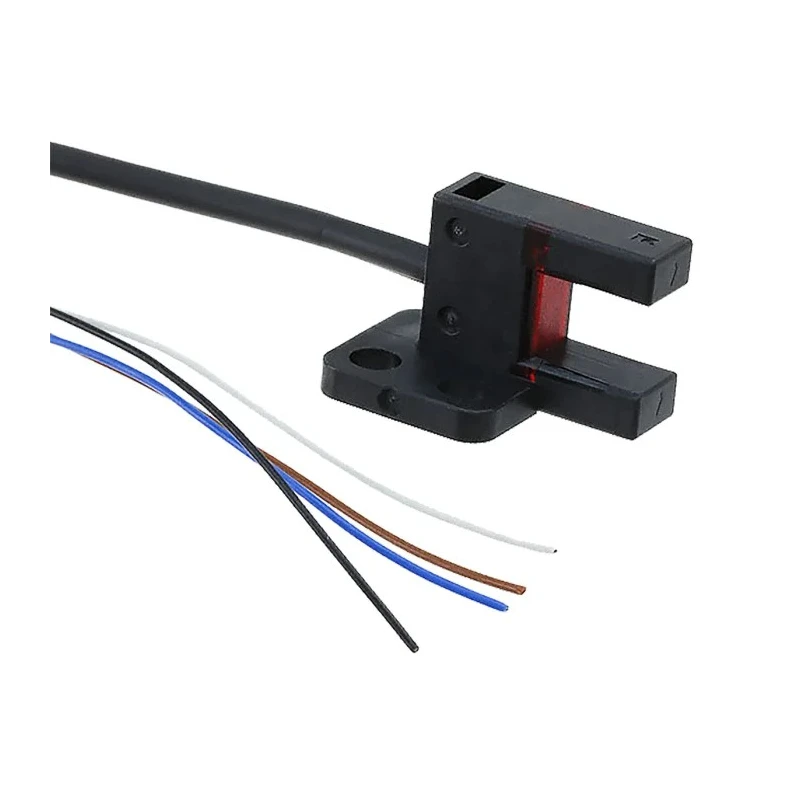

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range, PNP Output, IP64 Protection PM-R45-P-C3

Panasonic PM-R45-P-C3 Through Beam Photoelectric Sensor Fork style is designed for precise object detection in automation and control applications. Featuring a 6 mm detection range, this sensor is equipped with a PNP output type and boasts an IP64 ingress protection rating, ensuring resistance to dust and water splashes, suited for industrial and manufacturing environments.

The compact U-shaped housing integrates both emitter and receiver to enable a reliable through beam sensing method. The sensor incorporates a highly visible operating indicator visible from above and from the sides, facilitating quick operational status checks during installation and maintenance.

The design includes resin covering on critical stress points such as cable connections and internal circuits, enhancing durability and protecting against vibrations and impacts typical in machine operation.

The sensor supports reverse supply polarity protection, reverse output polarity protection, and output short circuit protection, safeguarding the sensor and connected systems from electrical faults.

Installation is simplified via chassis mount with standard M3 screws, allowing secure and stable mounting in a range of setups. The infrared light source enables accurate detection of opaque materials, enhancing sensor versatility across various applications.

Operating temperature range spans from -25°C to 55°C, accommodating many industrial settings. Electrical specifications include a maximum DC voltage of 24 V and a maximum current of 50 mA. The sensor adheres to IEC standards ensuring quality and reliability but lacks hazardous area certification.

Common industrial use cases include factory automation, packaging machinery, conveyor systems, robotics, and material handling where precise object and presence detection is critical.

Compact U-shaped micro sensor with integrated emitter and receiver in single housing. High visibility operating indicator for easy status monitoring from multiple angles. Durable resin protection on stress-prone cable and circuit sections prevents malfunction from vibration or impact.

Reverse polarity and short circuit protection to improve reliability and safety. Easy chassis mount installation with standardized M3 screws. Infrared light source ensures precise opaque materials detection. Wide operating temperature range from -25°C to 55°C suitable for various industrial environments.

Low operating current of 50 mA with maximum DC voltage 24V allows efficient power usage. Standard-compliant with IEC and no hazardous area certification. Explore more Panasonic sensors and Photoelectric Sensor solutions at EnvMart for your automation and control needs.
