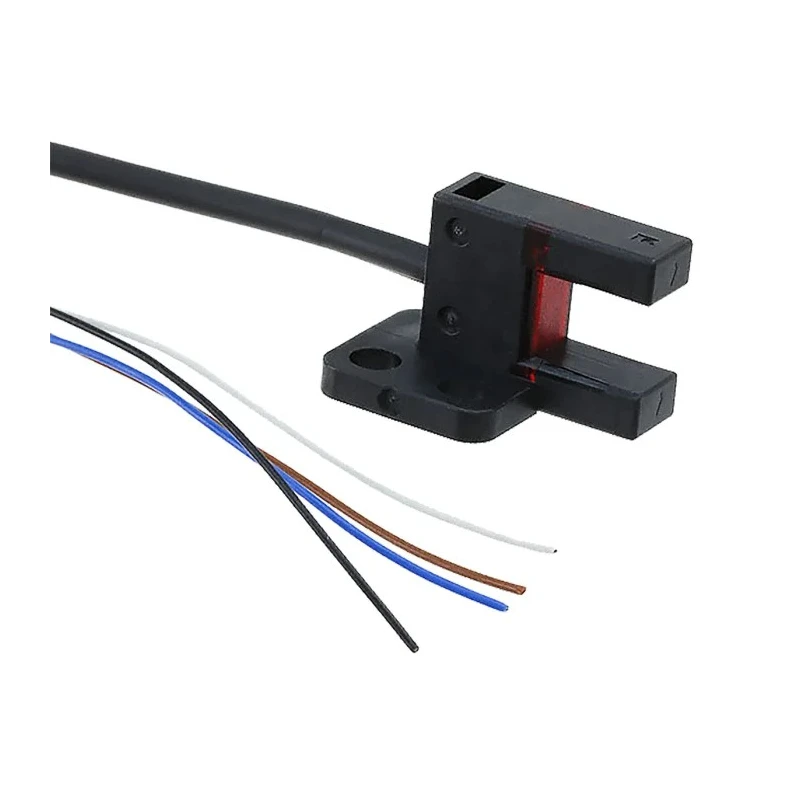

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range PNP Output IP64 PM-R45-P

Panasonic PM-R45-P Through Beam Photoelectric Sensor is a high-performance fork style sensor designed for industrial automation and control applications. Featuring a compact U-shaped chassis mount design, this sensor offers reliable detection of opaque materials with a precise 6 mm detection range. The sensor employs an infrared light source to deliver stable and accurate detection performance.

This sensor supports PNP output type with a terminal cable connection for ease of integration. It operates at a maximum DC voltage of 24V with output current up to 50 mA and provides protection against reverse supply polarity, output polarity, and output short circuits, ensuring long-lasting operation in demanding environments.

Operating efficiently within a temperature range of -25°C to 55°C and rated IP64 for ingress protection, the sensor is suitable for industrial and manufacturing applications where durability and reliability are essential. The polycarbonate and polybutylene terephthalate housing materials offer resistance against vibrations and impacts, providing enhanced mechanical protection.

The sensor features a quick response time of 20 to 80 microseconds and complies with IEC standards, making it suitable for automation and safety-critical control systems. The PM-45 series integrates emitter and receiver units within the compact U-shaped housing to save space and simplify installation.

Typical industrial uses include automation process control, material handling, packaging machines, and other factory automation systems. The fork style sensor design facilitates easy alignment and installation on machinery or production lines with M3 screw mounting options.

U-shaped compact sensor design for easy chassis mounting with M3 screws. Equipped with infrared light source for accurate opaque object detection. Wide operating temperature range from -25°C to 55°C ensures reliability. Robust polycarbonate and polybutylene terephthalate housing enhances durability.

Protection against reverse supply polarity, output polarity, and short circuit extends sensor life. High response speed with 20 to 80 microseconds response time. Output current capacity up to 50 mA for industrial control compatibility.

Chassis mount type facilitates secure installation in industrial settings. Complies with IEC standards ensuring quality and safety. Compact U-shaped housing integrates emitter and receiver for stable detection. Explore the wide range of Panasonic Photoelectric Sensors and sensors at EnvMart for advanced industrial automation solutions.
