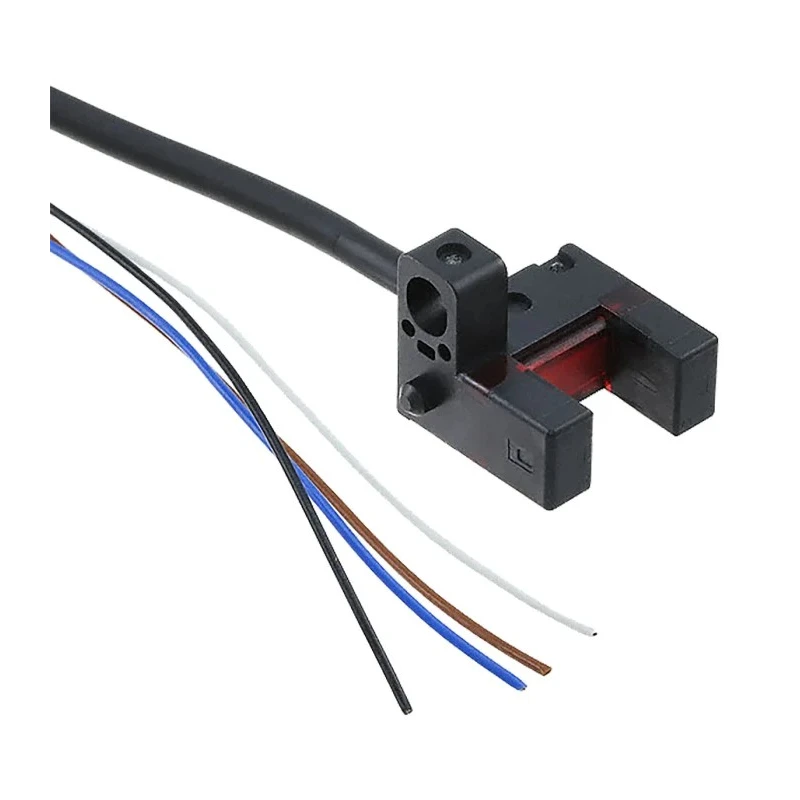

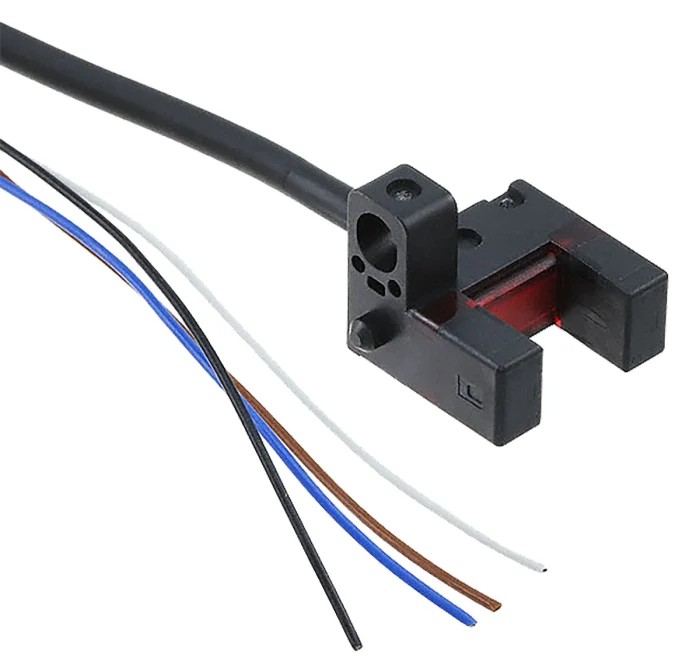

Panasonic Through Beam Photoelectric Sensor Fork Style 6 mm Detection Range NPN Output IP64 PM-F25-R
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Response time | 20, 80μs |
| Light Source | Infrared |
| Detection range | 6 mm |
| Model | PM-F25-R |
| IP Rating | IP64 |
| Mount Type | Chassis Mount |
| Housing Material | Polybutylene Terephthalate, Polycarbonate |
| Output type | NPN |
| Series | PM-25 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 50mA |
| DetectIon Type | Through Beam |
| Terminal type | Cable |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | IEC |
| Materials Detected | Opaque |
| Sensor Style | Fork |
| Panasonic Through Beam Photoelectric Sensor, Fork Sensor, 6 mm, NPN, IP64Brand | Panasonic |
Key Features
- The sensor features a through beam detection style for reliable object detection.
- Output type is NPN with cable terminal connection.
- IP64 rated housing ensures protection against dust and water splashes.
- Operating temperature range is from -25°C to 55°C for versatile environments.
- Constructed with polybutylene terephthalate and polycarbonate materials for durability.
- Response time ranges between 20 to 80 microseconds for fast detection.
- Maximum DC voltage rating is 24V with a maximum current of 50mA.
- Mounting is chassis type suited for secure installation.
Product Description
Panasonic PM-F25-R through beam photoelectric sensor fork style combines precision and durability for automation and control applications. This ultra-small U-shaped sensor integrates emitter and receiver components in a single robust housing, enhancing compactness and reliability.
Featuring an infrared light source, it detects opaque materials effectively within a 6 mm range, making it ideal for precise object detection tasks in industrial settings. The sensor includes reverse supply and output polarity protections along with output short circuit protection, increasing device longevity and operational safety.
Constructed using durable polybutylene terephthalate and polycarbonate housing materials, it resists vibrations and impacts, supported by resin-covered stress concentration areas near cables and internal circuits.
Operating safely within a temperature range of -25°C to 55°C, the sensor is chassis mountable via M2 or M3 screws ensuring firm installation in various environments. With an IP64 rating, the device is protection-rated for moderate dust ingress and water splashes, making it suitable for typical factory floor conditions.
This product complies with IEC standards and has a fast response time between 20 and 80 microseconds, facilitating high-speed automation and control processes in manufacturing, industrial automation, and quality inspection.
The sensor features a through beam detection style for reliable object detection. Output type is NPN with cable terminal connection. IP64 rated housing ensures protection against dust and water splashes. Operating temperature range is from -25°C to 55°C for versatile environments.
Constructed with polybutylene terephthalate and polycarbonate materials for durability. Response time ranges between 20 to 80 microseconds for fast detection. Maximum DC voltage rating is 24V with a maximum current of 50mA.
Mounting is chassis type suited for secure installation. Detects opaque materials effectively at a 6 mm detection range. Complies with IEC standards ensuring quality and safety. This Panasonic PM-F25-R photoelectric sensor is well-suited for electronics, electrical automation, factory automation, sensor arrays, and quality control applications.
Explore Panasonic sensors and Photoelectric Sensor solutions in the Electronics & Electricals category to find advanced automation components for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 6 mm, allowing it to effectively detect opaque materials.
It features an NPN output type with a cable terminal connection for easy integration into existing systems.
The maximum current rating for this sensor is 50 mA, ensuring it can handle various operational demands.
It operates safely within a temperature range of -25°C to 55°C, making it suitable for diverse environments.
The response time ranges between 20 to 80 microseconds, facilitating quick detection in automation processes.
The sensor has an IP64 rating, providing protection against moderate dust ingress and water splashes.
It is constructed from polybutylene terephthalate and polycarbonate materials, enhancing its durability.
This model supports chassis mounting, which can be secured using M2 or M3 screws for stable installation.
It utilizes an infrared light source to effectively detect objects within its specified range.
The sensor complies with IEC standards, ensuring it meets quality and safety requirements for industrial use.
It is designed to detect opaque materials, making it suitable for various industrial applications.
The maximum DC voltage rating for this sensor is 24V, allowing it to operate effectively in various setups.
