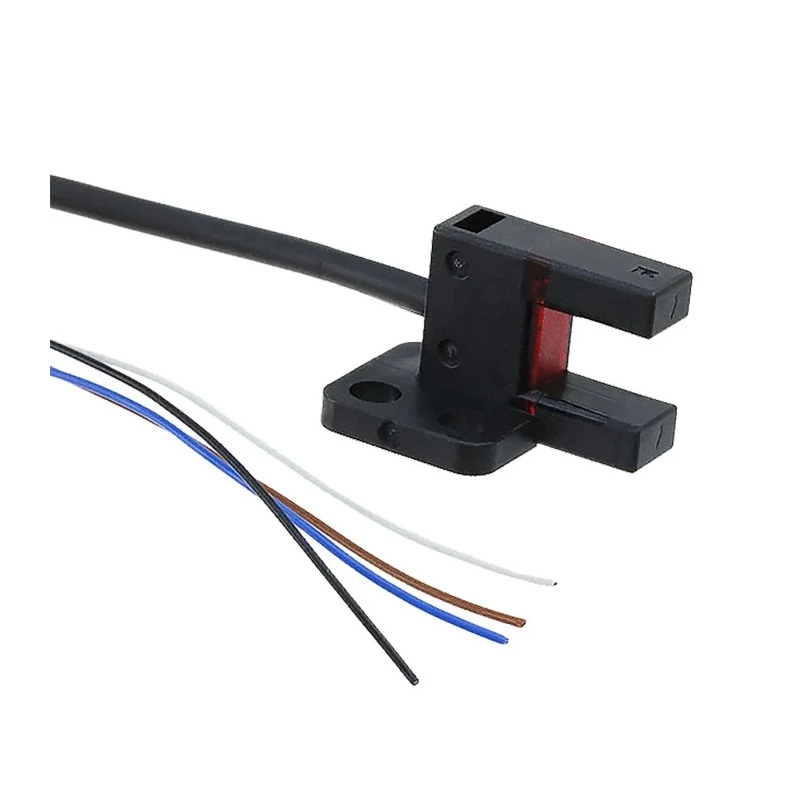

Panasonic Through Beam Fork Style Photoelectric Sensor 6 mm Detection Range NPN Output IP64 PM-F45

Panasonic PM-F45 is a through beam Photoelectric Sensor with a fork style sensor head, designed for high precision detection applications. It features a compact U-shaped housing integrating the emitter and receiver for space-saving installation, mounted on chassis via M3 screws. The sensor detects opaque objects within a 6 mm range using an infrared light source, making it suitable for varied industrial automation scenarios.

This sensor operates at a maximum DC voltage of 24 V and supports a maximum current of 50 mA. It is constructed with polybutylene terephthalate and polycarbonate materials, offering excellent durability and resistance to vibrations and impacts. The IP64 rating ensures protection against dust ingress and water splashes, suitable for factory floor environments.

Designed with functional safety in mind, the PM-F45 includes reverse supply polarity protection, reverse output polarity protection, and output short circuit protection, ensuring reliable operation under challenging conditions. It provides fast response times of 20 and 80 microseconds, optimizing system efficiency.

Operating temperature ranges from -25°C to 55°C, allowing use in both cold and warmer industrial settings. The sensor's ability to detect opaque materials with precision makes it a valuable component in assembly lines, packaging machinery, and material handling systems.

Certification according to IEC standards underlines its compliance with international safety and performance norms. The PM-F45 series emphasizes engineering excellence from Panasonic, manufactured in Japan, providing confidence in quality and reliability for automation and control systems.

The sensor features a compact U-shaped fork style design suitable for chassis mounting. It operates with a 24V DC maximum voltage and delivers a maximum current of 50 mA. Built with infrared light source and polybutylene terephthalate and polycarbonate housing for durability.

Operates reliably within a temperature range of -25°C to 55°C with IP64 ingress protection rating. Includes reverse supply and output polarity protection for enhanced operational safety. Response time is rapid at 20 and 80 microseconds for efficient sensing applications.

Designed to detect opaque materials with a robust and compact form factor. Complies with IEC standards and includes output short circuit protection. Ideal for industrial automation, control gear, manufacturing, and factory automation uses.

Originates from Japan, ensuring a quality manufacturing standard. Explore more Panasonic sensors and automation solutions on EnvMart for diverse industrial applications requiring reliable and precise object detection.
