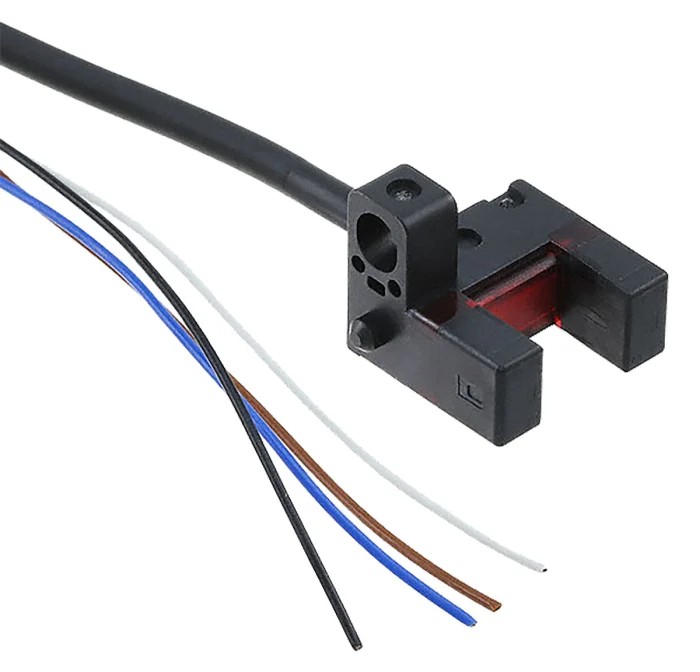

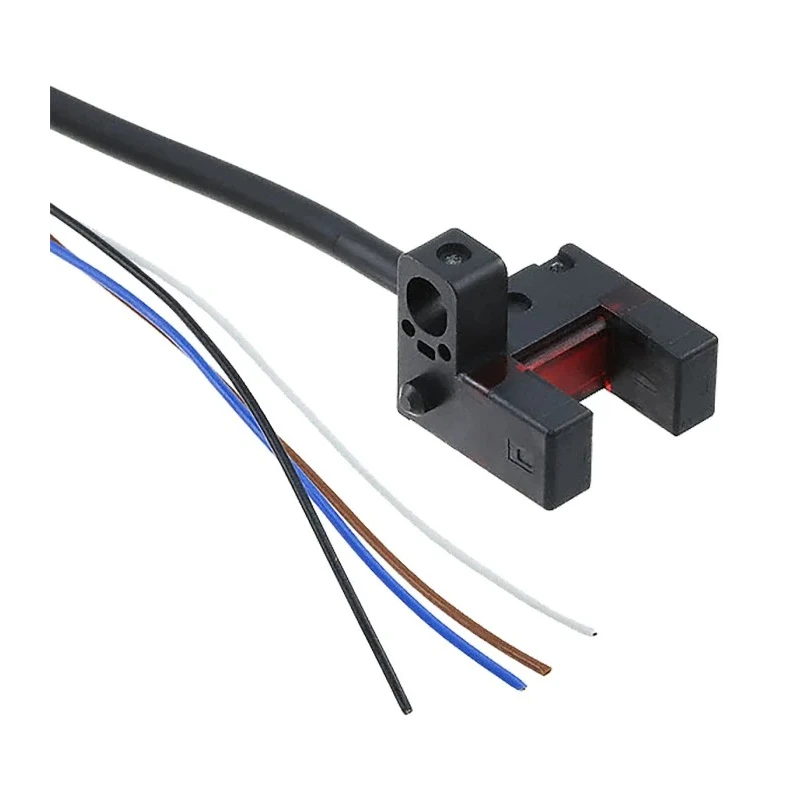

Panasonic Through Beam Fork Style Photoelectric Sensor 6 mm Detection Range PNP Output IP64 PM-F25-P

Panasonic PM-F25-P through beam photoelectric sensor is a fork-style sensor designed for industrial automation and control applications. The sensor features a 6 mm detection range with PNP output type and durable IP64 rated housing for environmental protection. It utilizes an infrared light source for detecting opaque materials effectively, making it suitable for precise object detection tasks.

This sensor operates reliably within a temperature range of -25°C to 55°C and supports a maximum DC voltage of 24 V with a current up to 50 mA. Its chassis mount design facilitates easy installation with M2/M3 screws, while protection features such as reverse supply polarity and output short circuit protection ensure robust operation under demanding industrial conditions.

The housing is constructed from polybutylene terephthalate and polycarbonate, providing resistance against vibrations and impacts. The sensor's ultra-small U-shaped design incorporates both emitter and receiver within a single housing, supported by a clearly visible operating indicator for easy status monitoring from multiple angles.

Typical applications include industrial automation, manufacturing process control, and quality assurance systems where accurate and fast object detection is required. This sensor complies with IEC standards and is manufactured in Japan, assuring high quality and reliability.

Key protection features include reverse output polarity and output short circuit protection, enhancing sensor longevity in demanding environments. The rapid response time between 20 to 80 microseconds enables real-time monitoring and control.

Uses infrared light source for precise detection. Operates within temperature range -25°C to 55°C. Equipped with reverse supply and output polarity protection. Offers a fast response time of 20 to 80 microseconds. Constructed from durable polybutylene terephthalate and polycarbonate materials.

Designed for chassis mount installation with cable terminal type. Maximum operating voltage of 24 V DC and current of 50 mA. Detects opaque materials effectively in industrial environments. Complies with IEC standards ensuring reliable performance.

Manufactured in Japan providing high quality assurance. Explore more reliable Photoelectric Sensors and automation components at EnvMart for industrial, manufacturing, and control system needs.
