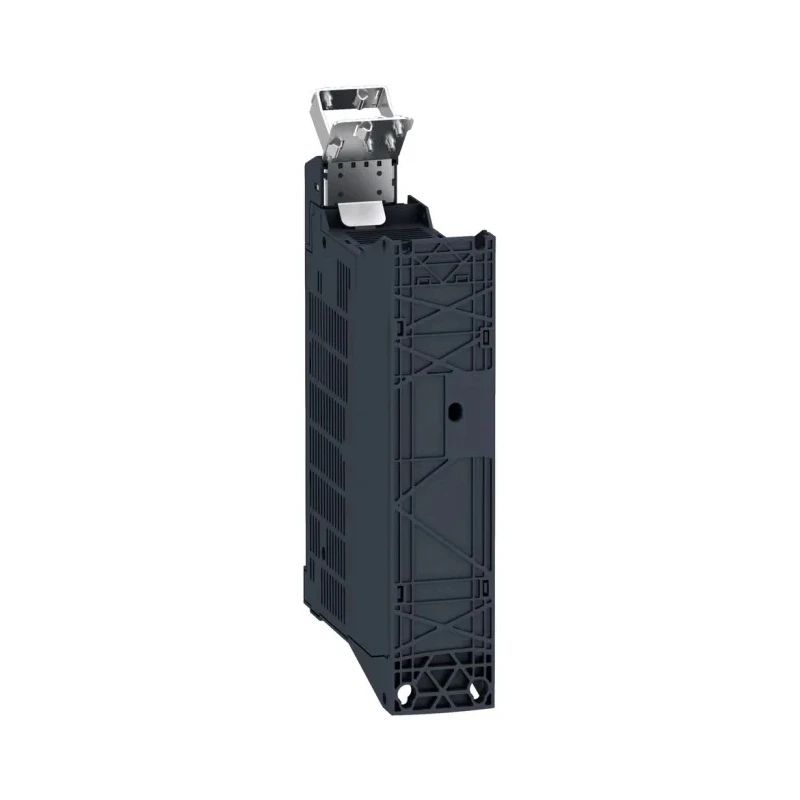

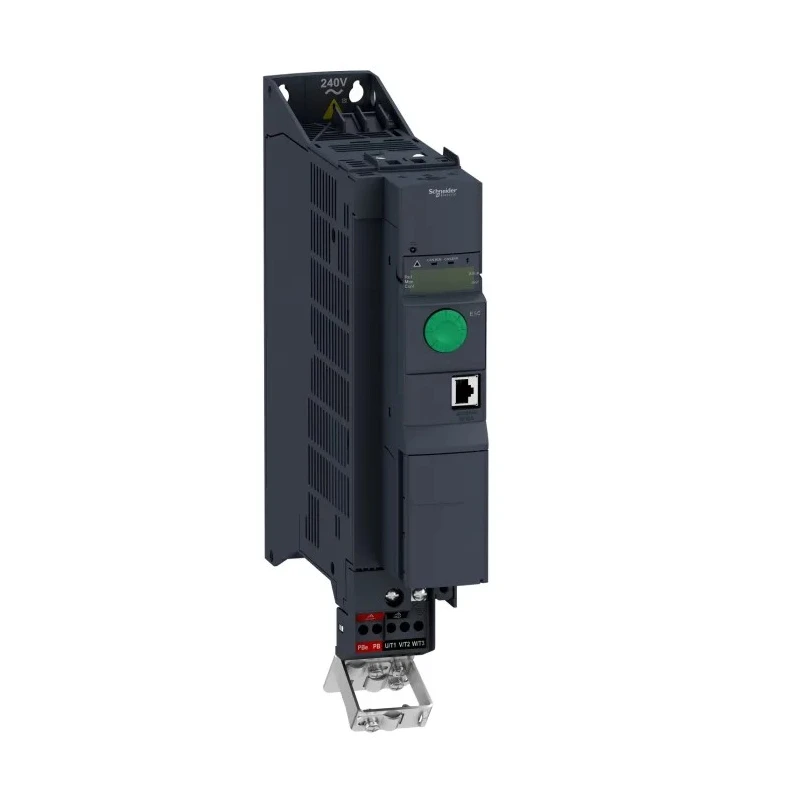

Schneider Electric Altivar Variable Speed Drive 1.1 kW 1 Phase 230 V AC 6.9 A ATV320U11M2B

Schneider Electric ATV320U11M2B is a variable speed drive from the Altivar 320 series designed for precise control of single-phase synchronous and asynchronous motors with a power rating of 1.1 kW. It operates at 230 V AC with a maximum output current of 6.9 A. The compact book form factor simplifies installation in automation and control cabinets commonly used in industrial settings.

This variable frequency drive supports a broad output frequency range from 0.1 Hz up to 599 Hz, allowing for versatile motor speed control. Its design incorporates IEC 60721-3-3 class 3C3 coated printed circuit boards ensuring durability and long machine availability even at ambient temperatures up to 50°C, without requiring additional cooling.

The drive integrates advanced features like flux vector control without the need for external sensors, ensuring high dynamic performance and torque accuracy at very low speeds. Extended features include parallel motor connection, static speed accuracy, and energy-saving operation for open-loop synchronous motors. Five safety functions configured through SoMove software support machine safety compliance, independent of Preventa safety modules.

Communication is facilitated via multiple industrial protocols including EtherNet/IP, Modbus TCP, Profinet EtherCAT, Profibus, CANopen, and DeviceNet, enabling seamless integration into diverse industrial automation systems.

Applications include packaging machinery, material handling equipment, textile machines, mechanical actuators, and hoisting systems. The drive complies with international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 regarding safety and electromagnetic compatibility, and holds certifications such as CE, UL, CSA, NOM, EAC, and RCM.

Mounting is designed for vertical installation (+/- 10 degrees) on DIN rails using four fixing holes, facilitating robust and secure panel integration. Additional mounting accessories and external options like braking resistors and EMC filters are available depending on the drive rating.

The Better World certification highlights the energy-efficient and sustainable design of this variable speed drive, assisting industries in reducing energy consumption and carbon footprint.

Explore our extensive range of Inverter Drives and Schneider Electric automation solutions at EnvMart for industrial, manufacturing, and commercial applications. Compact installation form factor optimized for automation cabinets.

Supports single-phase synchronous and asynchronous motors. Robust construction with coated PCBs for harsh environments. Advanced flux vector control for accurate torque and speed control. Multiple industrial communication protocols supported.

Five configurable safety functions for enhanced machine safety. Complies with major international standards and certifications. Energy efficient design recognized by Better World program. Standard DIN rail mounting with versatile accessories available.
