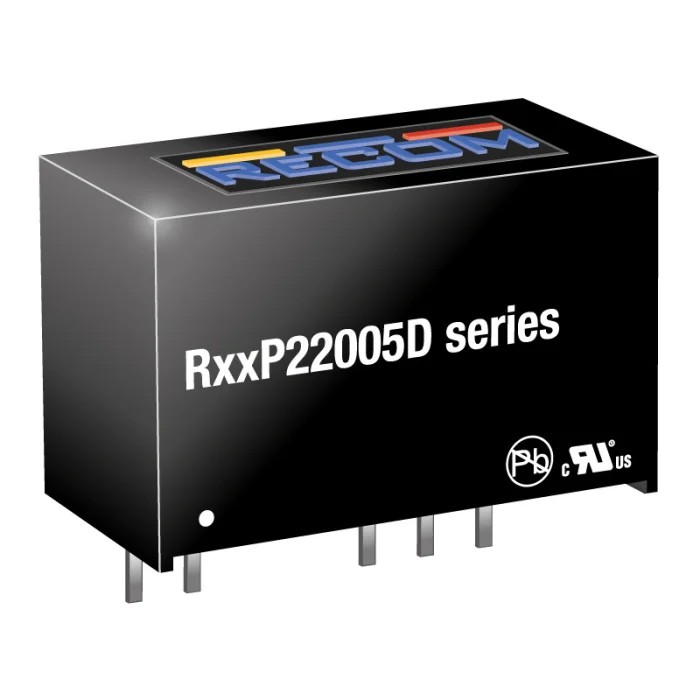

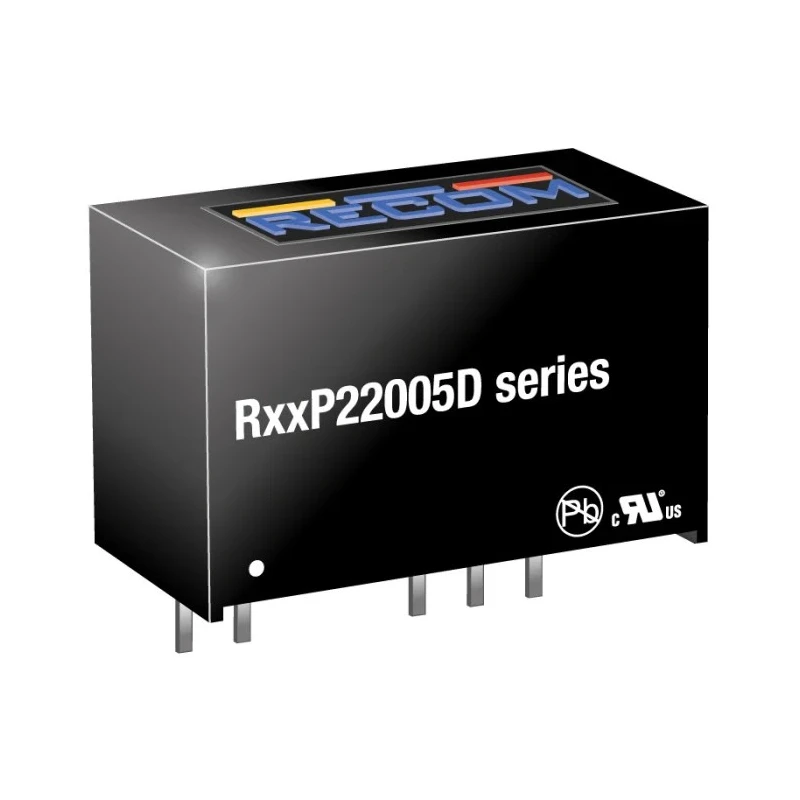

Recom DC/DC Converter 50V Output, 20 mA, 13.2V/10.8V Input, 2W Power, Through Hole Mount R12P22005D
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom R12P DC/DC Converter, 50V/ 20 mA, 13 |
| Brand | Recom |
| Efficiency | 82% |
| Length | 19.5mm |
| Model | R12P22005D |
| Depth | 12.5mm |
| Width | 9.8mm |
| Mount Type | Through Hole |
| Series | R12P |
| Maximum Operating Temperature | 90°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 14600000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 7 |
| Output Voltage 1 | 50V |
| Output Current 1 | 20mA |
| Isolation Voltage | 5.2kV dc |
| Output Current 2 | 5mA |
| Output Voltage 2 | -200V |
Key Features
- High isolation voltage of 5.2 kV DC ensures superior electrical separation.
- Compact SIP package with dimensions 19.5mm x 9.8mm x 12.5mm.
- Operates efficiently at 82% efficiency to reduce power loss and heat.
- Wide operating temperature range from -40°C to 90°C for harsh environment applications.
- Dual output supports asymmetrical voltages suitable for SiC-MOSFET gate drivers.
- 7 pins with through-hole mount type for easy PCB integration.
- Short-circuit protection with automatic recovery enhances reliability and safety.
- MTBF rating of 14,600,000 hours ensures long-lasting performance.
Product Description
Recom R12P22005D is a high-quality DC/DC converter designed to deliver a stable 50V output at 20 mA and 2W power from an input voltage range of 10.8V to 13.2V DC. Featuring a robust through-hole SIP package with compact dimensions of 19.5 mm length, 9.8 mm width, and 12.5 mm depth, this converter is ideal for space-constrained PCB designs.
Its 5.2 kV DC isolation voltage ensures excellent protection against high voltage transients, supporting sensitive electronics in industrial and automotive environments. The device achieves up to 82% efficiency, reducing heat generation and improving power usage.
Engineered for demanding conditions, it operates reliably in temperatures ranging from -40°C to 90°C, suitable for applications in electric vehicles, renewable energy conversion systems, and high-power industrial drives. The converter provides asymmetrical dual outputs to optimally drive SiC-MOSFET gates, making it efficient for modern power electronics.
The R12P series converter includes short-circuit protection with automatic restart, preventing equipment damage and minimizing downtime. Its mean time between failures (MTBF) is rated at 14.6 million hours, indicating exceptional durability and performance reliability.
High 5.2kV DC isolation voltage for electrical safety. Compact, robust SIP package with through-hole mounting. 82% efficiency reduces power loss and thermal stress. Wide temperature range enables operation in challenging environments.
Dual output with +20V/-5V for efficient SiC-MOSFET gate driving. 7-pin configuration facilitates easy PCB integration. Short-circuit protection with automatic recovery for safety. High MTBF of 14,600,000 hours ensures long-term reliability.
This Recom DC/DC converter is well-suited for industrial, automotive, renewable energy, and laboratory applications requiring isolated, low-power DC voltage conversion with high reliability and efficiency. Its compact size, combined with advanced electrical safety features, ensures seamless integration into diverse technical systems.
Explore the wide range of Recom DC/DC Converters and similar power supply solutions available on EnvMart for efficient, reliable performance across multiple industries.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a stable output voltage of 50V with a current of 20 mA.
It operates with an input voltage range of 10.8V to 13.2V DC.
The converter achieves an efficiency of up to 82%, which helps reduce power loss and heat generation.
The compact SIP package measures 19.5 mm in length, 9.8 mm in width, and 12.5 mm in depth.
It features a high isolation voltage of 5.2 kV DC, providing excellent electrical separation.
It operates reliably in a wide temperature range from -40°C to 90°C, suitable for harsh environments.
This unit has two outputs, including +50V and -200V.
It utilizes a through-hole mounting type, making it easy to integrate into PCBs.
It includes short-circuit protection with automatic recovery, enhancing reliability and safety.
The MTBF rating is 14,600,000 hours, indicating exceptional performance reliability.
It is suitable for industrial, automotive, renewable energy, and laboratory applications requiring isolated, low-power DC voltage conversion.
This model features a 7-pin configuration for easy integration into electronic circuits.
