| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.5mm |
| Length | 1mm |
| Model | LQG15HS22NJ02D |
| Depth | 0.5mm |
| Packaging | Paper Tape |
| Series | LQG |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Non-Magnetic Ceramic |
| Inductance | 0.022μH |
| Package/Case | 1005 |
| Maximum DC Current | 300mA |
| Pin Count | 2 |
| Maximum DC Resistance | 420mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 1900MHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |

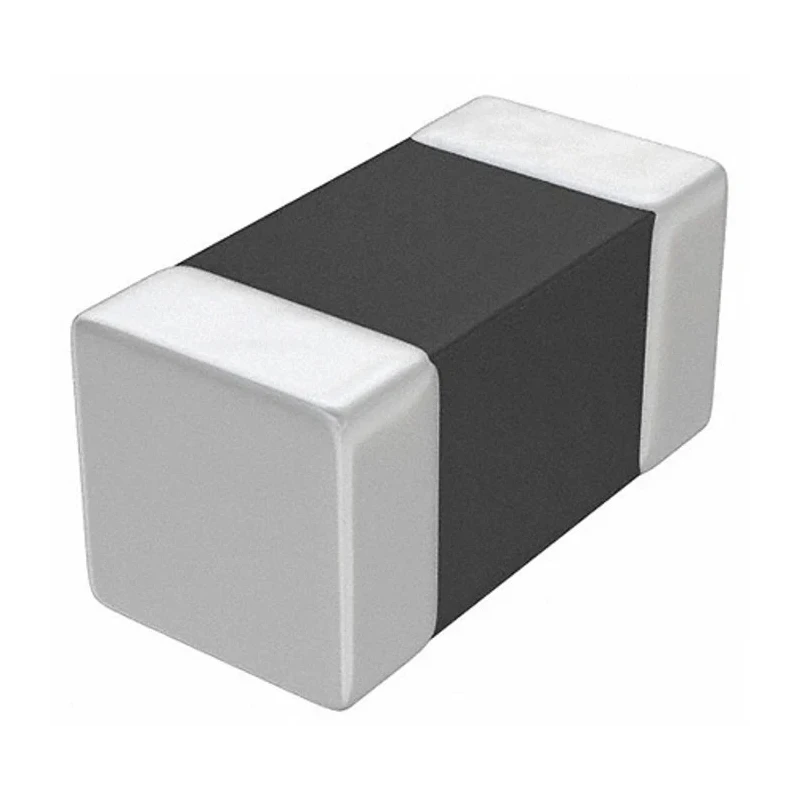

Murata LQG15HS22NJ02D is a high-performance unshielded wirewound Surface Mount Inductor designed for use in various electronic circuits requiring stable inductance and low DC resistance. Housed in a compact 1005 package (1mm length, 0.5mm height and depth), it features a non-magnetic ceramic core which contributes to minimal magnetic interference and enhanced performance at high frequencies.
This multilayer inductor is ideal for applications in chokes, WLAN networks, RF circuit matching, and mobile communication equipment resonance circuits. It can operate reliably within a temperature range from -55°C up to 125°C, making it suitable for industrial, telecommunications, and consumer electronic environments.
The device supports a maximum DC current of 300mA with a low DC resistance of 420mΩ, allowing efficient current flow and reduced power losses. Its capacitance tolerance is ±5%, ensuring consistent signal filtering and energy storage.
The solder termination style facilitates easy and secure mounting on printed circuit boards using automated assembly processes. The inductor's maximum self-resonant frequency is rated at 1900MHz, enabling use in high-frequency applications such as RF and wireless communication circuits.
With a minimum quality factor of 8, LQG15HS22NJ02D inductors provide a good balance of inductance stability and size efficiency. Manufactured in Japan, this Murata series is designed with multilayer moulded construction for enhanced durability and consistent electrical performance over its lifecycle.
Compact 1005 surface mount package. Stable inductance with ±5% tolerance. Low DC resistance for efficiency. Wide temperature operation range. Suitable for wireless and RF applications. Non-magnetic ceramic core. Multilayer moulded construction.
Solder termination for easy mounting. High self-resonant frequency of 1900MHz. Rated maximum DC current of 300mA.
This inductor is well-suited for use in industrial, telecommunications, wireless communication, and electronics manufacturing sectors. For more components, browse our comprehensive Murata inductors and related products catalog.
