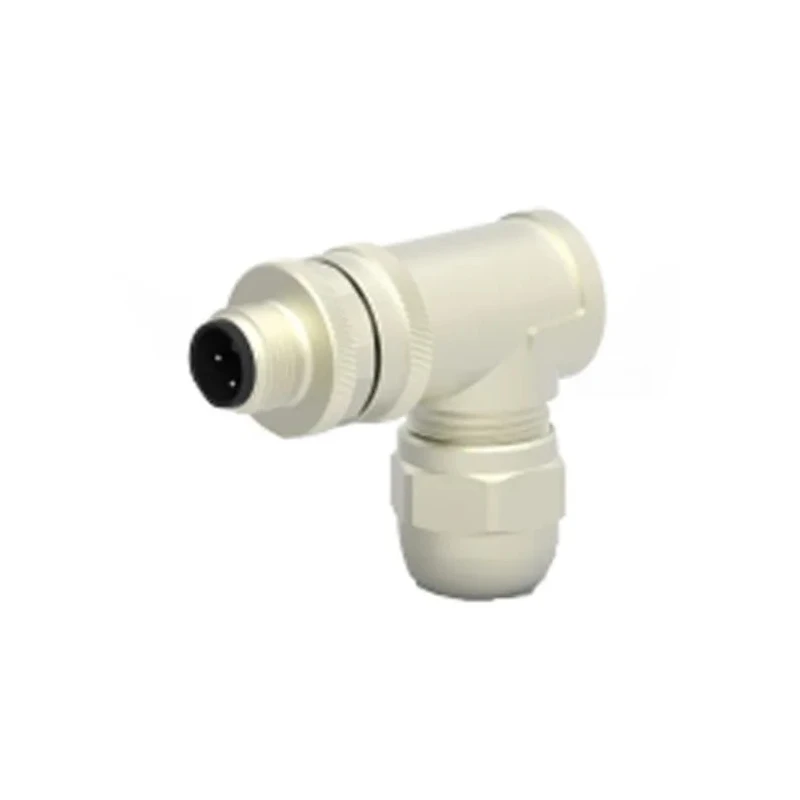

TE Connectivity M12 Circular Connector, 5 Contacts, Cable Mount Plug, Male, IP67 Rated, T4113011051-000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 4A |
| Model | T4113011051-000 |
| IP Rating | IP67 |
| Mount Type | Cable |
| Housing Material | Brass |
| Contact Material | Brass |
| Series | T411 |
| Termination Type | Screw |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | Ethernet switches |
| Pole Format | 5 |
| Contact Plating | Gold |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shell Size | 20 |
| Mating Type | Threaded |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- Connector features gold-plated brass contacts for reliable conductivity and durability.
- Right angle orientation and screw termination enable secure and easy assembly.
- A coding supports DeviceNet, IO-Link, and Profibus protocols with threaded mating.
- Robust brass housing with M12 x 1 mm thread for rugged industrial applications.
- Operating temperature range from -40°C to 85°C suits varied environments.
- IP67 rating ensures dust-tight and waterproof protection in harsh conditions.
- Includes PG7 and PG9 cable glands for cable diameter acceptance of 4-8 mm.
- Field installable design requires no special tooling, minimizing downtime.
Product Description
TE Connectivity T4113011051-000 is an M12 circular connector designed for industrial cable mounting applications. This 5-contact male plug connector features an IP67 rated brass housing and gold-plated contacts to ensure superior conductivity and corrosion resistance. Engineered for rugged environments, it withstands harsh conditions in factory automation, machine tools, and process control industries.
The T411 series connectors offer easy assembly with screw termination and include PG7 and PG9 cable gland options providing robust strain relief for cables sized 4-8 mm. Its A coding supports widespread industrial communication protocols such as DeviceNet, IO-Link, and Profibus. The connector's right-angle orientation and threaded mating mechanism ensure secure connections and optimal durability.
Rated for operating temperatures from -40°C to +85°C, this connector is suitable for a wide range of industrial environments where reliable sensor and actuator connections are critical. The IP67 ingress protection rating guarantees full dust tightness and water resistance, including protection from powerful water jets and temporary submersion.
The robust brass housing and convenient field installable design reduce maintenance time and boost operational efficiency in industrial automation and robotics applications. The connector is also compatible with Ethernet switches and other control system components that require reliable circular connectors.
The connector provides a compact and durable solution for industrial connectivity needs. Field installable with easy screw termination, no special tools necessary. Supports 5 contacts with gold-plated brass terminals for long-lasting performance.
Designed with IP67 ingress protection to resist dust and water ingress. Operates reliably across a wide temperature range suitable for harsh environments.
Choose the TE Connectivity T4113011051-000 for high performance, durable M12 circular connectors for industrial sensor and communication applications. Explore the Electronics & Electricals category on EnvMart for related industrial connectors and accessories.
Explore more products in our Industrial Circular Connector category.
