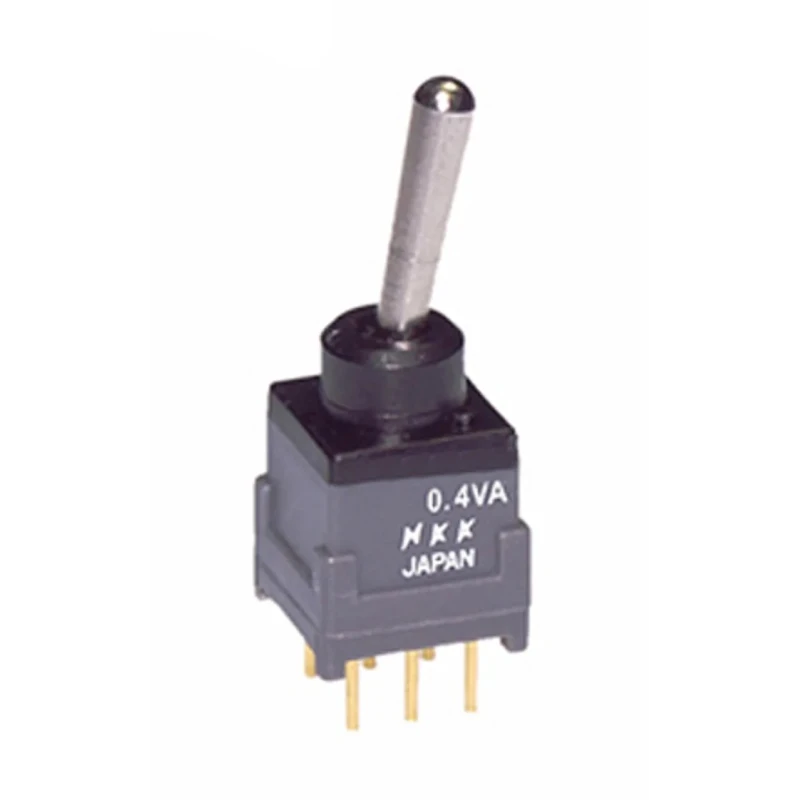

NKK Switches Process Sealed Subminiature Antistatic Toggle Switch DPDT On-Off-On 28 V DC/AC PCB Mount B28AP

NKK Switches B28AP is a process sealed subminiature antistatic toggle switch featuring a double-pole double-throw (DPDT) contact configuration and On-Off-On switch operation. Designed primarily for logic-level applications, this toggle switch offers a smoother, positive detent actuation through its award-winning STC contact mechanism, providing superior contact stability and unparalleled reliability.

The switch is mounted via PCB with through hole terminals and has a compact panel cutout size of 6.2 x 4.9 mm. Its actuator is made of nickel plated brass with a length of 10 mm, ensuring robustness and long-lasting operation. It is rated for a contact current of 100mA and can operate at contact voltages up to 28 V DC and 28 V AC, making it suitable for low voltage control circuits.

With an IP65 rating, the B28AP is protected against dust ingress and water jets, making it viable in industrial, electrical automation, and harsh environmental conditions. The sealed body construction prevents contamination of contacts, reducing maintenance time and costs while allowing money-saving automated soldering and cleaning processes.

This toggle switch adheres to UL94V0 flammability standards and boasts a mechanical life rating of 50,000 operations, evidencing its durability and dependability in commercial and industrial applications. The operating temperature range spans from -30°C to 85°C, supporting diverse deployment scenarios from low to high temperature environments.

As a non-illuminated PCB-mount toggle switch, the NKK B28AP is ideal for use in precision industrial automation, instrumentation, control panels, and other applications requiring reliable switch actuation under variable operating conditions. Originating from China, this product is designed to meet stringent industrial performance criteria.

Designed for logic-level applications requiring smooth, positive detent actuation. Award-winning STC contact mechanism offers increased contact stability. Sealed body construction prevents contact contamination and allows automated soldering.

Rated for 28 V DC and 28 V AC contact voltages with 100mA contact current. Nickel plated brass actuator with 10 mm length for reliable operation. Panel cutout size is 6.2 x 4.9 mm with through hole terminal type. IP65 rated protection suitable for harsh environments.

Mechanical life of 50,000 operations ensures durability. Operating temperature range from -30°C to 85°C for extended use cases. Non-illuminated switch with UL94V0 flammability standard compliance. Explore EnvMart’s extensive selection of Toggle Switches and electrical components for versatile industrial automation and control solutions.
