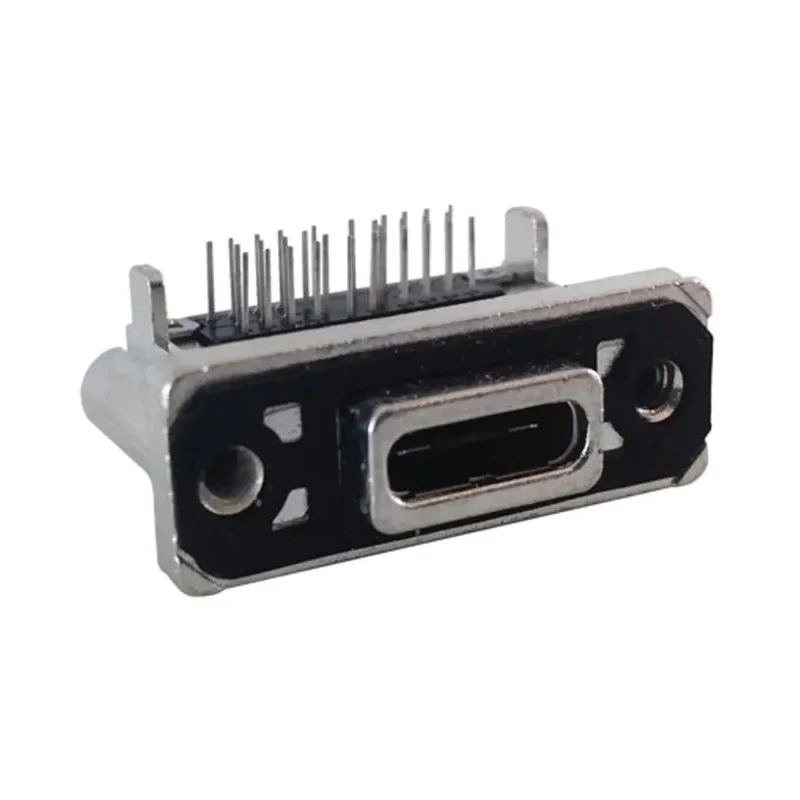

Amphenol Communications Solutions Right Angle PCB Female USB Type C USB 2.0 Connector IP67 MUSBR-M1C1-M0
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 1.25A |
| Model | MUSBR-M1C1-M0 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Contact Material | Copper Alloy |
| Series | MUSBR |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| USB Type | USB Type C |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Designed for harsh environments with IP67 dust and water protection.
- Supports USB 2.0 data transfer and 1.25A current rating.
- Right angle orientation facilitates PCB mounting and space-saving designs.
- Constructed with copper alloy contacts in a nickel-plated diecast zinc housing.
- Operates at voltages up to 100V and temperatures ranging from -40°C to 105°C.
- Termination by solder ensures reliable PCB connection.
- Compatible with devices requiring robust and compact USB Type C interfaces.
- Suitable for smartphones, tablets, PCs, laptops, industrial machinery, and power packs.
Product Description
Amphenol Communications Solutions MUSBR-M1C1-M0 is a right angle PCB female USB Type C connector compliant with USB 2.0 specifications and rated IP67 for harsh environmental conditions. It offers reliable and compact connectivity solutions ideal for industrial, commercial, and consumer electronics applications.
This connector features a robust construction with copper alloy contacts housed inside a nickel-plated diecast zinc shell, providing excellent durability and resistance to corrosion. The connector’s reversible USB Type C interface enables plug insertion in any orientation, ensuring ease of use and eliminating mis-mating errors.
Operating voltage supports up to 100V and the current rating is 1.25A, making it suitable for data and power transmission in demanding environments. Its operating temperature range from -40°C to 105°C ensures stable function under extreme climatic conditions.
The right angle design is optimal for PCB mounting where space constraints exist, and termination is achieved through soldering for secure connections. Additional features include stainless steel rear shields for added protection and compatibility with M2.5 x 0.45 or 2 to 56 UNC mounting threads for panel fixation.
This USB connector is widely applicable in smartphones, tablets, PCs, laptops, power packs, chargers, and industrial machinery where rugged performance is required. Designed for harsh environments with IP67 protection. Supports USB 2.0 with data transfer rates up to 480 Mbps.
Reversible plug interface for easy mating. Copper alloy contacts ensure excellent conductivity. Nickel-plated diecast zinc housing for durability. Right angle orientation for PCB convenience. Solder termination for reliable electrical connection.
Operating temperature from -40°C to 105°C. Rated for 100V and 1.25A current. Ideal for industrial, commercial, and consumer electronic applications. Explore our extensive range of USB Connectors at EnvMart for your next project or industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this connector is 100V.
This model has a current rating of 1.25A.
The connector is rated IP67, providing protection against dust and water.
It operates within a temperature range of -40°C to 105°C.
The right angle orientation facilitates PCB mounting in space-constrained designs, optimizing layout efficiency.
The connector uses solder termination for a reliable electrical connection.
It features copper alloy contacts housed in a nickel-plated diecast zinc shell.
This model complies with USB 2.0 specifications.
It is suitable for use with smartphones, tablets, PCs, laptops, and industrial machinery.
This connector has 1 port.
The connector is female.
This model is designed for PCB mounting.
