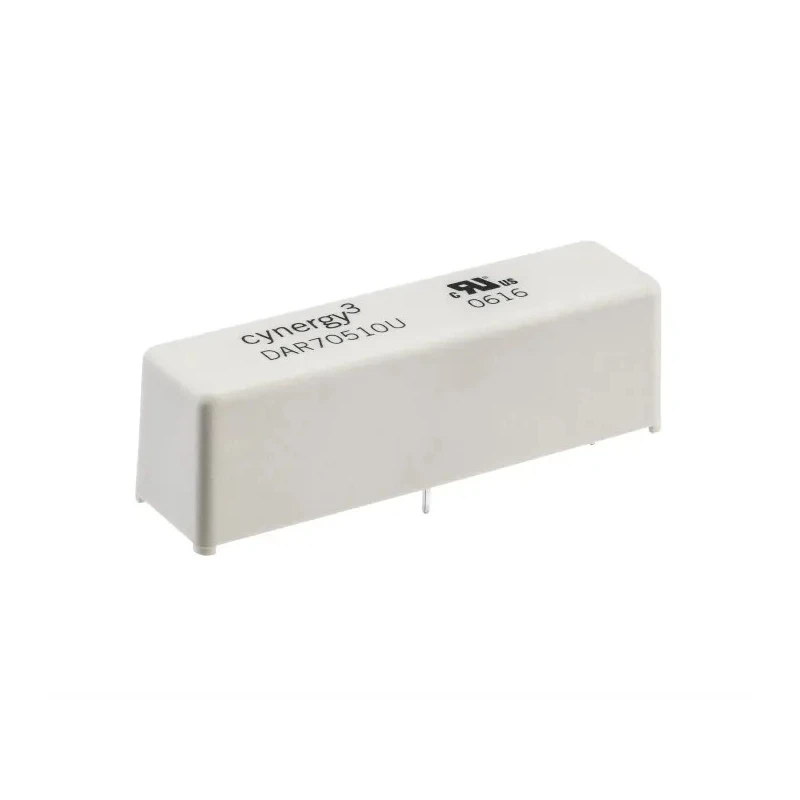

Cynergy3 PCB Reed Relay, 12V DC Coil, SPNC Contact, 7000V DC Max Isolation, 2A Max Current, 240Ω Coil Resistance

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 PCB Reed Relay, 12V DC Coil, SPNC Contact, 7000V DC Max Isolation, 2A Max Current, 240Ω Coil Resistance

Name: Cynergy3 PCB Reed Relay, 12V DC Coil, SPNC Contact, 7000V DC Max Isolation, 2A Max Current, 240Ω Coil Resistance
Brand: Cynergy3
SKU: 142121
Price: 65.17 USD
Availability: InStock



Category Reed Relay Brand Cynergy3 Condition New

Specifications

Country of Origin	United Kingdom
Brand	Cynergy3
Height	18.5mm
Length	60mm
Model	Cynergy3
Operating Time	2ms
Mount Type	PCB
Series	DB (UL)
Maximum Operating Temperature	70°C
Contact Configuration	SPNC
Minimum Operating Temperature	-20°C
Terminal type	PCB Terminal
Contact Resistance	250mΩ
Standards/Approvals	UL Approved, ISO9001CERTIFIED
Coil Resistance	240Ω
Coil Power	50W
Switching Power	50W
Isolation Coil To Contact	17kV

Key Features

Coil power rating is 50W ensuring efficient performance.
Coil resistance is 240Ω for stable coil current control.
Maximum isolation voltage of 7000V DC provides high electrical isolation.
Maximum switching current up to 2A suitable for various industrial uses.
Operating temperature range from -20°C to 70°C for versatile environmental compatibility.
Fast operating time of 2ms for responsive control.
Constructed with UL Approved and ISO9001 certified quality standards.
Compact dimensions with 18.5mm height and 60mm length for PCB mounting.

Product Description

Cynergy3 DBT71210U/RS PCB Reed Relay is a high-performance relay designed for PCB mounting with a 12V DC coil and Single Pole Normally Closed (SPNC) contact configuration. This relay delivers maximum isolation voltage of 7000V DC and a switching current up to 2A, suitable for demanding electrical relay applications.

With a coil power rating of 50W and a coil resistance of 240Ω, the device ensures efficient and reliable coil activation. Its operational temperature range spans from -20°C to 70°C, making it well-suited for diverse industrial environments including automation systems, electrical control panels, and instrumentation.

The relay features a fast operating time of 2 milliseconds, enabling rapid switching responses ideal for test equipment and high-voltage power supplies. UL approval and ISO9001 certification guarantee manufacturing quality and operational reliability. The package includes a robust PCB terminal type and a compact form factor measuring 18.5mm in height and 60mm in length, allowing easy integration into printed circuit boards.

The contacts use rhodium plating providing low contact resistance of 250mΩ, which minimizes signal degradation. The relay is non-latching, ensuring clear snap-action switching performance. Overall, this component is designed for high isolation, durability, and reliability in electrical and electronic applications.

Coil power: 50W. Coil resistance: 240Ω. Contact configuration: SPNC. Maximum switching current: 2A. Operating temperature range: -20°C to 70°C. Operating time: 2ms. UL approved and ISO9001 certified. Dimensions: Height 18.5mm, Length 60mm.

Contact resistance: 250mΩ. Non-latching relay design.

This Cynergy3 PCB Reed Relay is widely used in electrical automation, industrial control, instrumentation, medical devices, and high-voltage applications. Explore more relays and electrical components in the Electronics & Electricals category at EnvMart for your specialized needs.
