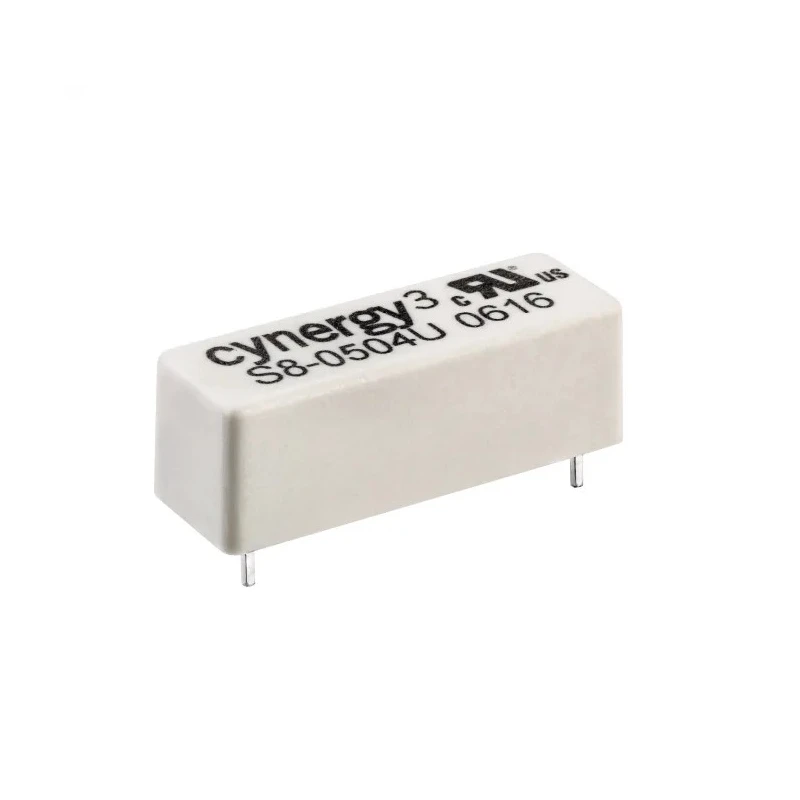

Cynergy3 High-Voltage PCB Reed Relay, 24V DC Coil, SPST Contact, 1000V DC Max, 1A Max, 1550 Ω Coil Resistance

Free Delivery in India | Lowest Global Shipping Charges

Cynergy3 High-Voltage PCB Reed Relay, 24V DC Coil, SPST Contact, 1000V DC Max, 1A Max, 1550 Ω Coil Resistance

Name: Cynergy3 High-Voltage PCB Reed Relay, 24V DC Coil, SPST Contact, 1000V DC Max, 1A Max, 1550 Ω Coil Resistance
Brand: Cynergy3
SKU: 142120
Price: 30.02 USD
Availability: InStock



Category Reed Relay Brand Cynergy3 Condition New

Specifications

Country of Origin	United Kingdom
Brand	Cynergy3
Height	12mm
Length	30mm
Model	Cynergy3
Operating Time	1ms
Mount Type	PCB
Series	S8
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Minimum Operating Temperature	-40°C
Terminal type	PCB Terminal
Contact Resistance	150mΩ
Standards/Approvals	UR
Coil Resistance	1550Ω
Isolation Coil To Contact	7kV

Key Features

Features a compact PCB mount design for easy integration into electronic circuits.
Coil resistance of 1550 Ω ensures reliable coil operation at 24V DC.
Supports a wide operating temperature range from -40°C to 85°C for varied environmental conditions.
Maximum switching voltage of 1000V AC/DC suitable for high voltage applications.
Quick operating time of 1 millisecond for fast switching performance.
Rhodium-plated contacts offer low electrical resistance and high conductivity.
Isolation voltage of 7kV between coil and contacts ensures robust electrical separation.
Durable with a lifespan rated for one billion dry operations for long-term reliability.

Product Description

Cynergy3 S8-2405VU/RS High-Voltage PCB Reed Relay features a 24V DC coil and SPST (Single Pole Single Throw) contact configuration. Designed for demanding electrical applications, it supports a maximum switching voltage of 1000V AC/DC and a current capacity of 1A, making it suitable for heavy-duty circuits requiring reliable isolation and switching.

The relay incorporates rhodium-plated contacts that provide excellent conductivity and low contact resistance, contributing to efficient signal switching and minimal power loss. Its coil resistance is specified at 1550 Ω, optimized for operation at 24V DC coil voltage.

With a compact PCB mount form factor measuring 30mm in length, 12mm in height, and approximately 10mm in width, this relay integrates seamlessly into printed circuit boards ensuring minimal space consumption. The relay is rated for operation over a broad temperature range from -40°C to 85°C, enabling its use in harsh industrial, automotive, medical, and test equipment environments.

Electrical isolation between coil and contacts is robust, with an isolation voltage of 7kV enhancing safety and noise immunity. The quick switching time of 1 millisecond facilitates rapid response in control systems and signal conditioning applications.

Compact design for PCB mounting and space-efficient installation. High switching voltage and current ratings for reliable heavy-duty operation. Wide operating temperature range for versatile industrial use. Rhodium contacts minimize signal loss and maintain long-term reliability.

High coil-to-contact isolation voltage ensures safety and noise reduction. Extensive mechanical endurance tested for one billion dry operations for durability.

This Cynergy3 reed relay is widely used in industrial automation, medical devices, test and measurement instruments, and high-voltage switching applications requiring precise, rapid, and reliable signal control.

Enhance your electronic system design with the Cynergy3 S8-2405VU/RS PCB Reed Relay, combining robust performance, compact size, and industry-grade reliability. Explore more products in the Reed Relay category on EnvMart for comprehensive solution options.
