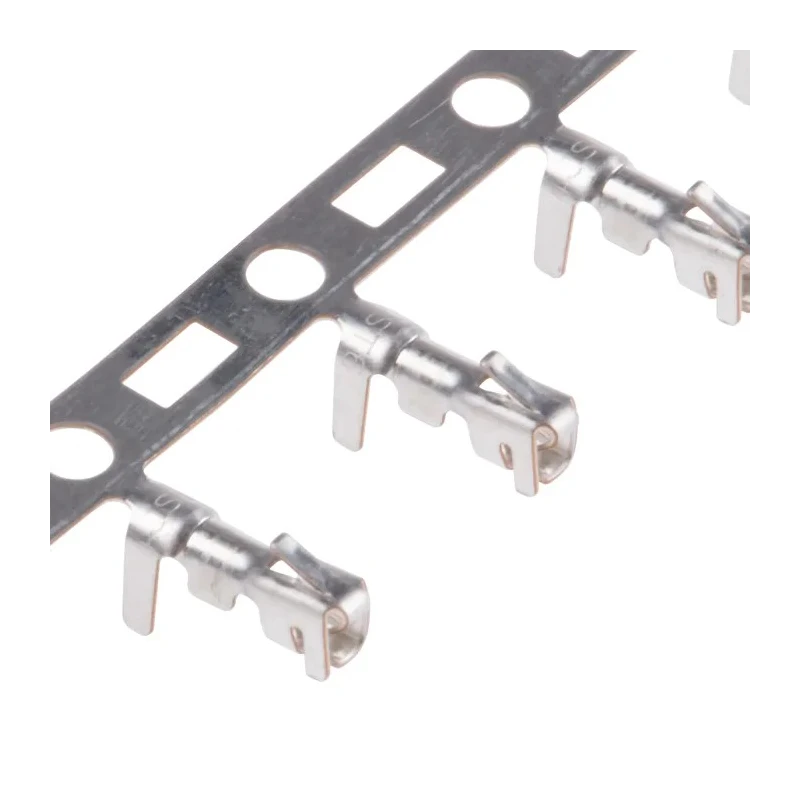

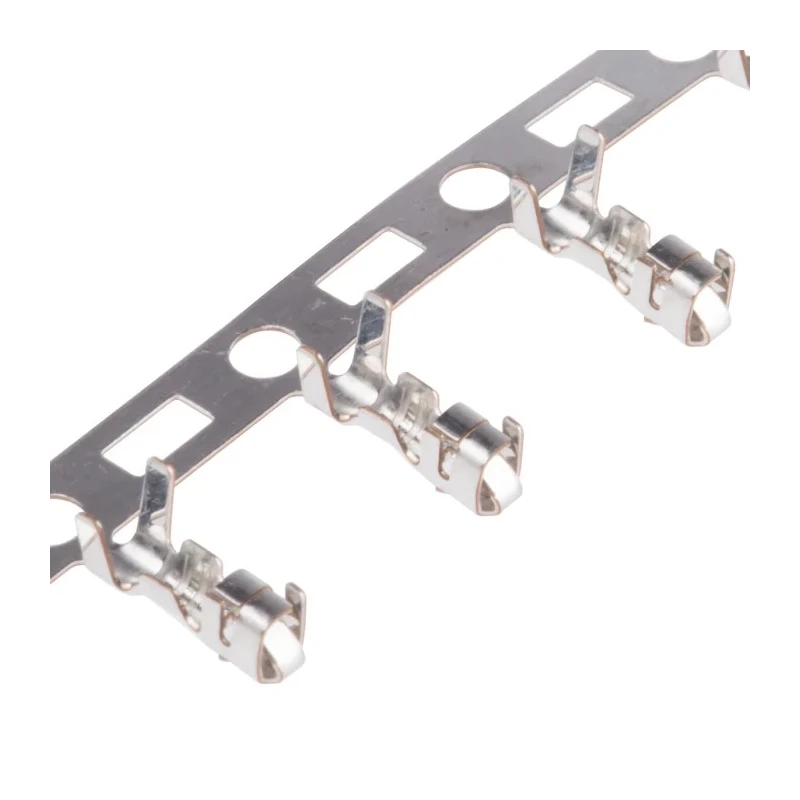

JST XH Series Female Crimp Terminal 3A Current 28-22 AWG Tin Plated Phosphor Bronze Contact SXH-001T-P0.6

Free Delivery in India | Lowest Global Shipping Charges

JST XH Series Female Crimp Terminal 3A Current 28-22 AWG Tin Plated Phosphor Bronze Contact SXH-001T-P0.6



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	China
Brand	JST
Current	3A
Model	SXH-001T-P0.6
Gender	Female
Contact Material	Phosphor Bronze
Series	XH
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	XH Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.33mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from phosphor bronze with tin plating for enhanced conductivity and corrosion resistance.
Designed for a maximum current rating of 3 A suitable for low power electronic connections.
Features a crimp termination type ensuring secure wire connection.
Operates reliably within a temperature range of -25°C to 85°C.
Maximum contact resistance is low at 20 milliohms for optimal electrical performance.
Compliant with no specific standards or approvals listed.
Manufactured in China maintaining consistent quality.

Product Description

The JST SXH-001T-P0.6 is a female crimp terminal specially engineered for XH series connector housings, making it ideal for reliable PCB and wire housing connections.

Constructed from durable phosphor bronze material with tin plating, this terminal offers excellent electrical conductivity and corrosion resistance, ensuring long-term stable performance in electronic assemblies.

It accommodates wire sizes from 28 AWG minimum to 22 AWG maximum, supporting a current rating of up to 3 amperes, making it suitable for a range of low-current applications within electronic, industrial, and manufacturing environments.

The terminal features a crimp termination style that enables secure and robust cable connection, reducing risk of disconnection due to vibration or mechanical stress. Its operating temperature ranges from -25°C to 85°C, which allows use in varied industrial and commercial applications including consumer electronics, instrumentation, and control systems.

The maximum contact resistance is kept low at 20 milliohms, ensuring minimal signal loss and stable connectivity in sensitive electronic circuits. While it carries no specific certifications or approvals, its design meets standard industry requirements for crimp contacts.

This component is manufactured in China and supplied typically as tape, simplifying automated insertion processes and boosting production line efficiency. Constructed from phosphor bronze with tin plating for corrosion resistance.

Supports wire sizes from 28 AWG to 22 AWG with 3A current rating. Reliable crimp termination type for secure wire connection. Operates from -25°C to 85°C temperature range. Low maximum contact resistance of 20 milliohms for optimum conductivity.

Made for use in electronic assemblies and industrial control systems. Supplied as tape for efficient automated assembly.
