Finder 84 Series DIN Rail Timer Relay, 2-Contact, 110 to 240 V DC/AC, 0.1 s to 9999 h, DPDT, Multifunction 84.02.0.230.0000

Free Delivery in India | Lowest Global Shipping Charges

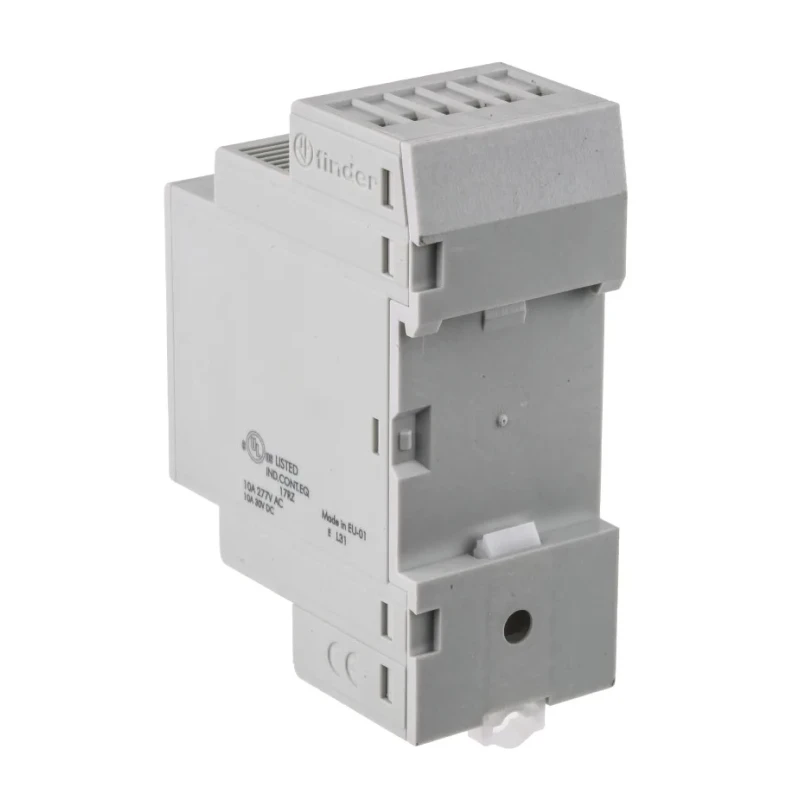

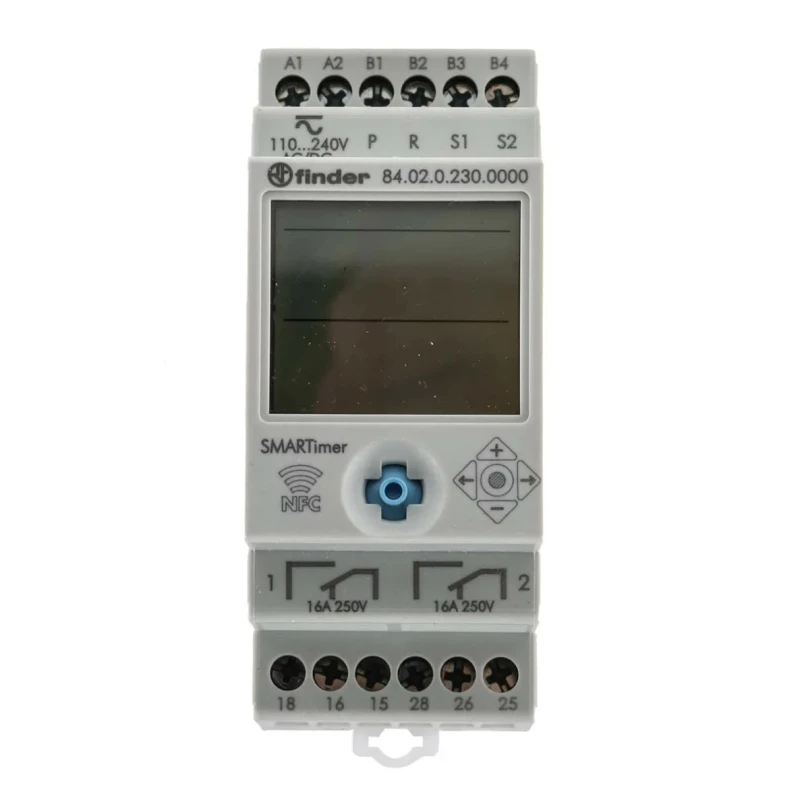

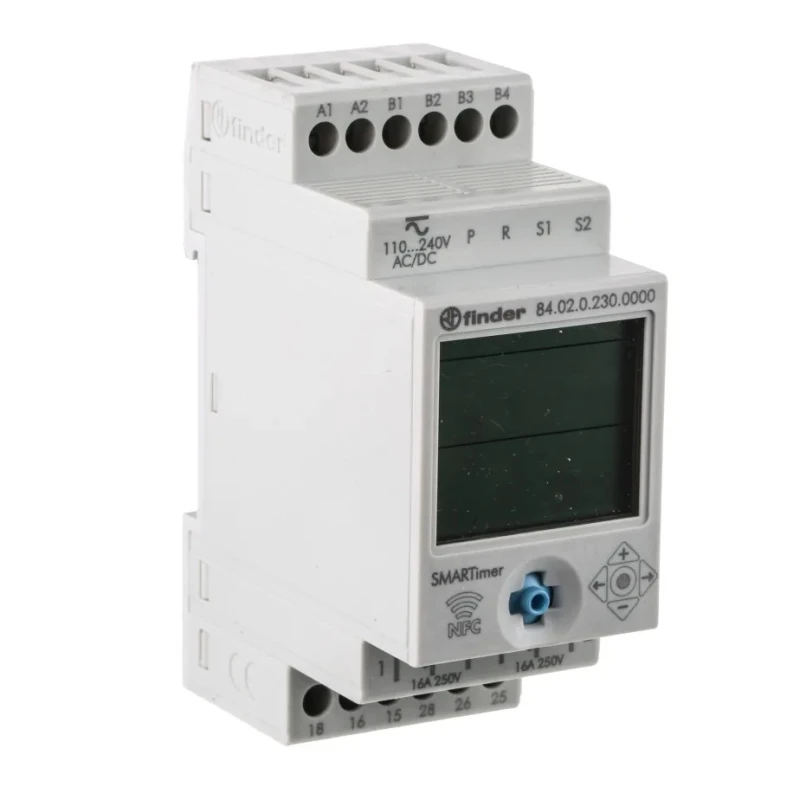

Finder 84 Series DIN Rail Timer Relay, 2-Contact, 110 to 240 V DC/AC, 0.1 s to 9999 h, DPDT, Multifunction 84.02.0.230.0000

Name: Finder 84 Series DIN Rail Timer Relay, 2-Contact, 110 to 240 V DC/AC, 0.1 s to 9999 h, DPDT, Multifunction 84.02.0.230.0000
Brand: FINDER
SKU: 141226
Price: 238.84 USD
Availability: InStock



Category Timer Relays Brand FINDER Condition New

Specifications

Country of Origin	Italy
Brand	Finder
Height	88.8mm
Function	Timer
Length	35mm
IP Rating	IP20
Mode	Multifunction
Width	60.8mm
Mount Type	DIN Rail
Series	84
Maximum Operating Temperature	50°C
Contact Configuration	DPDT
Minimum Operating Temperature	-20°C
Time Range	0.1 s to 9999 h
Terminal type	Screw
Number of Contacts	2
Number of Timer Functions	Multifunction
Switching Voltage	400V ac
Contact Current	30A
Supply DC Voltage	110 to 240 V dc
Supply AC Voltage	110, 240V ac

Key Features

Supports multifunction timer settings from 0.1 seconds to 9999 hours.
2-contact DPDT configuration enables versatile switching.
Compatible with supply voltages of 110 to 240 V AC or DC.
Compact DIN rail mount design with 60.8mm width, 88.8mm height, and 35mm length.
Programmable via joystick or NFC-enabled smartphone.
Backlit display provides clear visibility during operation.
Direct compatibility with PNP and NPN proximity sensors.
Rated for contact current up to 30 A and switching voltage up to 400 V AC.

Product Description

Finder 84.02.0.230.0000 is a multifunction DIN rail timer relay designed for precise timing applications in industrial and commercial automation.

It supports a flexible time range from 0.1 seconds to 9999 hours and features a 2-contact DPDT configuration capable of handling a contact current of 30 A and switching voltages up to 400 V AC. This relay is powered by a broad operating voltage range from 110 to 240 V AC or DC, delivering versatile applicability.

The compact design (60.8mm wide, 88.8mm high, 35mm long) allows easy DIN rail mounting, conserving space in control panels. The relay includes a backlit display that provides clear visibility during programming and operation. Programming can be performed via a joystick interface or conveniently through NFC-enabled smartphones, enhancing user flexibility.

It directly supports both PNP and NPN proximity sensors, enabling seamless integration into automated systems. Protection level is IP20, and the relay operates reliably within the temperature range from -20°C to 50°C, making it suitable for harsh industrial environments.

Common applications include timing control in automatic car washes, industrial furnaces, labelling machines, building lighting, swimming pools, nightclubs, and various power tools like punchers and sanders.

The dual independent channels allow simultaneous operation and increased productivity in automation processes. Supports multifunction timer settings from 0.1 seconds to 9999 hours. 2-contact DPDT configuration for flexible switching options.

Wide supply voltage range: 110 to 240 V AC/DC. Compact form factor with DIN rail mounting capability. Clear backlit display for programming and display clarity. Smartphone NFC and joystick programmable interfaces. Compatible with PNP and NPN proximity sensors.

Rated contact current of 30 A and switching voltage of 400 V AC. IP20 rated for protection against solid objects. Operating temperature between -20°C and 50°C. Explore the full range of Finder Timer Relays and other automation products at EnvMart to optimize your industrial and commercial automation needs.
