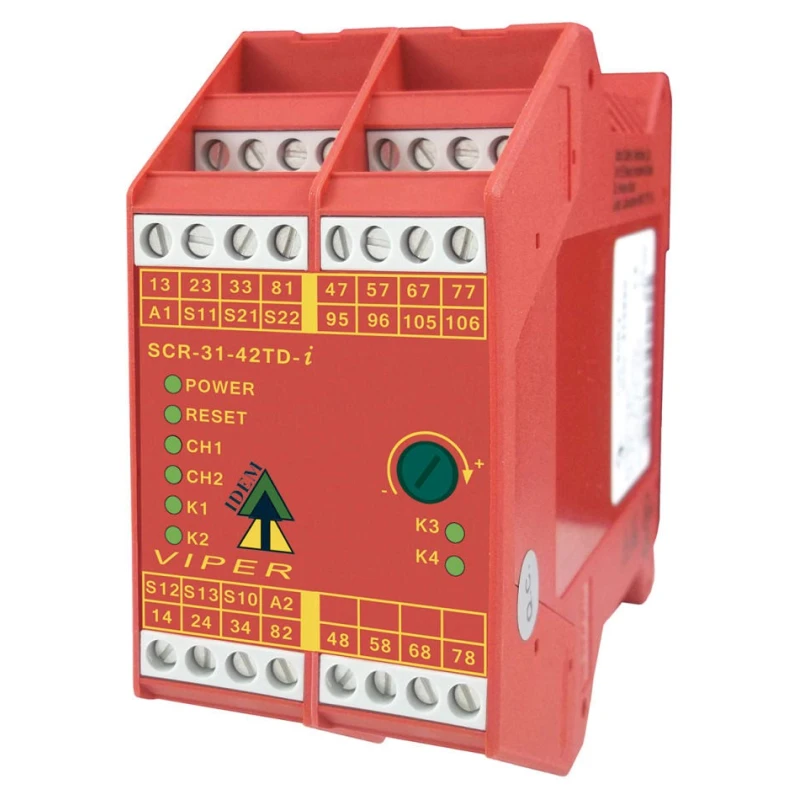

IDEM SCR-31-42TD-i Pluggable Terminals 24V ac/dc Safety Relay with 7 Safety Contacts and 3 Auxiliary Contacts 280006-P

Free Delivery in India | Lowest Global Shipping Charges

IDEM SCR-31-42TD-i Pluggable Terminals 24V ac/dc Safety Relay with 7 Safety Contacts and 3 Auxiliary Contacts 280006-P

Name: IDEM SCR-31-42TD-i Pluggable Terminals 24V ac/dc Safety Relay with 7 Safety Contacts and 3 Auxiliary Contacts 280006-P
Brand: IDEM
SKU: 141214
Price: 626.06 USD
Availability: InStock



Category Safety Relay Brand IDEM Condition New

Specifications

Country of Origin	United Kingdom
Power Consumption	5W
Brand	IDEM
Height	99mm
Length	45mm
Model	280006-P
Width	111mm
Mount Type	DIN Rail
Series	SCR-31-42TD-i Pluggable Terminals
Maximum Operating Temperature	55°C
Time Delay	0 to 30 s
Minimum Operating Temperature	-20°C
Terminal type	Plug-In
Reset Method	Automatic & Manual
Coil Voltage	24V ac/dc
Switching DC Voltage	24V dc
Switching AC Voltage	250V ac
Contact Current	8A
Safety Contacts	7
Number of Auxiliary Contacts	3

Key Features

The relay includes 3 auxiliary contacts supporting enhanced control operations.
Features plug-in terminals for easy wiring and DIN rail mount for secure installation.
Supports configurable time delay from 0 to 30 seconds to match safety requirements.
Operates reliably over a temperature range of -20°C to 55°C.
Designed to handle 8A contact current at 250V AC and 24V DC switching voltages.
Includes both automatic and manual reset methods to suit various applications.
Complies with multiple international safety standards including EN ISO 13849-1 and UL508.
Compact dimensions of 99mm height, 45mm length, and 111mm width for efficient panel space use.

Product Description

IDEM 280006-P SCR-31-42TD-i pluggable terminals safety relay operates at 24V ac/dc coil voltage with 7 safety contacts and 3 auxiliary contacts. This safety relay is designed for industrial automation and safety applications, providing reliable operation with enhanced LED diagnostics and simplified wiring.

Featuring plug-in terminals and 45 mm DIN rail mounting, it supports single or dual channel operation. The relay has configurable delay settings from 0 to 30 seconds, enabling flexible safety system design.

Operating temperature range is from -20°C to 55°C, making it suitable for varied industrial environments. Contact current rating is 8A with switching capabilities of 250V ac and 24V dc, ensuring safety circuit load management.

The relay incorporates both automatic and manual reset methods and meets numerous standards such as EN ISO 13849-1, EN 62061, UL508, and TÜV Rheinland certification, emphasizing compliance with latest safety requirements.

The device facilitates wiring expansion via additional safety output contacts. Typical uses include safety interlock switches, emergency stop devices, and door guard monitoring in industrial control panels. Compact form factor optimizes panel space without sacrificing functionality.

Professional-grade quality ensures long-term durability and reliable safety operation.

This product is manufactured in the United Kingdom and is a trusted component for industrial electrical safety systems. Explore EnvMart’s comprehensive range of Safety Relays for varied industrial automation needs.
