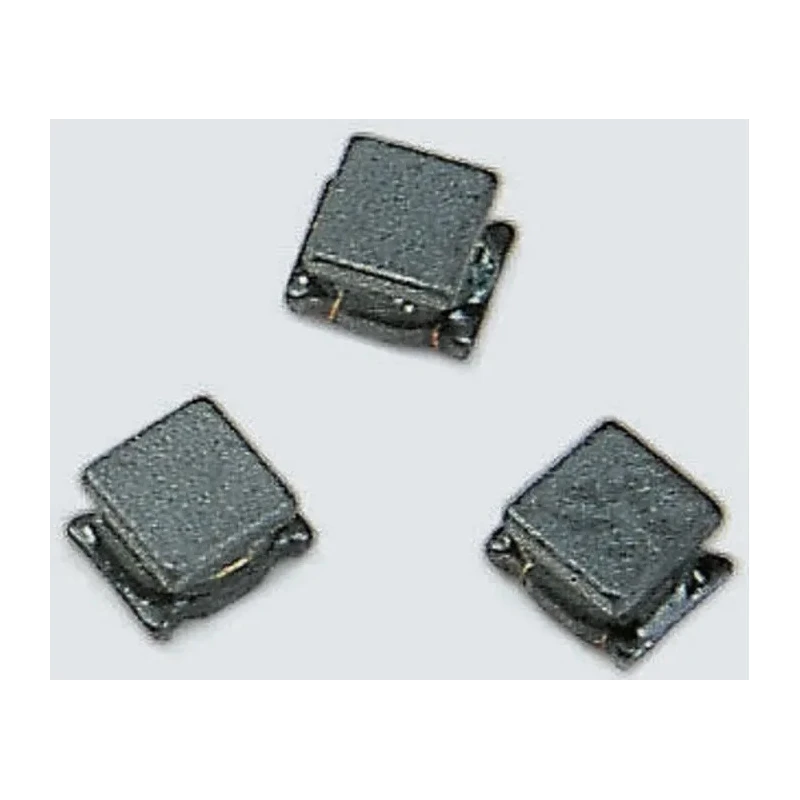

Murata Wirewound Surface Mount Inductor with Ferrite Core 47 μH ±5 % 220 mA Idc Q:35 LQH43MN470J03L

Free Delivery in India | Lowest Global Shipping Charges

Murata Wirewound Surface Mount Inductor with Ferrite Core 47 μH ±5 % 220 mA Idc Q:35 LQH43MN470J03L

Name: Murata Wirewound Surface Mount Inductor with Ferrite Core 47 μH ±5 % 220 mA Idc Q:35 LQH43MN470J03L
Brand: Murata
SKU: 140853
Price: 0.22 USD
Availability: InStock



Category Surface Mount Inductor Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Height	2.6mm
Length	4.5mm
Model	LQH43MN470J03L
Depth	3.2mm
Packaging	Embossed Tape
Series	LQH
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	47μH
Standards/Approvals	RoHS
Package/Case	1812
Maximum DC Current	220mA
Pin Count	2
Maximum DC Resistance	1.5Ω
Inductance Tolerance	±5 %
Termination Style	Solder
Maximum Self Resonant Frequency	10MHz
Minimum Quality Factor	35
Inductor Construction	Wirewound

Key Features

The inductor supports a maximum DC current of 220 mA.
Constructed with a ferrite core and wirewound design for high quality and low DC resistance of 1.5 Ω.
Rated for operation from -40°C up to 85°C maximum temperature.
Features solder termination style and RoHS compliant standards.
Unshielded design suitable for high frequency applications up to 10 MHz self-resonant frequency.
The quality factor is rated minimum 35 ensuring optimal performance.
Packaging is embossed tape for easy surface mount assembly.

Product Description

Murata LQH43MN470J03L is an unshielded wirewound surface mount inductor designed around a ferrite core, providing inductance of 47 μH with ±5% tolerance, suited for demanding electronic component applications.

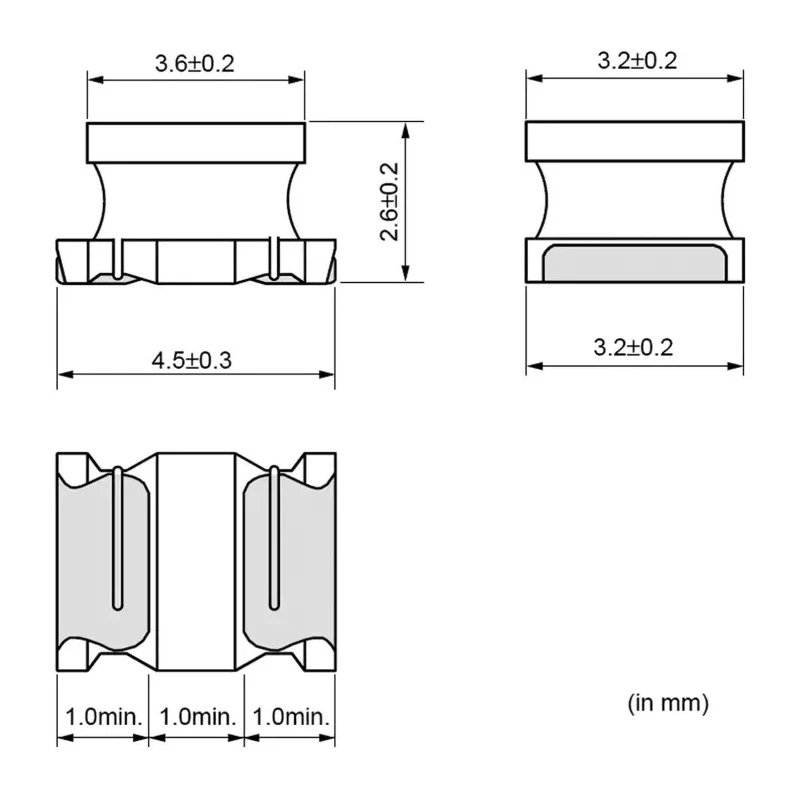

This 1812 size inductor measures 4.5 mm in length, 2.6 mm in height, and 3.2 mm in depth, optimized for surface mount technology (SMT) assembly processes. Capable of handling a maximum DC current of 220 mA while maintaining a low DC resistance of 1.5 Ω, it ensures high efficiency in power and signal conditioning circuits.

The operating temperature range spans from -40°C to 85°C, making it suitable for use in various industrial and commercial electronic devices requiring reliability under temperature variations.

Its termination style uses solder, facilitating secure PCB mounting, and complies with RoHS directives ensuring environmental safety.

The inductor's resonant frequency reaches up to 10 MHz, making it suitable for high-frequency filtering and noise suppression in telecommunications, computing, automotive electronics, and power management modules.

Manufactured in Japan with a molded wirewound construction, the LQH series is renowned for high quality, low DC resistance, and excellent current handling capabilities, ideal for compact power supply and signal filtering applications.

The inductor supports a maximum DC current of 220 mA. Compact 1812 package facilitates easy surface mounting. Molded ferrite core provides durability and high-frequency performance. Rated for -40°C to 85°C operational temperature.

RoHS compliant ensuring environmental conformity. Low DC resistance of 1.5 Ω optimizes energy efficiency. Designed for high frequency up to 10 MHz self-resonant frequency. Minimum quality factor of 35 guarantees signal integrity.

This product is ideal for industrial, electronic manufacturing, telecommunications, automotive, and power management applications where precision inductance and reliability are critical. Access a reliable, high-performance surface mount inductor with Murata's LQH43MN470J03L model.
