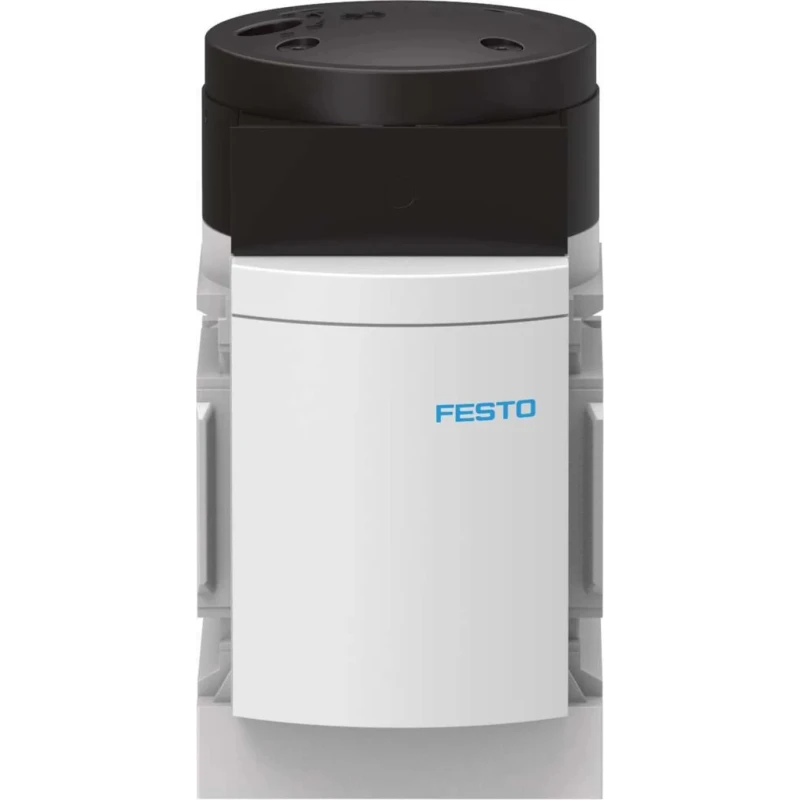

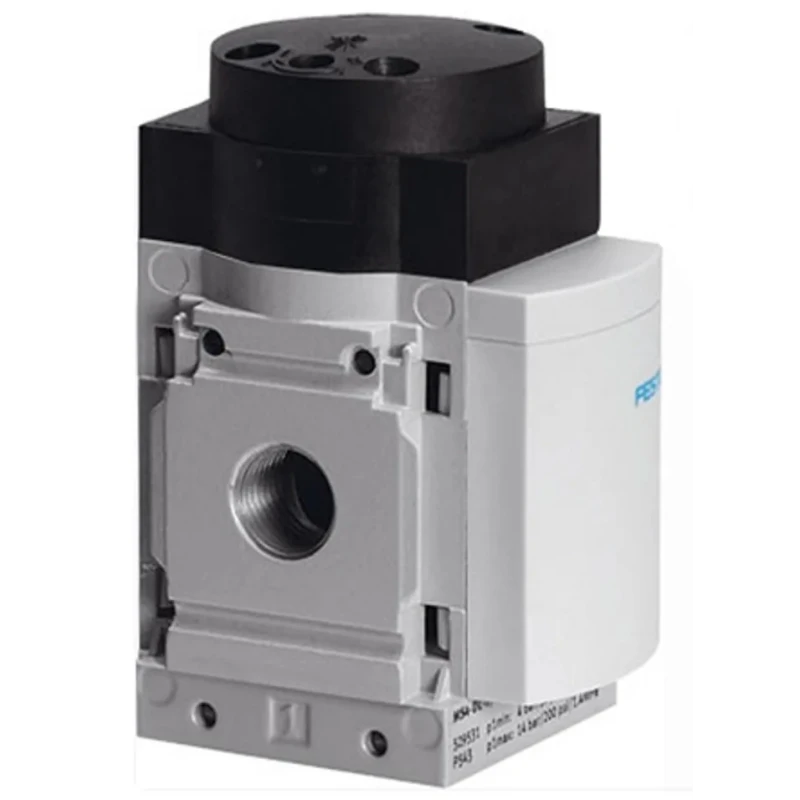

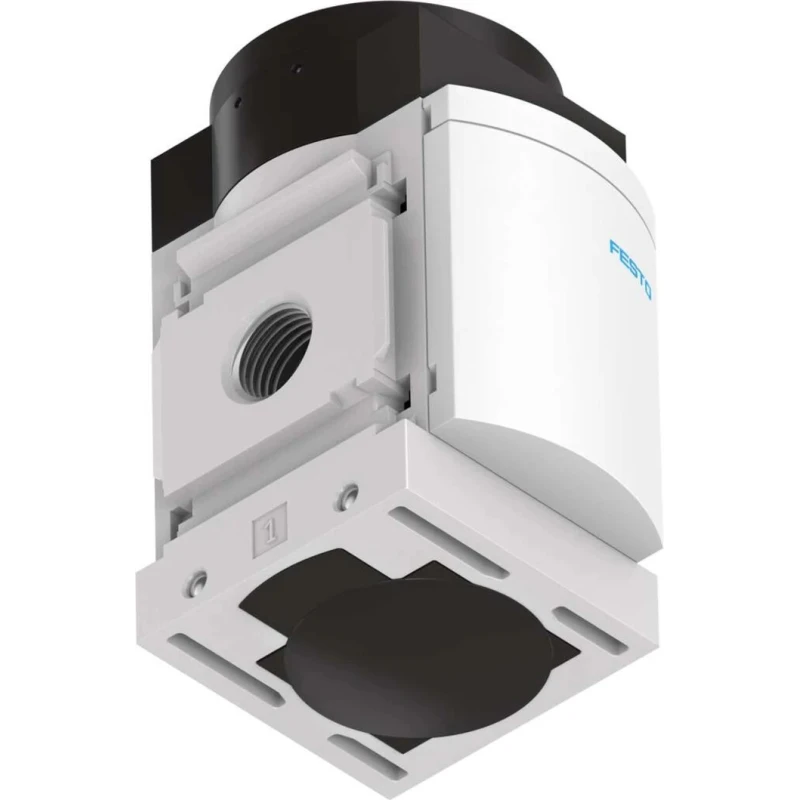

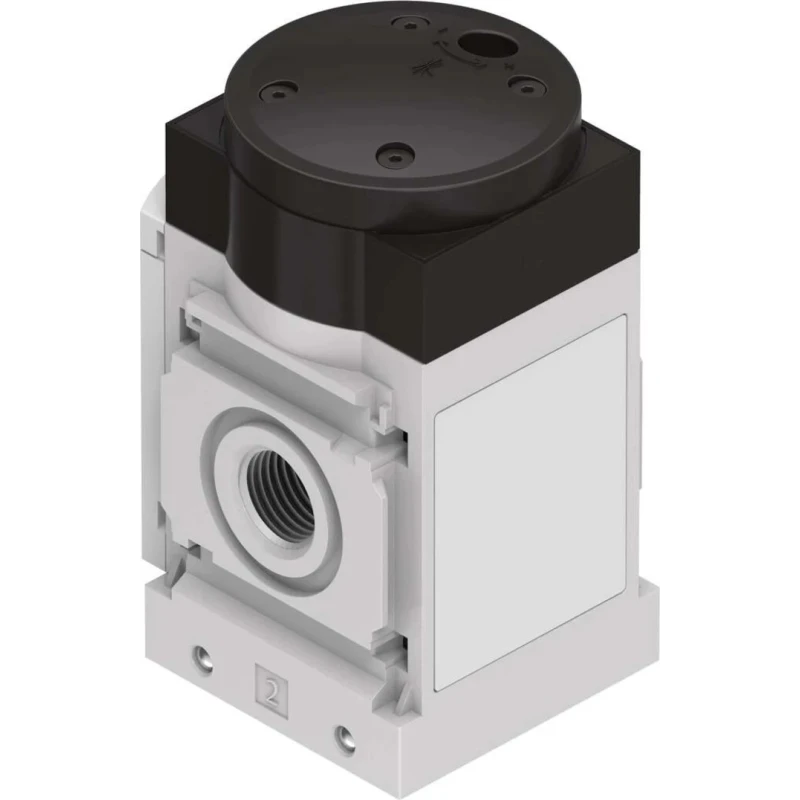

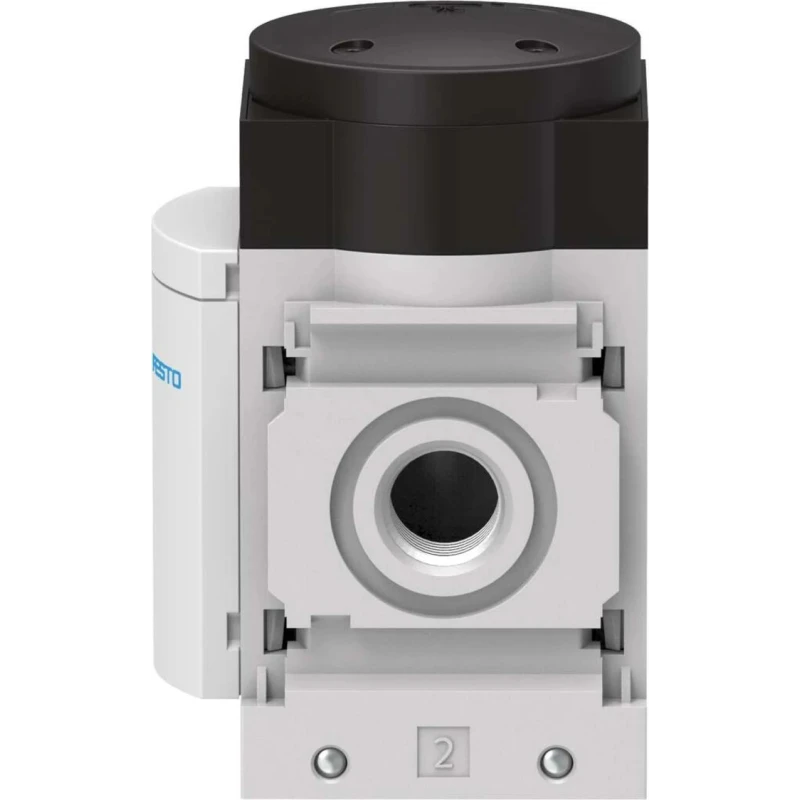

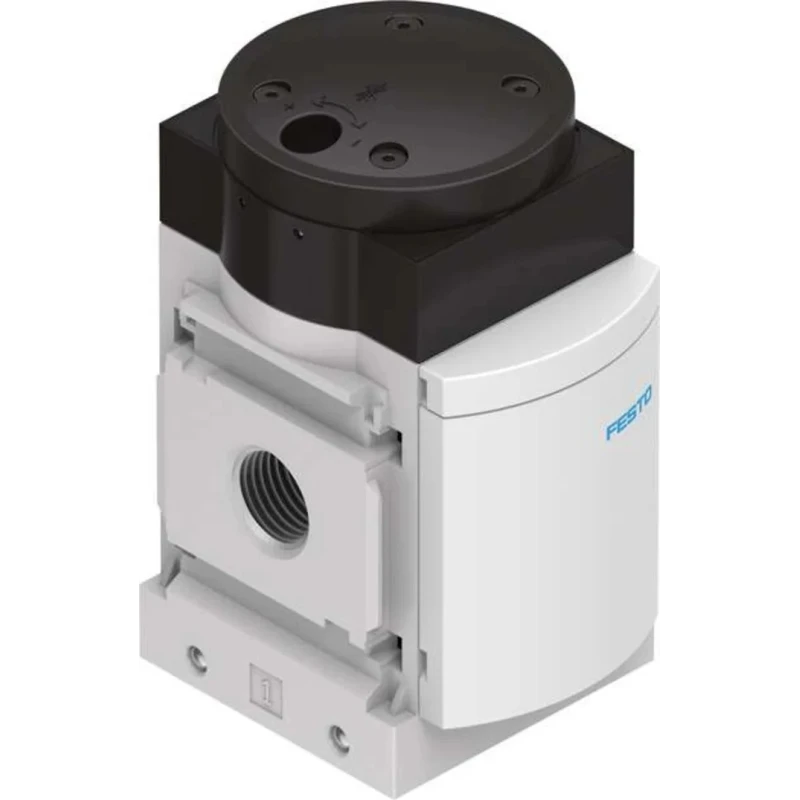

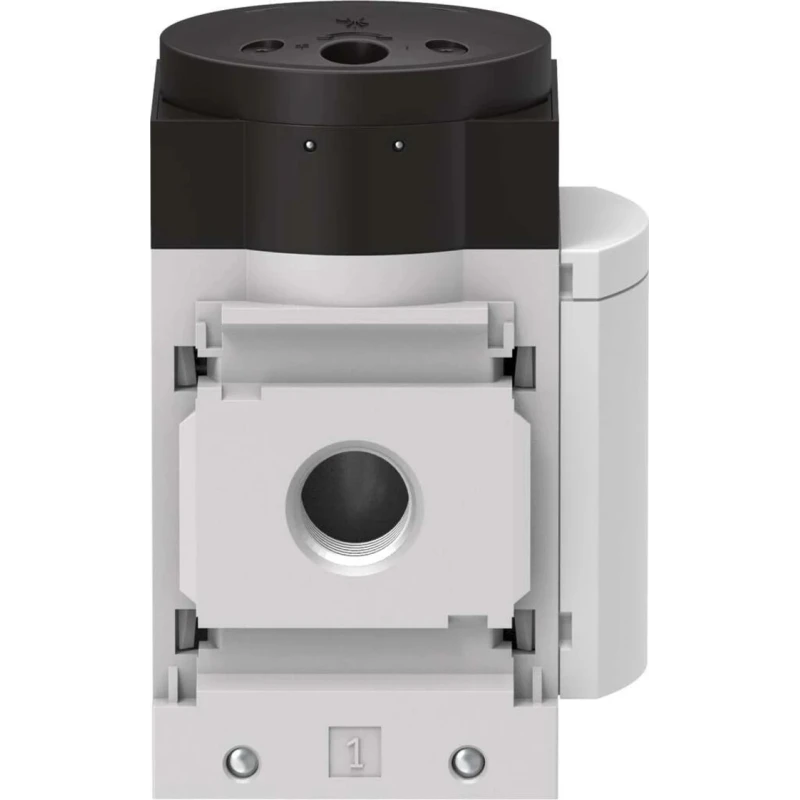

Festo Pneumatic Solenoid Valve Pilot/Spring G 1/2 in Port Size, 18 bar Pressure, Aluminium Body MS6-DL-1/2

Festo MS6-DL-1/2 Pneumatic Solenoid Valve pilot/spring type featuring a 1/2 inch G-threaded pneumatic port connection, designed for controlling airflow direction in pneumatic systems with a maximum operating pressure of 18 bar and a flow rate up to 6450 L/min. The aluminium die-cast body offers corrosion resistance, supporting long-term durability in industrial applications such as packaging facilities, automated systems, and component manufacturing.

This valve functions as a 2/2 directional valve with two positions, enabling precise left-to-right airflow control. The Nitrile Rubber (NBR) seal material effectively blocks contaminants, ensuring smooth operation even in contaminated environments. It withstands temperatures ranging from -10°C to 60°C, making it suitable for harsh industrial conditions.

Mounting can be performed in any direction using inline installation or with an MS6-WP wall bracket. Its slim dimensions allow for space-efficient setups in dense equipment arrangements. The valve requires a minimum pilot pressure of 4 bar and complies with RoHS standards, emphasizing environmental and safety compliance.

Maximum operating pressure of 18 bar for diverse pneumatic applications. High flow rate of 6450 L/min suitable for powerful tools and motors. Durable aluminium die-cast construction ensures corrosion resistance. Nitrile Rubber seals enhance reliability by preventing debris interference.

Wide operating temperature from -10°C up to 60°C. Pilot/spring actuation guarantees controlled valve switching. Compact dimensional footprint of 62 x 108 x 76 mm for flexible installation. In-line mounting with options for wall bracket attachment.

Two ports and two positions for effective pneumatic circuit control. Manufactured in Hungary, meeting industrial certification requirements.

This Pneumatic Solenoid Valve is ideal for industrial, manufacturing, packaging, and automated system applications where reliable airflow control is critical. Festo's MS6-DL-1/2 model combines robust mechanical design with operational precision for seamless integration into sophisticated pneumatic setups.
