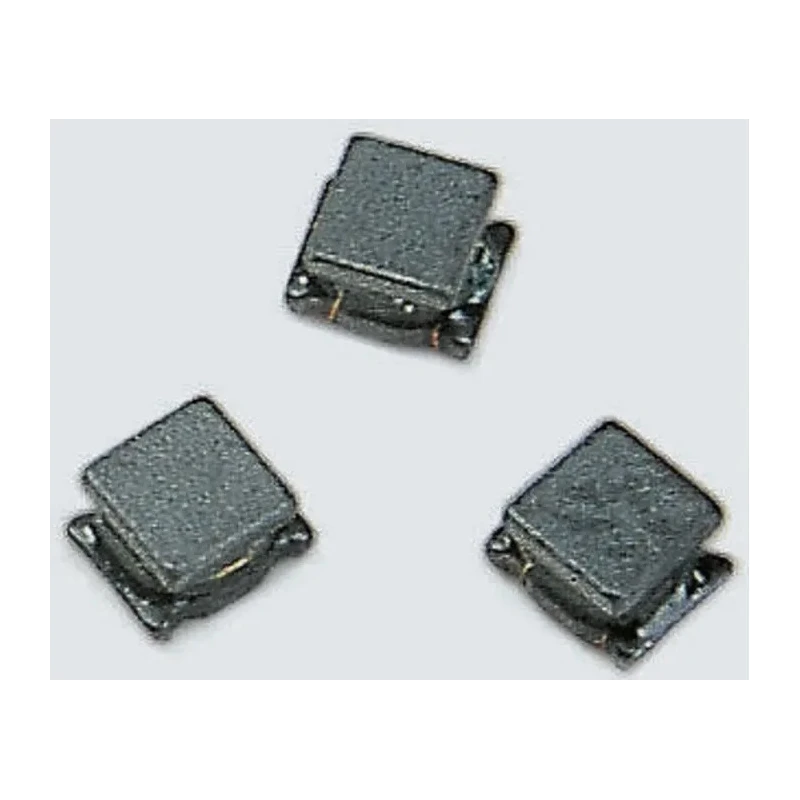

Murata Wirewound Surface Mount Inductor 15 μH ±10% 300 mA 1210 Package Ferrite Core LQH32CN150K53L
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.7mm |
| Length | 3.2mm |
| Model | LQH32CN150K53L |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 300mA |
| Pin Count | 2 |
| Maximum DC Resistance | 580mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 26MHz |
| Inductor Construction | Wirewound |
Key Features
- Features a ferrite core that ensures high temperature stability.
- Constructed in a compact 1210 package size suitable for surface mounting.
- Boasts a maximum DC resistance of 580 mΩ reducing power loss.
- RoHS compliant ensuring environmentally safe manufacturing.
- Operates reliably within a temperature range of -40°C to 85°C.
- Wirewound construction offers excellent inductive characteristics.
- Ideal for filtration applications in switch mode power supplies and other electronic circuits.
- Embossed tape packaging supports automated assembly processes.
Product Description
Murata LQH32CN150K53L is a high-quality wirewound surface mount inductor featuring a ferrite core with a nominal inductance of 15 μH ±10%. This compact 1210 package component is manufactured to provide stable performance under electrical and thermal stress, making it suitable for a broad range of industrial and commercial electronic applications.
The inductor has a maximum DC current rating of 300 mA and a low maximum DC resistance of 580 mΩ, resulting in reduced voltage drop and efficient current handling. With a self resonance frequency of 26 MHz, it performs well in high-frequency circuits. It supports operating temperatures from -40°C to 85°C ensuring robust durability in harsh environments.
Constructed with a wirewound coil and ferrite core, this component offers precise inductance stability and reduced electromagnetic interference without shielding. The solder termination style allows for easy surface mounting on printed circuit boards. Packaged in embossed tape, it supports automated pick-and-place equipment for streamlined production.
This inductor series is RoHS compliant, confirming adherence to environmental and safety regulations. It is ideally suited for filtration applications in switching power supplies, industrial instrumentation, telecommunications equipment, and various electronic devices requiring efficient inductive components.
Features a ferrite core for high temperature stability and low DC resistance. Compact 1210 package allows for space-saving board design. Embossed tape packaging facilitates automated PCB assembly. Wide operating temperature range ensures reliable performance.
Wirewound design provides excellent inductive characteristics without shielding. Suitable for industrial electronics, power supplies, and communication devices. Meets RoHS standards for environmental safety and compliance.
Explore additional Murata Surface Mount Inductors and related components to meet various electronic design requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 15 μH with a tolerance of ±10%.
This inductor has a maximum DC current rating of 300 mA.
The maximum DC resistance is 580 mΩ, which helps reduce power loss.
It operates reliably within a temperature range of -40°C to 85°C.
The maximum self-resonant frequency of this inductor is 26 MHz.
This inductor is housed in a compact 1210 package size.
It features a ferrite core, which ensures high temperature stability.
The termination style is solder, allowing for easy surface mounting on printed circuit boards.
It is packaged in embossed tape, which supports automated pick-and-place assembly processes.
This model uses a wirewound construction, providing excellent inductive characteristics.
Yes, it is RoHS compliant, ensuring it meets environmental and safety regulations.
It is ideally suited for filtration applications in switching power supplies and various electronic devices.
