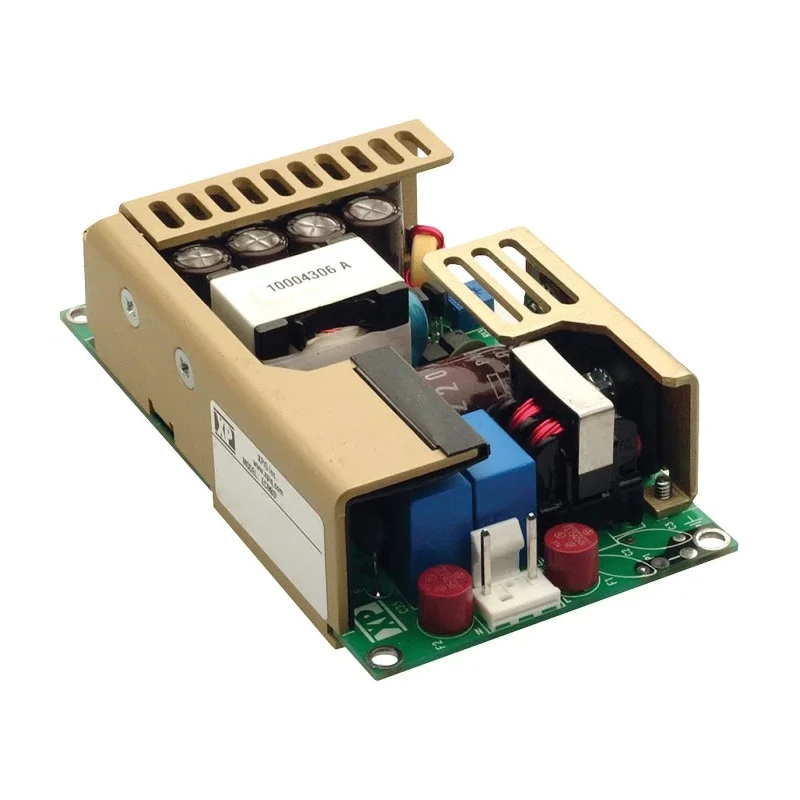

XP Power ECM100UT31 Switching Power Supply 3 Output 12V DC 100W 264V AC Chassis Mount ECM100UT31

Free Delivery in India | Lowest Global Shipping Charges

XP Power ECM100UT31 Switching Power Supply 3 Output 12V DC 100W 264V AC Chassis Mount ECM100UT31

Name: XP Power ECM100UT31 Switching Power Supply 3 Output 12V DC 100W 264V AC Chassis Mount ECM100UT31
Brand: XP Power
SKU: 140607



Category Switching Power Supplies Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	100W
Efficiency	85%
Length	114.3mm
Model	ECM100UT31
Depth	27mm
Gross Weight	180g
Width	63.5mm
Mount Type	Chassis
Series	ECM
Maximum Operating Temperature	70°C
Minimum Operating Temperature	0°C
Number of outputs	3
Maximum Input Voltage	264V ac
Maximum Output Voltage	12V dc
SMPS Output Current	10A
Minimum Input Voltage	120, 90V dc

Key Features

Compact open frame design measuring 114.3mm length, 63.5mm width, and 27mm depth.
Wide operating temperature range from 0°C to 70°C ensures stable performance.
High efficiency of approximately 85% reduces energy loss and heat generation.
Supports a maximum input voltage of 264V AC and minimum input voltages of 120V and 90V DC.
Certified to multiple standards including CSA-22.2 No.60601-1, UL 60950-1, EN 55022, and FCC.
Convection cooled design with 10A SMPS output current for robust operation.
Class I and Class II constructions available ensuring suitability for medical and IT equipment.

Product Description

XP Power ECM100UT31 is a high-performance switching power supply designed for industrial and medical applications requiring reliable and efficient AC to DC conversion. It features a 3-output system delivering 12V DC at a total power of 100W, ideal for chassis mounting in compact spaces.

This power supply operates efficiently, with about 85% efficiency to minimize energy loss and thermal stress. Its open frame design measures 114.3mm in length, 63.5mm in width, and 27mm in depth, making it suitable for integration into equipment where space is constrained.

The operating temperature range of 0° to 70°C allows for versatility in various environments. It supports an input voltage range from 120V DC or 90V DC minimum up to a maximum of 264V AC, providing flexibility for different power sources.

XP Power’s ECM100UT31 complies with multiple stringent standards such as CSA-22.2 No.60601-1, UL 60950-1, EN 55022, EN 60601-1, EN 60601-1-2, EN 60950-1, EN 61000-3-2, EN 61000-3-3, and FCC 20780, making it suitable for IT and medical device applications requiring certified power supplies.

Compact open frame design measuring 114.3mm by 63.5mm by 27mm. High efficiency of 85% ensures reduced energy consumption. Wide input voltage range from 120/90V DC minimum to 264V AC maximum. Supported operating temperature range from 0°C to 70°C for reliable use in varying conditions.

Certified to international standards for safety and electromagnetic compliance. Supports multiple outputs with a DC output current of 10A for robust power delivery. Convection cooled design eliminates the need for additional fans.

This switching power supply is suited for demanding industrial, manufacturing, medical, laboratory, and IT hardware installations where stable DC power and compliance are critical. Its sturdy chassis mount construction and compliance with medical and IT standards make it a dependable choice for system integrators and equipment manufacturers.
