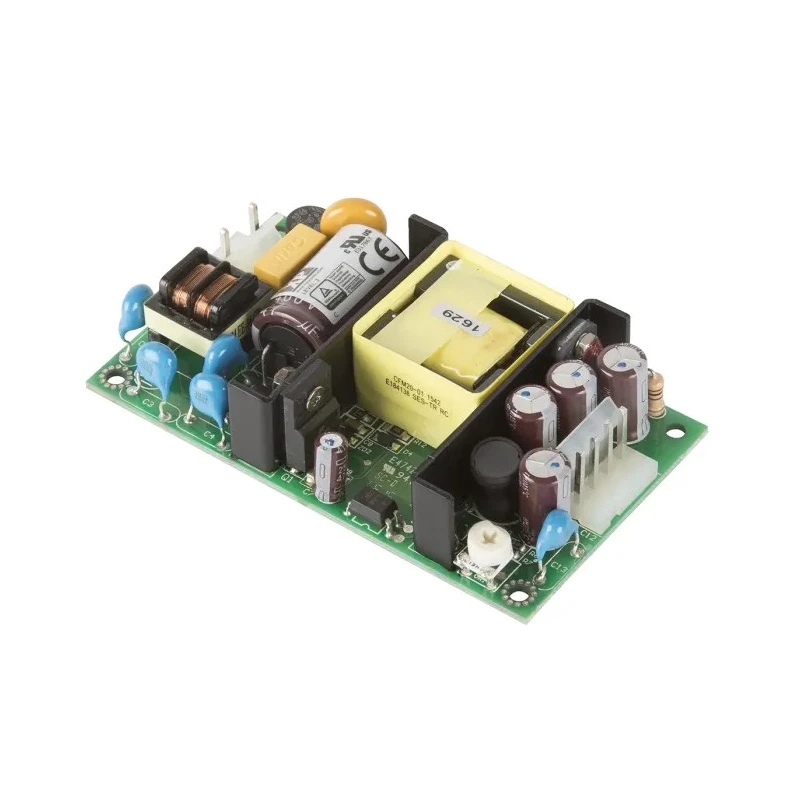

XP Power CU20-09 Switching Power Supply 9V DC 20W Chassis Mount CE Certified CU20-09

Free Delivery in India | Lowest Global Shipping Charges

XP Power CU20-09 Switching Power Supply 9V DC 20W Chassis Mount CE Certified CU20-09

Name: XP Power CU20-09 Switching Power Supply 9V DC 20W Chassis Mount CE Certified CU20-09
Brand: XP Power
SKU: 140602



Category Switching Power Supplies Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Power	20W
Efficiency	77%
Length	88.9mm
Model	CU20-09
Depth	20.32mm
Gross Weight	60g
Width	50.8mm
Mount Type	Chassis
Series	CU20
Maximum Operating Temperature	65°C
Minimum Operating Temperature	0°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	9V dc
SMPS Output Current	4.4A
Minimum Input Voltage	85V ac

Key Features

Provides a maximum output voltage of 9V DC with a current capacity of 4.4A.
Designed for universal AC input voltage range from 85V to 264V.
Features a high efficiency of 77% for energy-saving operation.
CE and UL certified for safety and electromagnetic compatibility.
Operates within a temperature range of 0°C to 65°C suitable for various environments.
Small form factor with dimensions 88.9mm length, 50.8mm width, and 20.32mm depth.
Incorporates peak load capability for up to 30 seconds, ensuring reliability under transient loads.
Designed for PCB mounting applications with single fixed output voltage.

Product Description

XP Power CU20-09 Switching Power Supply is a high-quality 20W AC-DC power supply designed for reliable operation in electronics and industrial applications. Featuring a 9V DC output voltage and 4.4A current, the CU20-09 ensures stable power delivery for devices requiring fixed voltage supply. The power supply supports a universal AC input range from 85V up to 264V, making it suitable for use worldwide.

Its chassis mount design and small dimensions (88.9mm x 50.8mm x 20.32mm) allow easy integration into compact spaces, suitable for PCB mounting applications. Operating temperature range is from 0°C to 65°C, designed to work efficiently in varied environments without performance degradation.

This model achieves an efficiency of 77%, which helps reduce energy consumption and heat generation. Safety and compliance are ensured with approvals including CE, UL 60950-1, FCC Level B, and various EMI standards (EN 55022 Class B, EN 61000-4-x series), guaranteeing electromagnetic compatibility and user safety.

The CU20 series supports peak load capability of up to 30 seconds allowing the device to handle transient power surges without damage, providing robustness in demanding applications.

Applications of the XP Power CU20-09 include industrial control systems, telecommunications equipment, laboratory instruments, and other electronic devices requiring a compact and reliable switching power supply.

Provides a maximum output voltage of 9V DC with a current capacity of 4.4A. Designed for universal AC input voltage range from 85V to 264V. Features a high efficiency of 77% for energy-saving operation. CE and UL certified for safety and electromagnetic compatibility.

Operates within a temperature range of 0°C to 65°C suitable for various environments. Small form factor with dimensions 88.9mm length, 50.8mm width, and 20.32mm depth. Incorporates peak load capability for up to 30 seconds, ensuring reliability under transient loads.

Designed for PCB mounting applications with single fixed output voltage. Compact and rugged design by XP Power CU20 series for industrial and electronic uses. Explore a comprehensive range of Switching Power Supplies on EnvMart to suit your industrial and electronic power requirements.
