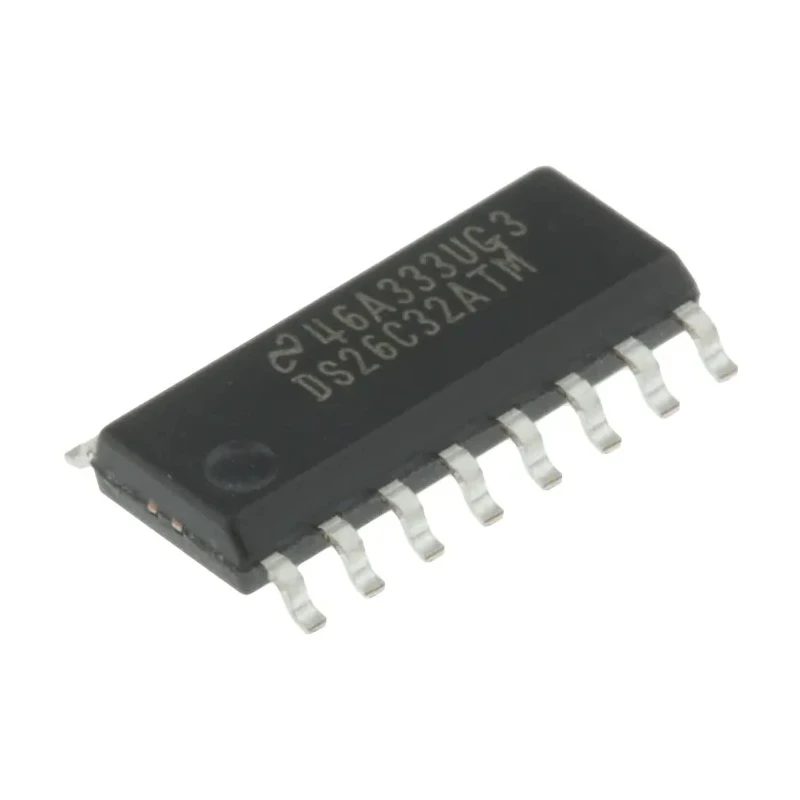

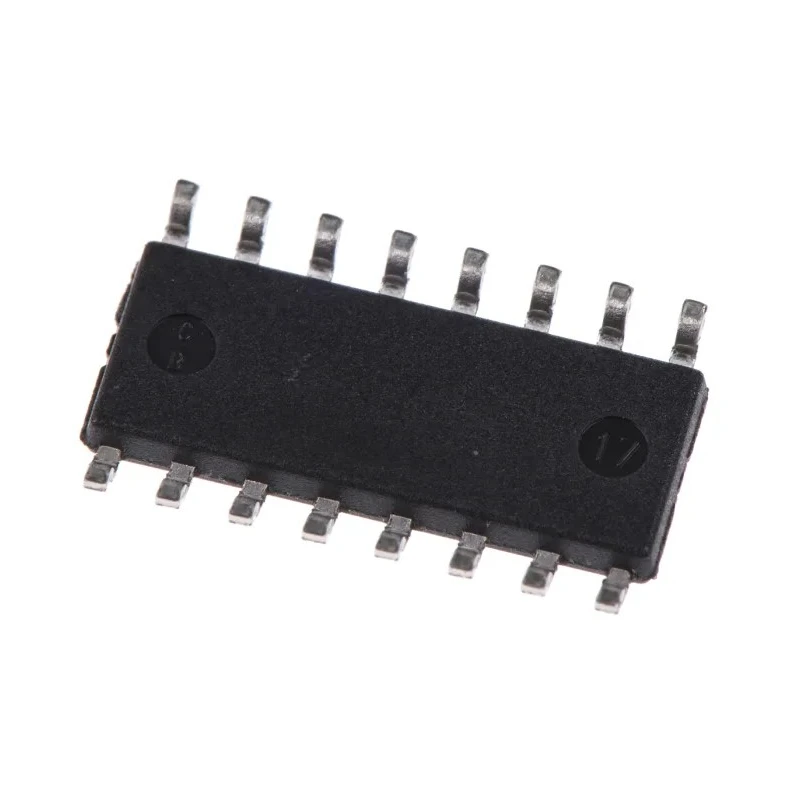

Texas Instruments DS26C32ATM/NOPB Line Receiver 3 State 16-Pin SOIC CMOS 4.5V-5.5V DS26C32ATM/NOPB

Texas Instruments DS26C32ATM/NOPB line receiver is a technologically advanced interface IC designed for robust RS-422 communication applications. This receiver utilizes a CMOS logic family and is housed in a compact 16-pin SOIC surface mount package with dimensions of 10mm length, 6.2mm width, and 1.75mm height, making it suitable for high-density electronic assemblies.

Operating within a supply voltage range of 4.5V to 5.5V, the device features a 3-state output that supports connection to multiple devices on a shared bus architecture, thereby improving system scalability and flexibility. Its differential input characteristics provide enhanced noise immunity, ideal for industrial and automation environments where reliable signal integrity is critical.

The DS26C32ATM/NOPB maintains performance over a broad operating temperature range from -40°C up to 85°C, suitable for harsh operating conditions found in industrial and commercial electronics. With a maximum propagation delay time of 30 nanoseconds at the specified load, it supports fast data transmission while consuming a nominal supply current of 23mA to maintain efficient power usage.

Manufactured in the United States, this line receiver leverages high-quality production processes aligned with industry standards. It is part of the DS26C32AT series, extensively used in communication modules, industrial controls, and signal interface boards requiring differential line signal reception.

Applications include industrial automation, data acquisition systems, telecommunications equipment, and general-purpose electronic control systems. The SOIC package ensures easy surface mounting on PCBs for compact system design.

This line receiver operates with differential input signal in RS-422 standards. 3-state output enables multiple device connection with bus-oriented data transfer. Compact 16-pin SOIC surface mount package measuring 10mm x 6.2mm x 1.75mm.

Operates reliably over temperature range of -40°C to 85°C. Maximum propagation delay time is 30 nanoseconds at specified load capacitance. Supply current consumption is 23mA ensuring efficient power usage. Designed and made in United States, ensuring quality manufacturing standards.

Compatible with RS-422 line drivers and receivers for integrated digital communication applications. Explore more Line Interface ICs and semiconductor components suitable for varied industrial and electronics applications at EnvMart.
