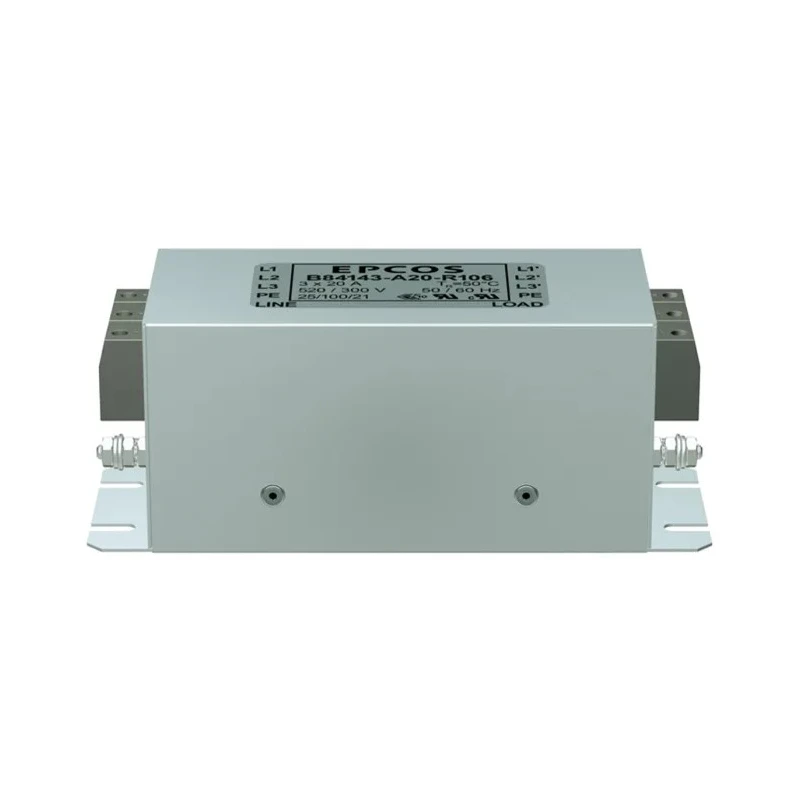

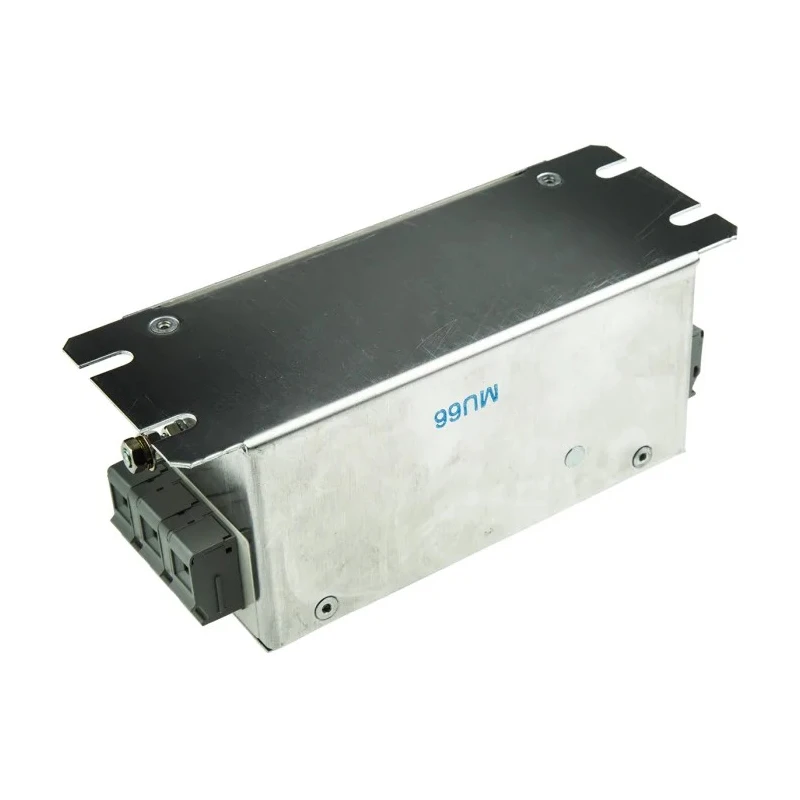

TDK Flange EMC Filter 20A 520V AC 50Hz/60Hz Screw Termination 3 Phase B84143A0020R106
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 58mm |
| Length | 150mm |
| Model | B84143A0020R106 |
| Depth | 57.5mm |
| Mount Type | Flange |
| Operating Frequency | 50, 60Hz |
| Series | B84143A*R106 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 3.3mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 20A |
| Number of Phases | 3 |
| Leakage Current | 3.1mA |
| Maximum Voltage | 520V ac |
| Standards/Approvals | UL 1283 |
| Termination Style | Screw |
| Applications include | Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies, Textile machines, Packaging machines and Machine - tools |
Key Features
- Easy to install three-line filter housed in a compact metal case.
- Optimized for long motor cables and full load operation.
- High insertion loss to reduce electromagnetic interference effectively.
- Leakage current optimized to 3.1mA for enhanced safety.
- Suitable for various industrial equipment such as elevators, pumps, conveyor systems, and HVAC systems.
- Compliance with IEC 60939 standards and UL 1283, CSA 22.2 No.8 approvals.
- Rated for IP 20 environmental protection.
- Compact dimensions of 150mm length, 58mm height, and 57.5mm depth.
Product Description
TDK B84143A0020R106 Flange EMC Filter is a high-performance electromagnetic compatibility filter designed for industrial applications requiring 3-phase filtering at 20 amps and 520 volts AC. It operates efficiently at 50Hz and 60Hz frequencies, making it suitable for global power standards. This filter features a sturdy flange mounting and screw termination style, housed in a compact metal case optimized for installation on long motor cables and ensuring robust operation under full load conditions.
With an optimized leakage current of just 3.1mA and a resistance of 3.3 milliohms, this filter ensures minimal power loss while maximizing electromagnetic noise suppression. It achieves high insertion loss to protect sensitive equipment from electromagnetic interference, meeting IEC 60939 standards and certified with UL 1283 and CSA 22.2 No.8 approvals, signifying reliability and safety compliance.
The filter is IP 20 rated for environmental protection against solid objects, suitable for indoor industrial environments such as manufacturing plants, HVAC systems, packaging machines, textile machinery, and various machine tools. Its compact dimensions (150 mm length x 58 mm height x 57.5 mm depth) facilitate easy integration into existing equipment setups.
Typical applications include frequency converters for motor drives which are used in elevators, pumps, conveyor systems, and HVAC systems. The single-stage design and robust build cater to both retrofitting and new installations requiring improved EMI performance.
Easy to install 3-line flange EMC filter in compact metal housing. Optimized for long motor cable installation and full load operation. High insertion loss ensuring excellent EMI suppression. Low leakage current value of 3.1mA for reliable operation.
Compliant with IEC 60939 and approved under UL 1283, CSA 22.2 standards. IP 20 rating suitable for indoor industrial environments. Compact dimensions facilitating integration in motor drive systems. Applications include elevators, pumps, conveyor systems, HVAC, textile and packaging machines.
This EMC filter by TDK is an essential component for maintaining electromagnetic compatibility in industrial electrical equipment. For more products in EMI filtering, please explore our Electronics Components category at EnvMart.
Explore more products in our EMC Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this EMC filter is 520V AC.
This model has a rated current capacity of 20A.
It operates efficiently at both 50Hz and 60Hz frequencies.
The leakage current is optimized to 3.1mA.
The dimensions are 150mm in length, 58mm in height, and 57.5mm in depth.
This unit features a flange mounting style with screw termination.
It is rated IP 20 for environmental protection against solid objects.
The maximum operating temperature is 100°C.
It complies with IEC 60939 standards and is approved under UL 1283 and CSA 22.2 No.8.
The resistance is rated at 3.3 milliohms.
This filter has a single-stage design.
