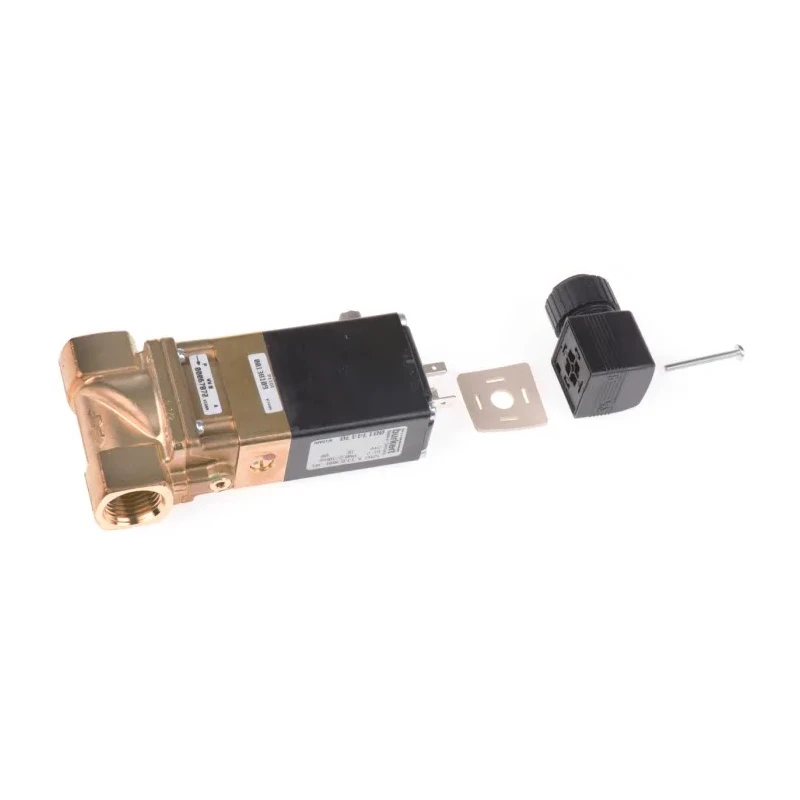

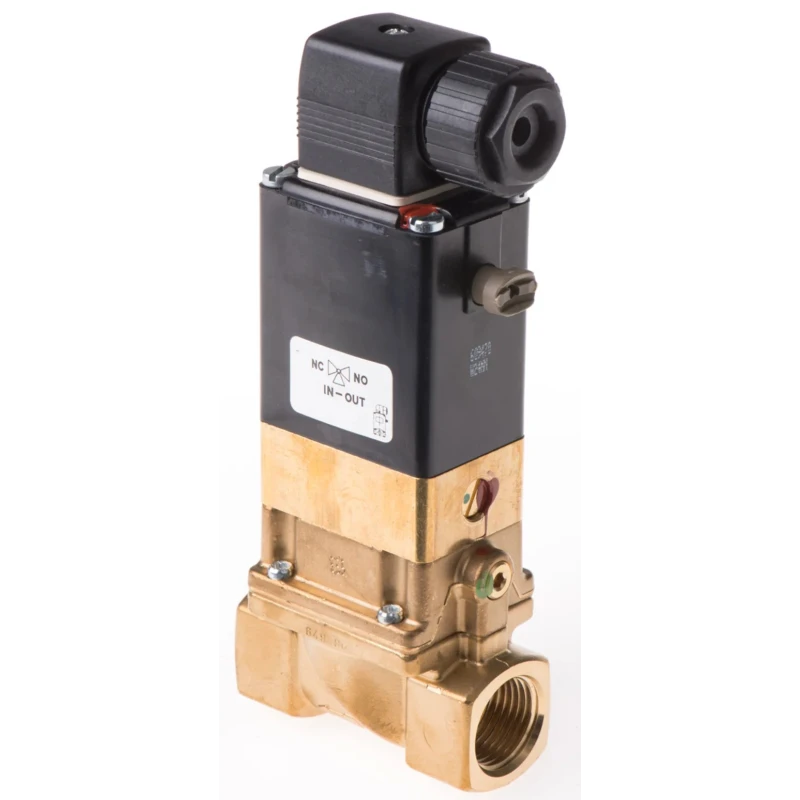

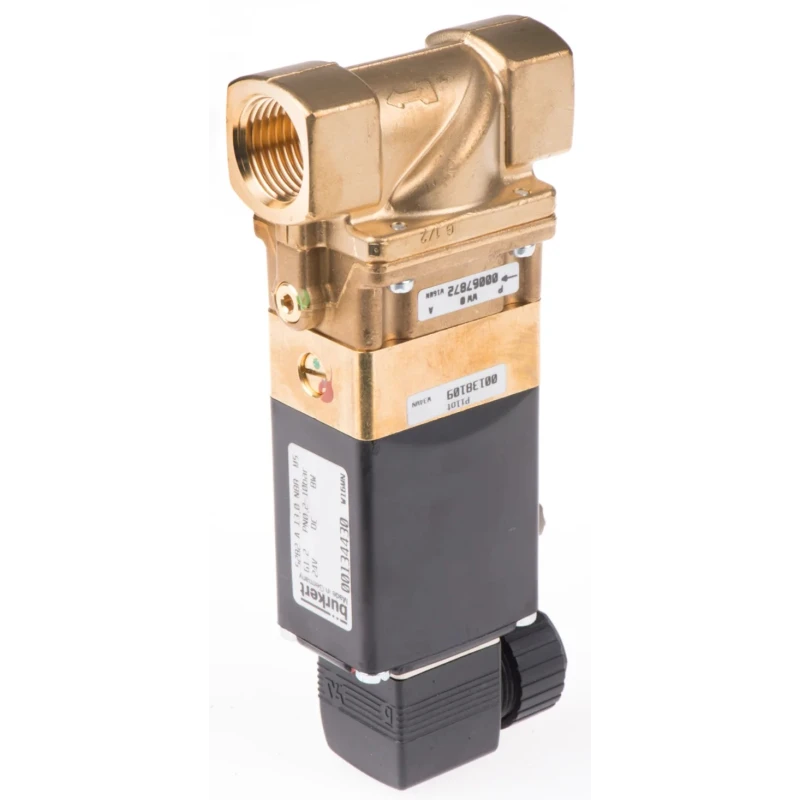

Burkert Solenoid Valve 2 Port NC Brass Body 24V DC 13mm Orifice Diameter 10 bar Operating Pressure 134430
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Burkert |
| Body Material | Brass |
| Maximum Operating Pressure | 10 bar |
| Model | 134430 |
| Series | 5282 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | 0°C |
| Orifice Diameter | 13mm |
| Supply Voltage | 24V dc |
| Standards/Approvals | UR, CGA/AGA, UL, CSA |
| Default Valve Position | NC |
| Maximum Opening Time | 0.8s |
| Flow Factor Kv | 4m³/h |
| Maximum Closing Time | 4s |
| Burkert Solenoid Valve 134434, 2 Port, NC, 24V dcBrand | Burkert |
| RS PRO Solenoid Valve, 2 Port, NC, 24V 1/2 in, 1/2 inRS Stock No. | 671-486Brand: RS PRO |
Key Features
- The valve features a maximum operating pressure of 10 bar suitable for neutral gases and liquids.
- Equipped with a servo-assisted diaphragm valve ensuring reliable flow control.
- Long-life solenoid system with opening time of 0.8 seconds and closing time of 4 seconds.
- NBR seal material enhances durability and chemical resistance.
- Operating temperature range is 0°C to 55°C to cover a wide industrial temperature spectrum.
- Lockable manual override is standard, providing manual control when necessary.
- Valve design includes a diaphragm seal in the pilot valve to protect coil from challenging applications and dirty fluids.
- Complies with European drinking water standards and is corrosion resistant due to the separating diaphragm.
Product Description
Burkert 134430 solenoid valve is a high-quality 2 port, normally closed (NC) valve with a robust brass body designed to operate at 24V DC supply voltage. It features a 13mm orifice diameter allowing a flow factor (Kv) of 4 m³/h, suitable for neutral gases and liquids in industrial and water treatment applications.
This valve incorporates a servo-assisted diaphragm design with a separating diaphragm seal that enables fluid separation in the pilot valve to protect the coil against contamination and corrosion, making it resilient to dirty fluids and extending its operational life.
The valve supports a maximum operating pressure of 10 bar and operates within a temperature range of 0°C to 55°C. It offers precise control with a maximum opening time of 0.8 seconds and maximum closing time of 4 seconds, supported by integrated restrictor screws for smooth operation.
A lockable manual override is included as standard, allowing manual intervention when automatic control is not desired. The valve uses durable NBR seal material, enhancing its reliability under industrial conditions.
Certified with UR, CGA/AGA, UL, and CSA standards and IP65 rated, this solenoid valve meets rigorous quality and safety criteria, making it ideal for use in industrial automation systems, plumbing pipelines, manufacturing processes, HVAC, and neutral media handling.
The valve operates with a power consumption of 8 watts, providing efficient energy use. Its brass body construction ensures corrosion resistance and robustness for long-term use. The product is made in Germany, highlighting its manufacturing precision and quality assurance.
This Burkert solenoid valve series 5282 offers dependable performance and is widely used in commercial and industrial applications requiring fluid control with high reliability and durability. Suitable for professional industrial fluid power systems and compliant with drinking water standards, it is a trusted solution for managing flow in pipelines and machinery.
Explore EnvMart's collection of Burkert solenoid valves and industrial valve fittings to find comprehensive solutions for your fluid power and automation needs.
Explore more products in our Industrial Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 10 bar.
This model features a 13mm orifice diameter.
It operates at a supply voltage of 24V DC.
The operating temperature range is from 0°C to 55°C.
The maximum opening time is 0.8 seconds, and the maximum closing time is 4 seconds.
The valve features a brass body and uses NBR seal material for enhanced durability and chemical resistance.
Yes, it includes a lockable manual override for manual control when necessary.
It complies with UR, CGA/AGA, UL, and CSA standards.
The flow factor (Kv) of this valve is 4 m³/h.
This model is suitable for industrial automation systems, plumbing pipelines, manufacturing processes, HVAC, and neutral media handling.
It is manufactured in Germany.
The default valve position for this solenoid valve is normally closed (NC).
