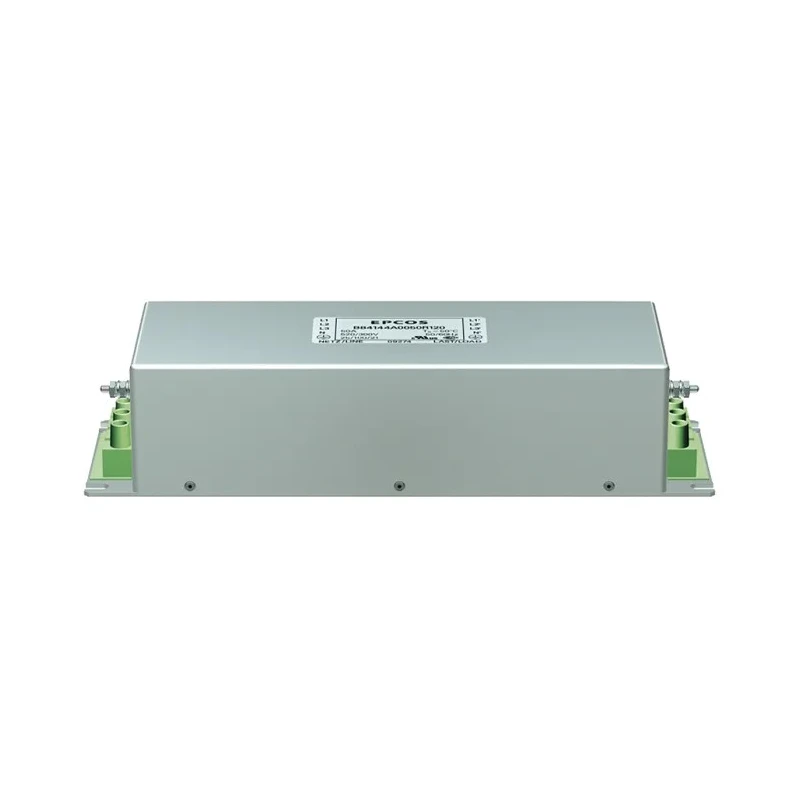

TDK Flange EMC Filter 25 A 520V AC 50Hz 60 Hz Screw Termination 3 Phase B84144A0025R120

TDK B84144A0025R120 is a high-quality flange EMC filter rated for a maximum current of 25A and voltage of 520V AC. It operates efficiently at both 50Hz and 60Hz frequencies and is designed for 3-phase power systems. The filter is housed in a durable metal case and potted in polyurethane (UL 94 V-0) for insulation and ruggedness, making it suitable for industrial environments.

This EMC filter is optimized for long motor cables and continuous operation under full load, ensuring the reliable suppression of electromagnetic interference (EMI) in sensitive electrical equipment. Common applications include frequency converters for motor drives such as elevators, pumps, conveyor systems, and HVAC systems. It is also widely used in industrial power supplies and other demanding environments.

The device features a flange mounting style with screw termination, facilitating straightforward and secure installation in electrical panels or machinery. Its compact physical dimensions measure 80mm in length, 60mm in height, and 238mm in depth, making it space-efficient for various setups.

Operating temperature ranges from -25°C to 100°C, accommodating harsh operational conditions. The leakage current is low at 9.4mA, further enhancing its operational efficiency and compliance with electromagnetic compatibility standards.

TDK's B84144A0025R120 meets UL 1283 certification requirements, ensuring adherence to recognized safety and performance standards. Proudly crafted in China, it aligns with industrial quality and reliability expectations.

Constructed with a metal case and polyurethane potting for durability and insulation. Optimized for long motor cables and full load operation to ensure stable filtering. Designed for 3-phase power systems with flange mount and screw termination style.

Wide operating temperature range from -25°C up to 100°C for versatile application environments. Low leakage current of 9.4mA ensures energy-efficient EMI filtering. Compact size with dimensions 80mm x 60mm x 238mm enables easy integration.

Meets rigorous UL 1283 standard for safe and reliable operation. Ideal for frequency converters, motor drives, power supplies, and industrial systems.
