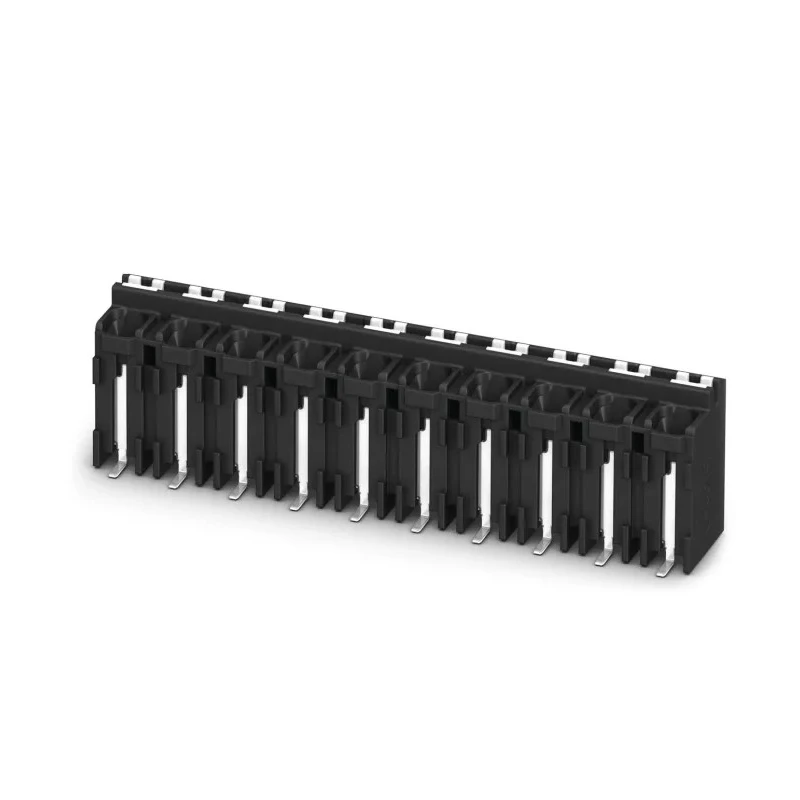

Phoenix Contact PCB Terminal Block 3-Contact 5.08 mm Pitch Surface Mount 500V 13.5A 1 Row SPT-SMD 1.5/3-V-5.08 R32 1824420
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Black |
| Orientation | Straight |
| Current | 13.5A |
| Length | 14.16mm |
| Model | 1824420 |
| Depth | 13.6mm |
| Width | 7.7mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Series | SPT-SMD 1.5/ 3-V-5.08 R32 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Number of Contacts | 3 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Spring |
Key Features
- Constructed from liquid crystal polymer housing ensuring durability.
- Surface mount type facilitates PCB integration.
- Supports wire sizes from 0.2 mm² to 1.5 mm² (24 - 16 AWG).
- Black color with straight orientation for versatile applications.
- Features spring wire connection method for tool-free, secure connections.
- Single row terminal block suitable for streamlined circuit layouts.
- Designed and manufactured in Germany ensuring high quality.
Product Description
Phoenix Contact 1824420 PCB Terminal Block is a high-quality, 3-contact terminal block with a 5.08 mm pitch designed for surface mounting on printed circuit boards. Rated for 13.5 A current and 500 V voltage, this device supports a range of wire sizes from 0.2 mm² to 1.5 mm² (24 to 16 AWG) using a reliable push-in spring technology that combines spring cage and direct push-in system for tool-free, fast, and secure wire connections.
The housing is made from advanced liquid crystal polymer, providing excellent durability and resistance to environmental factors. The block's compact footprint with dimensions of 14.16 mm length, 7.7 mm width, and 13.6 mm depth allows it to fit efficiently into constrained PCB layouts. Its black coloration and straight orientation make it suitable for various industrial and commercial electronics applications.
This terminal block belongs to the SPT-SMD 1.5/3-V-5.08 R32 series, designed for automated assembly with tape on reel packaging compliant with IEC 60283-3 standards for easy integration into SMT pick-and-place processes. It features anchoring pins for alignment and twin soldering pins to assure secure attachment to the PCB, enhancing product reliability during manufacturing and operation.
Typical use cases include industrial automation, control panels, power supply connections, instrumentation, electronic equipment, and other professional-level electronics requiring secure, reliable terminal connections on PCB assemblies.
Constructed from liquid crystal polymer housing ensuring durability. Surface mount type facilitates PCB integration. Supports wire sizes from 0.2 mm² to 1.5 mm² (24 - 16 AWG). Black color with straight orientation for versatile applications.
Features spring wire connection method for tool-free, secure connections. Compact dimensions: Length 14.16 mm, Width 7.7 mm, Depth 13.6 mm. Single row terminal block suitable for streamlined circuit layouts. Designed and manufactured in Germany ensuring high quality.
Explore more reliable electronics components and PCB Terminal Blocks on EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block is rated for a voltage of 500V.
This model has a current capacity of 13.5A.
It supports wire sizes ranging from 0.2 mm² to 1.5 mm² (24 to 16 AWG).
The pitch of this terminal block is 5.08 mm.
It features a spring wire connection method for tool-free, secure connections.
The dimensions are 14.16 mm in length, 7.7 mm in width, and 13.6 mm in depth.
Yes, it is designed for surface mounting on printed circuit boards.
This model has 3 contacts.
The housing is constructed from liquid crystal polymer, which provides durability.
It has a straight orientation, making it versatile for various applications.
It is designed and manufactured in Germany.
This terminal block belongs to the SPT-SMD 1.5/3-V-5.08 R32 series.
