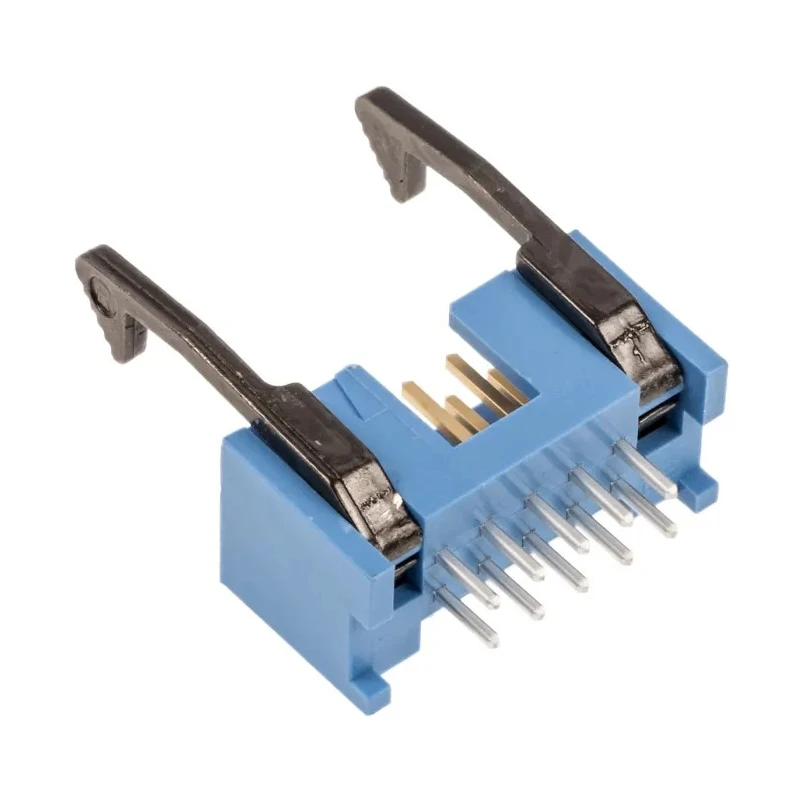

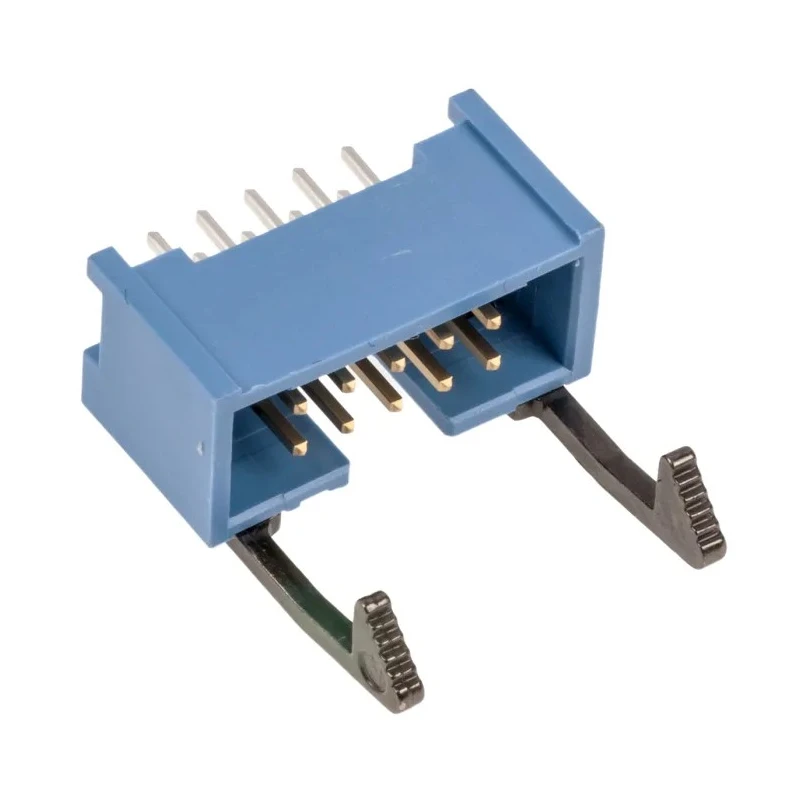

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 10 Contact, 2.54 mm Pitch, 2 Row, Shrouded 2-1761606-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.6mm |
Key Features
- Features a low profile design for efficient PCB layout and space saving.
- Supports a current rating of 1A with 250V voltage rating for reliable electrical performance.
- Constructed with Polybutylene Terephthalate housing material for durability and stability.
- Includes gold-plated phosphor bronze contacts for excellent corrosion resistance and conductivity.
- Designed with military and centre polarization and ejector latches for secure mating and easy removal.
- Suitable for through-hole mounting and wire-to-board connector system integration.
- Operates reliably in a wide temperature range from -65°C to 105°C.
- Includes 2 rows of 10 male contacts with a tail pin length of 2.6 mm for effective solder termination.
Product Description
TE Connectivity 2-1761606-3 AMP-LATCH Series Straight Through Hole PCB Header is a high-performance electronic component designed for secure and reliable wire-to-board connections. This shrouded header features 10 gold-plated phosphor bronze male contacts arranged in 2 rows with a 2.54 mm pitch, providing robust current capacity and low resistance suitable for industrial and commercial applications.
The housing is made from durable Polybutylene Terephthalate (PBT) material, ensuring mechanical strength and resistance to environmental stress. The connector uses a through-hole mounting technique and includes ejector latches featuring military and centre polarization for a secure mating that prevents accidental disconnects while facilitating easy removal when necessary.
Withstanding temperatures from -65°C to 105°C, it suits demanding operational environments and is rated for 1 Amp current and 250 Volts voltage, making it ideal for a wide range of electronic and electrical assemblies.
Long and short latch options enable compatibility with various ribbon cable receptacles, enhancing installation flexibility. This product supports critical applications in PCs, business machines, medical equipment, networking hardware, industrial control systems, electrical test devices, and household appliances.
Low profile and shrouded design for secure connection. Military and centre polarization with ejector latches. Gold-plated phosphor bronze contacts for corrosion resistance. Through-hole mounting wire-to-board system. Operating temperature range -65°C to 105°C.
Rated for 1A current and 250V voltage. Durable Polybutylene Terephthalate housing. 2 rows, 10 male contacts with 2.6 mm tail pin length. Suitable for industrial, medical, networking, and testing applications. Explore EnvMart for a broad selection of electronic components including various PCB Headers and connectors to support your manufacturing and design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1A and a voltage rating of 250V, ensuring reliable electrical performance.
This model features a 2.54 mm pitch and includes 10 male contacts arranged in 2 rows.
The housing is constructed from Polybutylene Terephthalate (PBT), providing durability and stability.
It is designed with military and centre polarization along with ejector latches, which provide secure mating and facilitate easy removal.
It operates reliably within a temperature range from -65°C to 105°C, suitable for demanding environments.
This model utilizes through-hole mounting, which is common in various electronic applications.
It supports solder termination, which is essential for secure electrical connections.
The tail pin length is 2.6 mm, designed for effective solder termination.
The contacts are made from gold-plated phosphor bronze, offering excellent corrosion resistance and conductivity.
It is suitable for a variety of applications including PCs, medical equipment, networking hardware, and industrial control systems.
This model is shrouded, which helps prevent accidental disconnections and enhances the reliability of the connection.
The country of origin for this PCB header is India.
