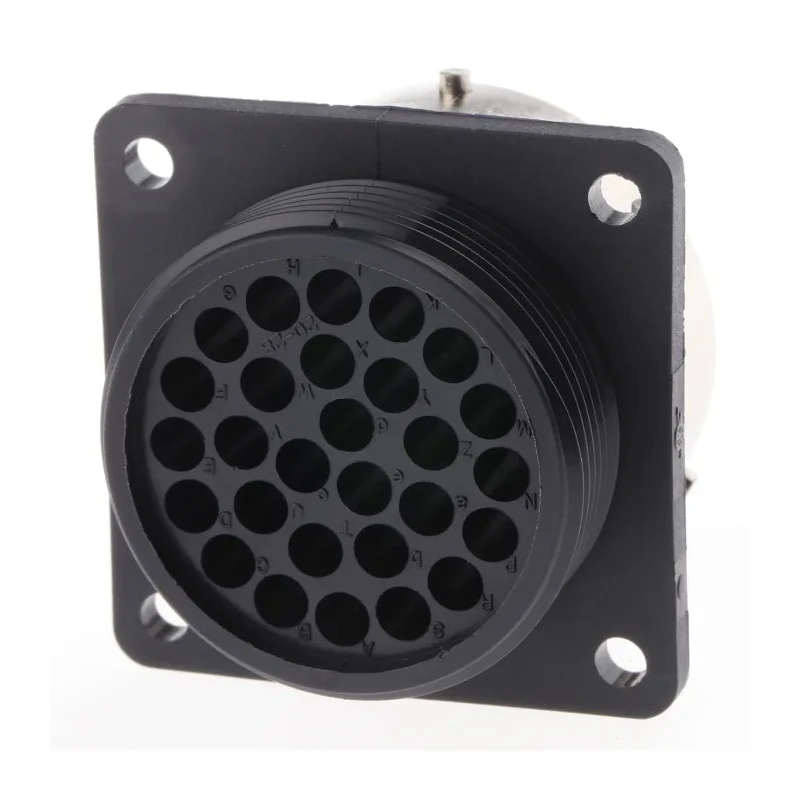

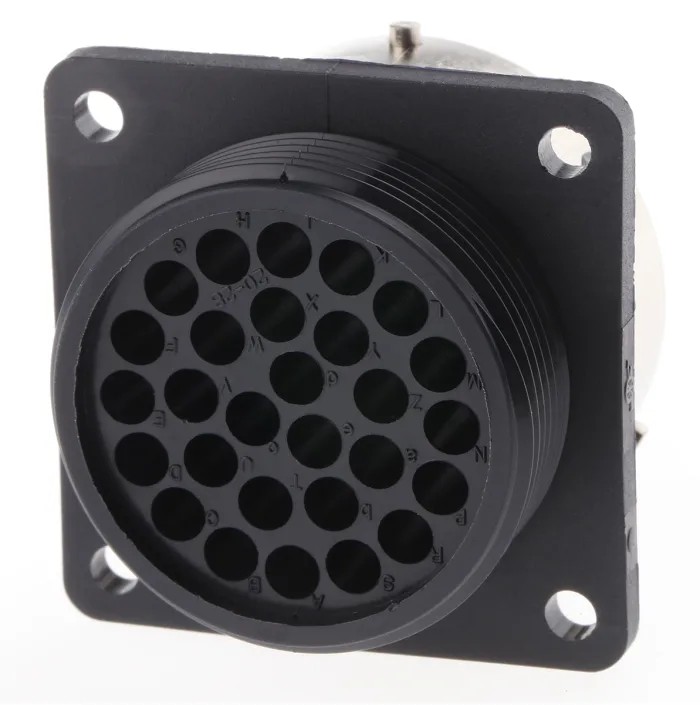

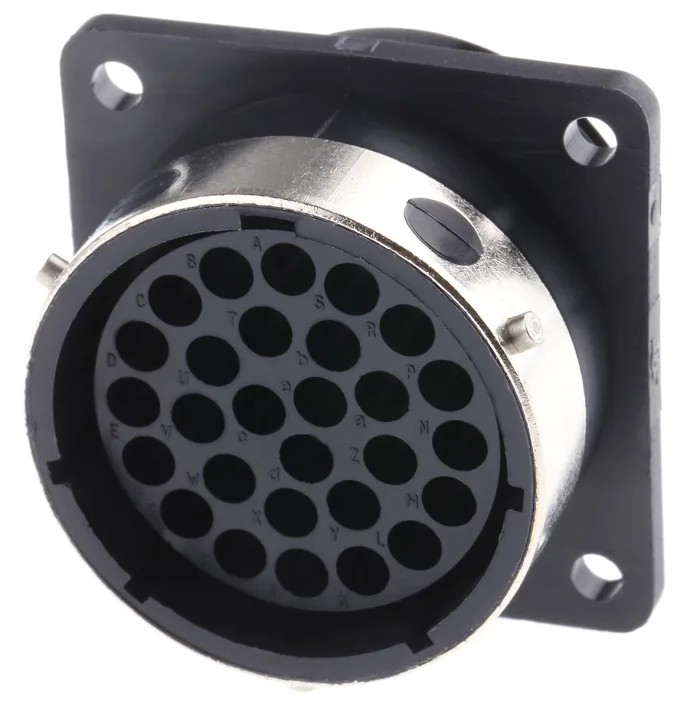

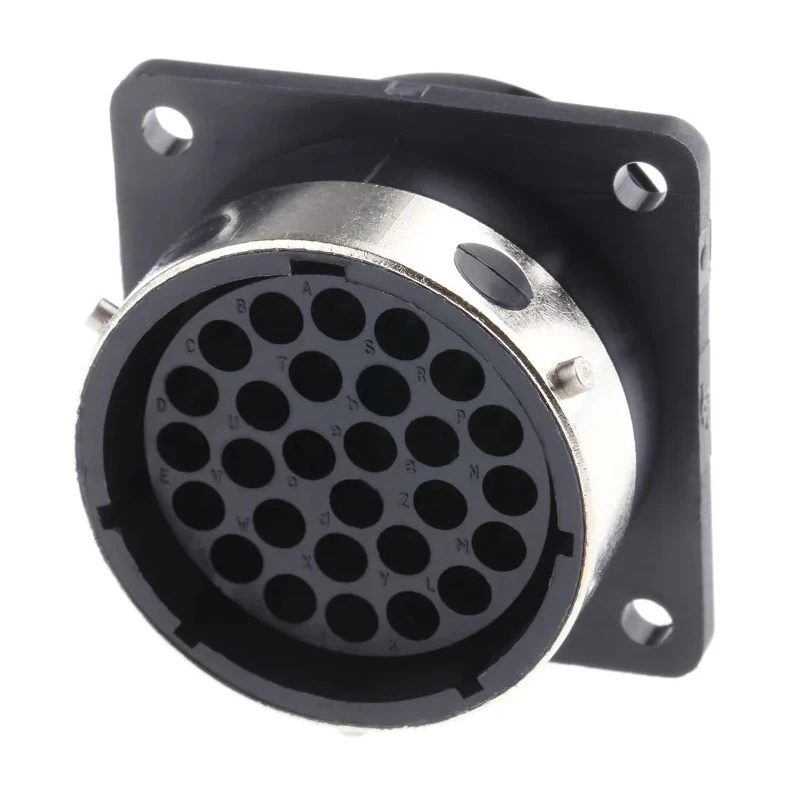

ITT Cannon Circular Connector Panel Mount Socket Female 28 Contacts 250V 16A IP65 TR2028RFS1NB / 192922-1230

ITT Cannon TR2028RFS1NB / 192922-1230 is a circular connector socket designed for panel mount applications in industrial environments. This connector features 28 female contacts and a robust polymer housing that complies with IP65 standards for protection against dust and water ingress when mated properly.

It supports a voltage rating of 250V and a current rating of 16A, making it suitable for power and control signals in demanding industrial and automation systems. The bayonet coupling mechanism allows for quick and secure mating with a single rotation, coupled with shell-to-shell keying for reliable connectivity and alignment.

The connector is constructed with copper alloy contacts plated with nickel to ensure excellent conductivity and resistance to corrosion. The black nylon shell meets the UL94 V-0 standard for flammability, offering safety in harsh conditions. Operating temperatures range from -55°C to 105°C, accommodating wide environmental conditions.

Its modular design allows the use of two-piece (T2P) and three-piece (T3P) crimp contacts, enabling onsite assembly and maintenance. The rugged construction provides high resistance against thermal and physical shock, vibrations, and impacts, making it ideal for industrial electronics, process control, robotic systems, machine building, and instrumentation.

The connector accepts standard panel shells with female (socket) contacts and mates with cable mount connectors featuring male (pin) contacts. It belongs to the Trident Ringlock series known for durability and ease of maintenance with contacts that can be removed and replaced swiftly to minimize downtime.

The connector supports a current rating of 16A and a voltage of 250V. It has IP65 ingress protection rating when mated, preventing dust and water intrusion. The bayonet locking system enables secure connection with a single rotation.

Contacts are made from copper alloy with nickel plating for corrosion resistance. Durable black nylon housing meets UL94 V-0 flammability standard. Operating temperature range of -55°C to 105°C for harsh environments. Compatible with two-piece and three-piece crimp contacts for field assembly.

Designed for industrial applications including automation and process control. Modular and rugged construction provides high shock and vibration resistance. Panel mount socket that mates with cable mount plug connectors.

This connector from ITT Cannon is ideal for engineers and professionals requiring reliable, robust, and maintainable connection solutions in industrial, manufacturing, automation, and instrumentation environments. Explore further Industrial Circular Connectors and accessories on EnvMart for comprehensive system solutions.
