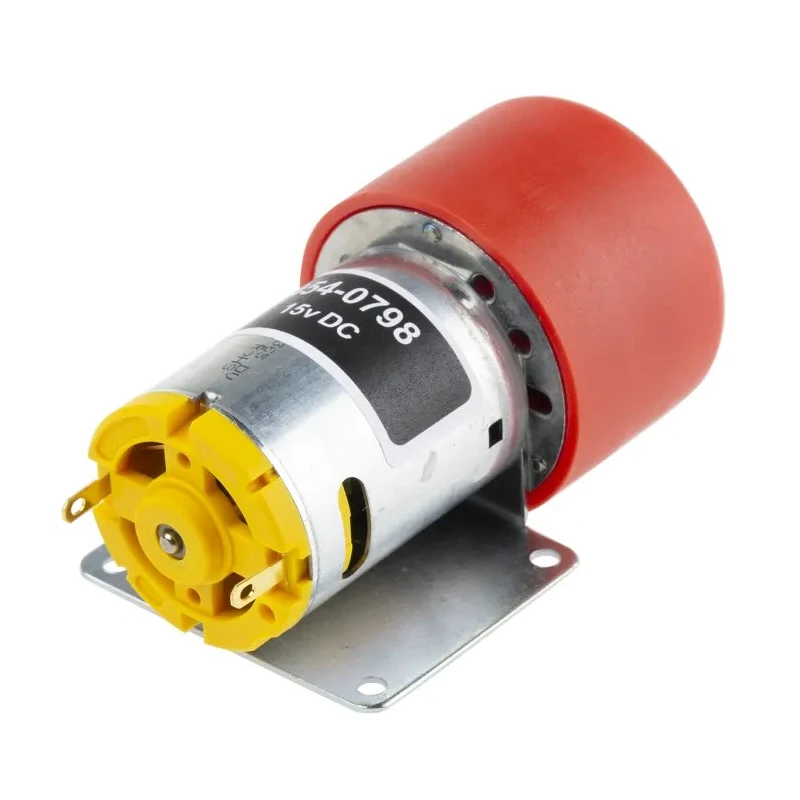

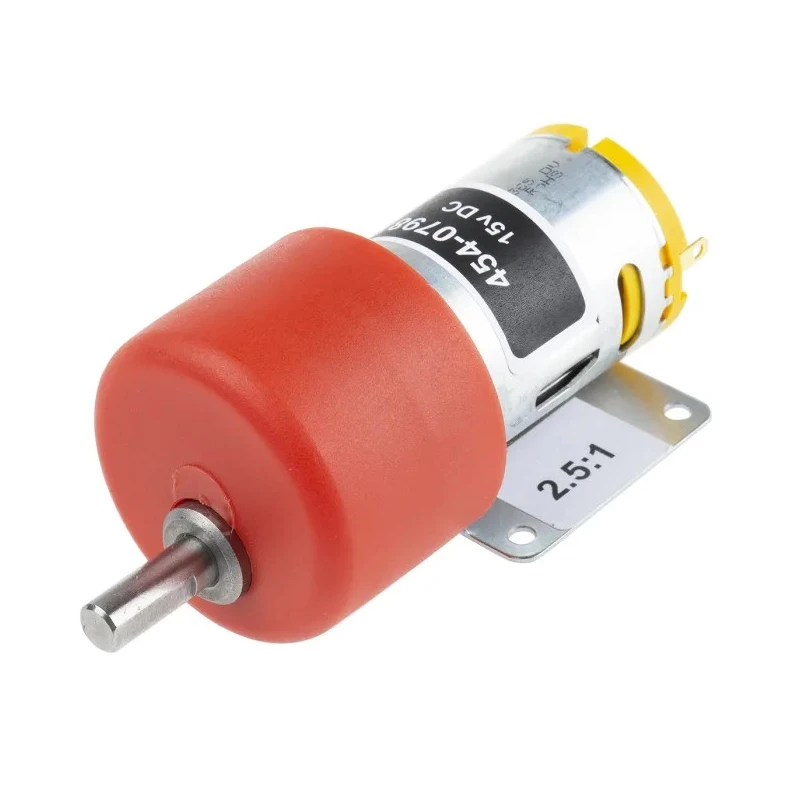

RS Pro Brushed Geared DC Geared Motor 7.98W 12V DC 4658rpm 6mm Shaft Diameter 454-0798
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS Pro |
| Material | Metal |
| Length | 65mm |
| Model | 454-0798 |
| Depth | 41.6mm |
| Width | 35mm |
| Mount Type | Screw |
| Current Rating | 990mA |
| Series | 950D |
| Power Rating | 7.98W |
| Sub Type | Brushed Geared |
| Output Speed | 4658rpm |
| Shaft Diameter | 6mm |
| Shaft Length | 15mm |
| Supply Voltage | 12V dc |
| Gear ratio | 2.5:1 |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 5Ncm |
| Gearhead Type | Spur |
| Core Construction | Iron Core |
| Gear Ratio2.5 | 1 |
| 2.5 | 1 |
Key Features
- The motor features a brushed design with a durable metal construction for reliable performance.
- Equipped with a 6 mm shaft diameter and 15 mm shaft length for precision applications.
- Mount type is screw-mounted with a spur gearhead to ensure secure installation.
- Current rating is 990 mA suitable for low voltage applications.
- Compact dimensions include length of 65 mm, width of 35 mm, and depth of 41.6 mm.
- Core is constructed with an iron core providing durability and efficiency.
- The motor complies with RoHS standards and is of series 950D.
Product Description
RS Pro 454-0798 is a brushed geared DC motor designed for applications requiring low speed and high starting torque. It operates at 12 V DC with a power rating of 7.98 W and delivers an output speed of 4658 rpm. This motor is constructed with high-quality metal materials and features an iron core for increased durability.
The motor’s spur gearhead is fitted with sintered bronze bearings that enhance torque transfer efficiency. Its 6 mm diameter shaft and 15 mm shaft length provide precise power transmission suitable for various industrial and hobbyist uses.
Mounting is done via screw type mount, allowing secure and easy installation on a steel bracket. The unit’s compact size (65 mm length, 35 mm width, and 41.6 mm depth) makes it suitable for tight spaces in machinery or control assemblies.
This DC geared motor is ideal for use in applications such as power tools, water pumps, camera systems, adjusting devices, robotics, and fans. It combines affordable brushed motor technology with a robust spur gearbox for versatility and reliability in low voltage environments.
The product complies with RoHS environmental standards and is part of the RS Pro 950D series, ensuring quality and safety in operation. The motor features a brushed design with a durable metal construction for reliable performance.
Equipped with a 6 mm shaft diameter and 15 mm shaft length for precision applications. Provides a maximum output torque of 5 Ncm with a gear ratio of 2.5:1. Mount type is screw-mounted with a spur gearhead to ensure secure installation.
Current rating is 990 mA suitable for low voltage applications. Compact dimensions include length of 65 mm, width of 35 mm, and depth of 41.6 mm. Core is constructed with an iron core providing durability and efficiency.
The motor complies with RoHS standards and is of series 950D. This RS Pro motor is a reliable choice for industrial, laboratory, manufacturing, and robotic applications that require compact, efficient DC geared motors. Explore more RS Pro motors and Gear Motors at EnvMart for a wide range of mechanical power transmission solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The motor has a power rating of 7.98 W, making it suitable for low voltage applications.
This model delivers an output speed of 4658 rpm, which is ideal for applications requiring high speed.
The current rating for this motor is 990 mA, which is appropriate for its low voltage operation.
The motor has compact dimensions of 65 mm in length, 35 mm in width, and 41.6 mm in depth.
It features a shaft diameter of 6 mm and a shaft length of 15 mm, suitable for precision applications.
The motor has a gear ratio of 2.5:1, which enhances its torque output.
This model is equipped with a spur gearhead, which is designed for efficient torque transfer.
The motor is screw-mounted, allowing for secure installation on various surfaces.
The motor is constructed with high-quality metal materials and features an iron core for durability.
It complies with RoHS environmental standards, ensuring safety in operation.
This DC geared motor is suitable for applications such as power tools, water pumps, camera systems, and robotics.
The motor is manufactured in Taiwan, ensuring quality production standards.
