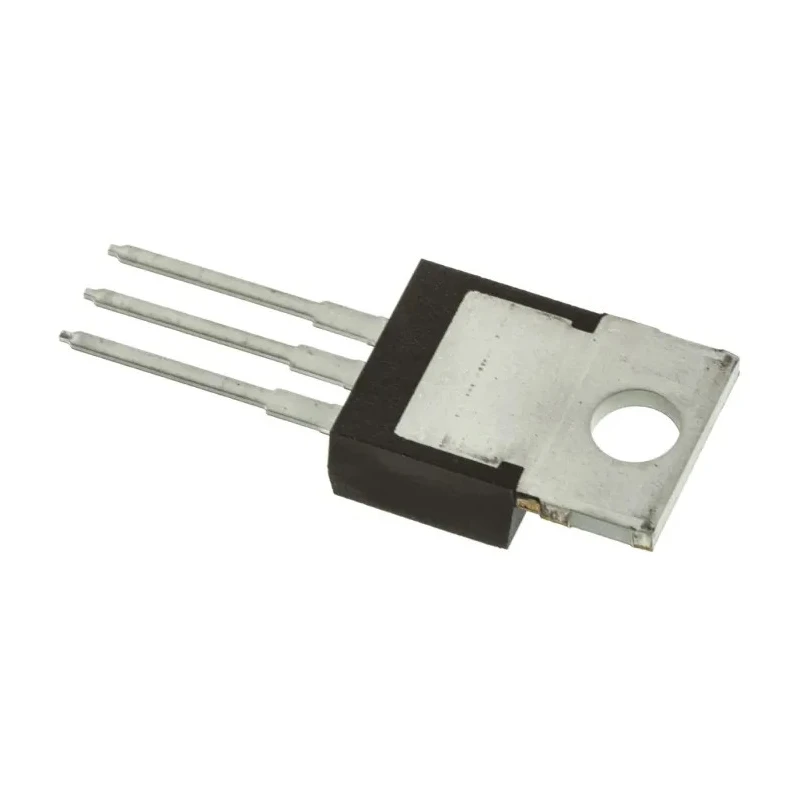

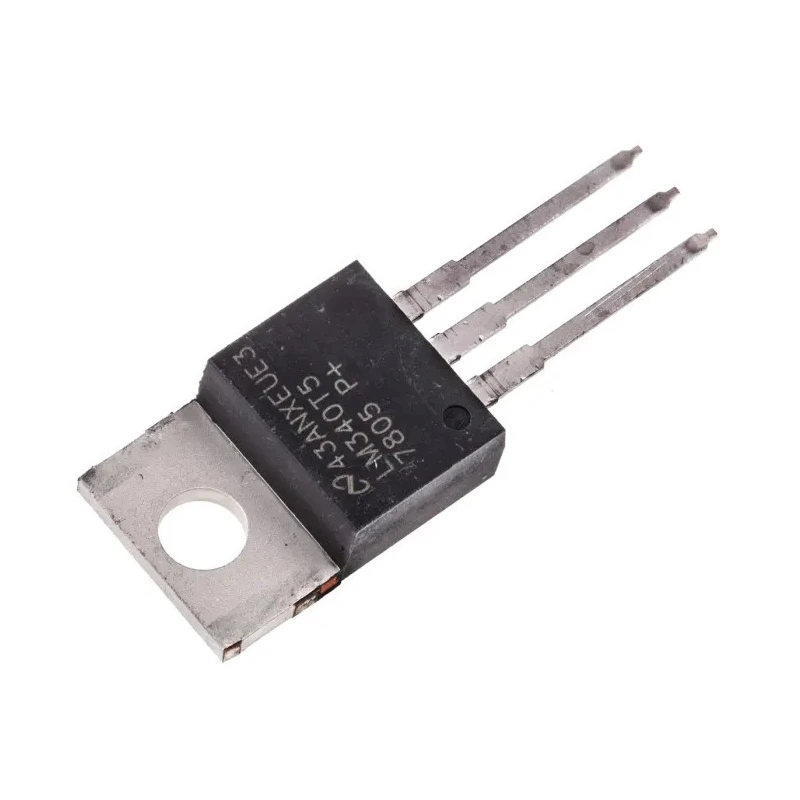

Texas Instruments Voltage Regulator TO-220 3-Pin Positive Polarity 35V Maximum Input Voltage LM340T-5.0/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 35V TO-220 3-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 8.89mm |
| Length | 10.16mm |
| Model | LM340T-5.0/NOPB |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | LM340 |
| Output Current | 1 A LM340 Series |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 8mA |
| Minimum Input Voltage | 7.5V |
| Pin Count | 3 |
Key Features
- Features a TO-220 through-hole package with 3-pin configuration.
- Operates with positive polarity and fixed output voltage of 5 V.
- Maximum operating temperature rating of 125°C ensures reliability in demanding conditions.
- Includes internal current limiting, thermal shutdown, and safe area compensation for robust operation.
- Suitable for local on-card regulation to eliminate distribution problems associated with single point regulation.
- Supports input voltage range from 7.5 V minimum to 35 V maximum.
- Quiescent current is rated at 8 mA for efficient power usage.
- Dimensionally compact with length 10.16 mm, height 8.89 mm, and width 4.7 mm.
Product Description
Texas Instruments LM340T-5.0/NOPB is a linear voltage regulator in a TO-220 3-pin package designed for fixed positive voltage regulation applications. It provides a regulated output voltage of 5 V with a maximum input voltage of 35 V and can deliver output currents up to 1 A. This regulator is robustly designed with built-in internal current limiting, thermal shutdown, and safe area compensation to protect against overloads and overtemperature conditions.
The LM340 series enables local on-card power regulation, eliminating distribution voltage drop issues common with single point regulation. It supports operation within a wide input voltage range from 7.5 V to 35 V, making it versatile for various power supply designs.
The device features a quiescent current of 8 mA, supporting efficient operation, and is housed in a standard TO-220 through-hole package measuring 10.16 mm in length, 8.89 mm in height, and 4.7 mm in width for easy mounting in industrial and commercial electronics equipment.
This fixed voltage regulator is ideal for integration in industrial control systems, laboratory instrumentation, power supply modules, and embedded electronics to provide stable 5 V power rails essential for accurate analog and digital circuit performance.
TO-220 3-pin through-hole package for easy integration and mounting. Positive polarity operation with fixed 5 V output voltage. Supports output current up to 1 A for moderate power applications. Maximum input voltage rating of 35 V with thermal protection features.
Compact dimensions suited for space-constrained applications. Wide input voltage range allows flexible power supply design. Internal safety mechanisms ensure reliable operation under harsh conditions. Efficient quiescent current rating helps reduce power dissipation.
Applications include industrial, laboratory, and power management circuits.
The LM340T-5.0/NOPB is a proven solution from Texas Instruments for reliable and stable voltage regulation needs in electronic design. It is supplied in tube packaging, ready for insertion into machinery or assembly lines, improving production efficiency.
Explore additional Texas Instruments power management ICs and Voltage Regulators at EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 5 V.
The maximum input voltage is 35 V.
It can deliver output currents up to 1 A.
The quiescent current is rated at 8 mA.
The dimensions are 10.16 mm in length, 8.89 mm in height, and 4.7 mm in width.
The minimum input voltage is 7.5 V.
It includes internal current limiting, thermal shutdown, and safe area compensation.
The maximum operating temperature rating is 125°C.
It features a through-hole mounting type for easy integration.
It is suitable for industrial control systems, laboratory instrumentation, and power supply modules.
It operates with positive polarity.
