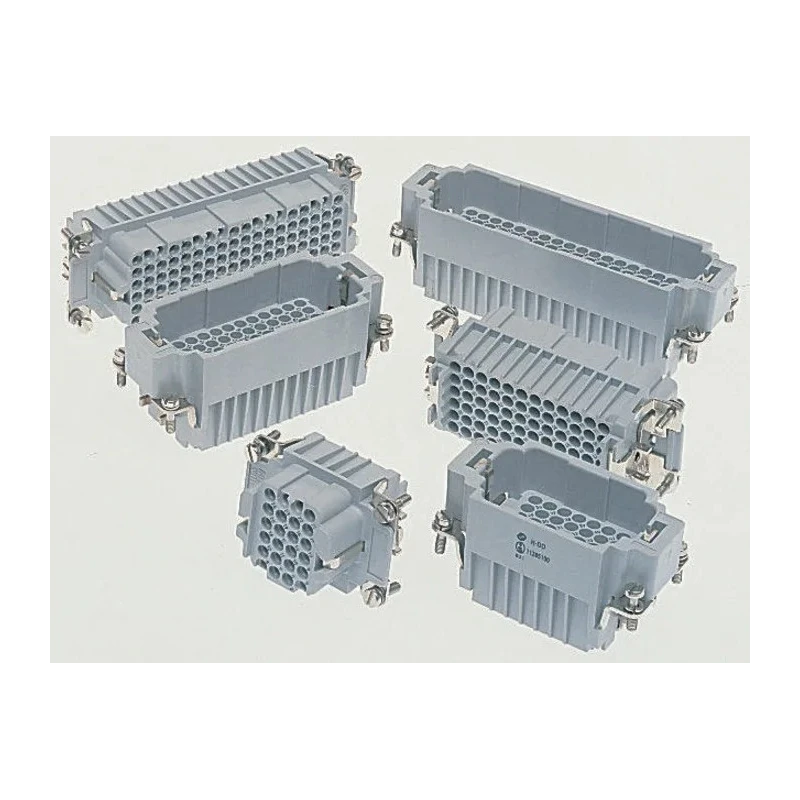

EPIC Heavy Duty Power Connector Insert 8.5A, H-DD Series Female, 42 Contacts 11286100

EPIC 11286100 is a Heavy Duty Power Connector Insert designed for reliable, high-density electrical connections in demanding industrial environments. This female connector supports a current rating of 8.5A and includes 42 contacts arranged over 6 rows, making it suitable for complex multi-contact applications.

Operating at voltages up to 600V, the connector features an IP65 rated design to withstand dust and moisture ingress, ideal for harsh factory floor or outdoor settings. The contacts are made from copper alloy with silver plating, providing excellent electrical conductivity and corrosion resistance, ensuring stable, long-lasting connections.

Its straight orientation and cable mount type allow easy integration into heavy duty power connectors, particularly those from the H-DD series. The connector is well suited for use in automation systems, machine tools, professional sound and lighting industries, as well as low voltage switchgear and control units.

Assembly uses crimp termination with a high-quality 8-point indent crimp tool, facilitating efficient installation and reliable mechanical stability. The connector also includes a separate earth connection via the metal body shell to enhance safety.

This insert is manufactured in Germany to strict quality standards and complies with VDE 0110//72, 0110b, 79, and VDE 0627//86 standards. It is type tested to 10A at 250V AC, providing verified electrical performance for critical applications.

Rated for 8.5 amperes current capacity ensuring efficient power transmission. High-density contact loading supports up to 42 electrical contacts in a compact form factor. Silver-plated copper alloy contacts enhance electrical performance and durability.

IP65 rating protects against dust and water ingress for reliable operation. Cable mount type with straight orientation for easy wiring and installation. Crimp terminated contacts provide stable and secure electrical connections.

Separate earth connection through metal body enhances operator safety. Wide industrial applicability including automation, machine tools, and switchgear. Complies with multiple German and European electrical standards. Origin: Germany, ensuring high manufacturing quality.
