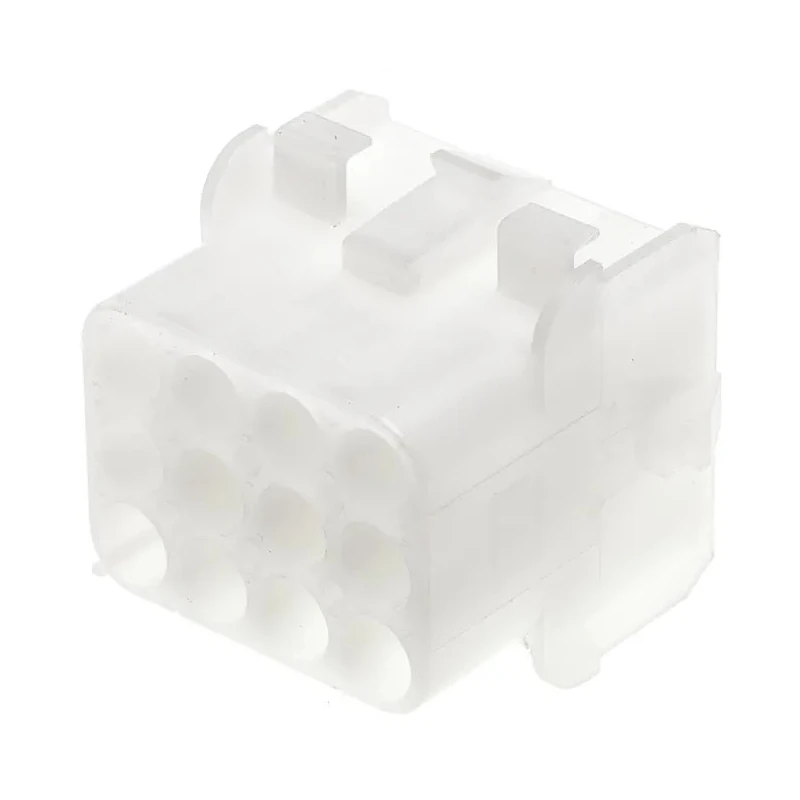

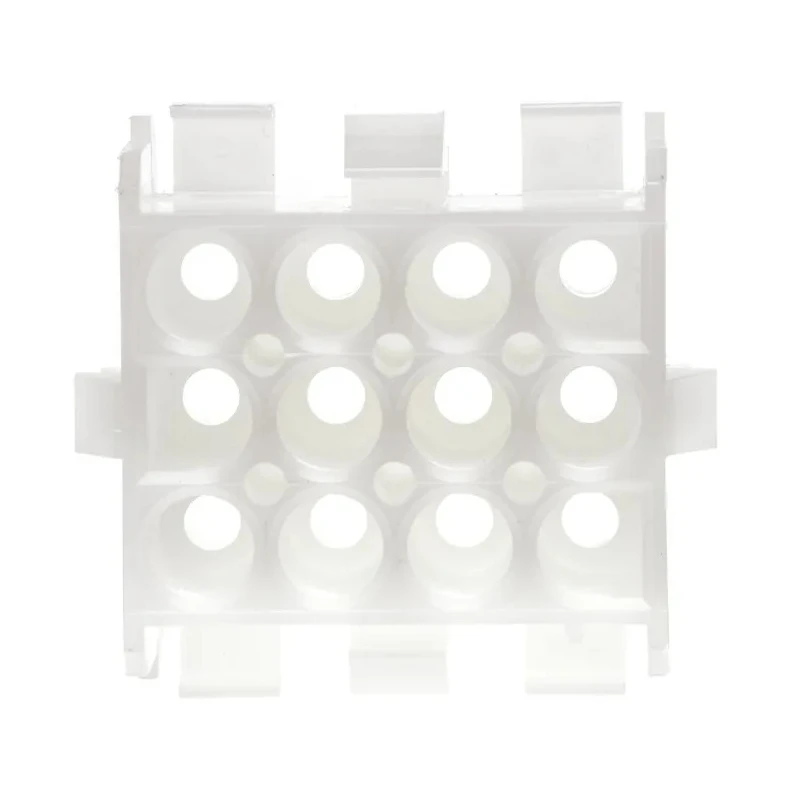

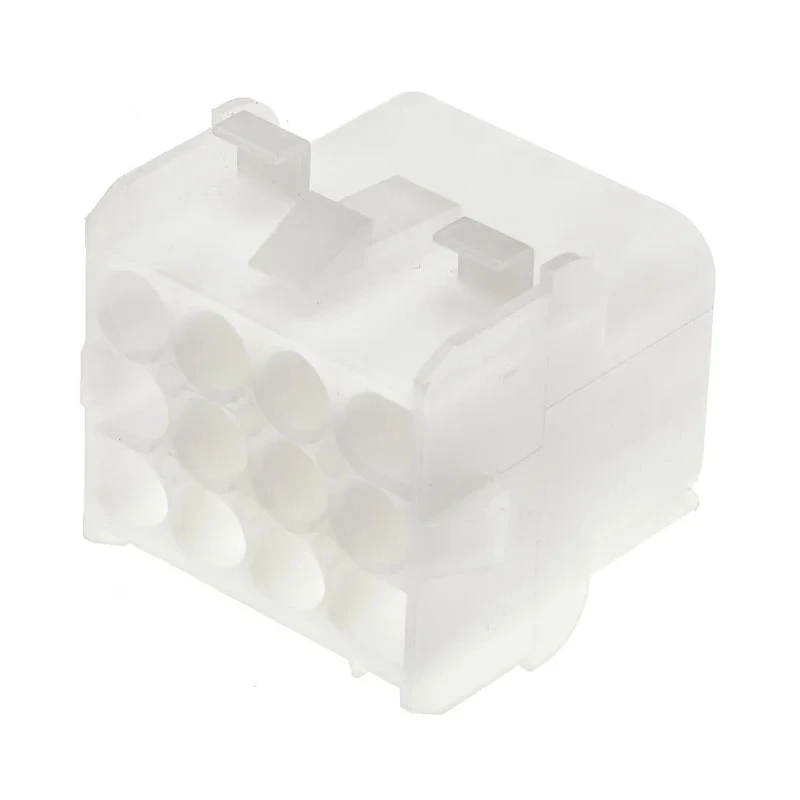

TE Connectivity Universal MATE-N-LOK Female Connector Housing, 6.35 mm Pitch, 12 Way, 3 Row Straight 1-480709
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 27.43mm |
| Model | 1-480709 |
| Width | 25.91mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Universal MATE-N-LOK |
| Number of Rows | 3 |
| Pitch | 6.35mm |
| For Use With | 6.35 mm Centerline Soft Shell Pin & Socket Connector |
| Number of Contacts | 12 |
| Connector Gender | Female |
| TE Connectivity, MATE-N-LOK Female PCB Housing, 6.35mm Pitch, 12 Way, 3 RowBrand | TE Connectivity |
Key Features
- Constructed from durable Nylon 66 material with UL94V-0 and UL94V-2 flammability ratings.
- Features a 6.35 mm pitch with 12 contacts arranged in 3 rows for compact design.
- Designed for panel mounting with a straight orientation and snap-lock latches for secure mating.
- Compatible with 6.35 mm centerline soft shell pin and socket connectors.
- Ideal for consumer electronics, commercial equipment, power supplies, HVAC, lighting, and portable device applications.
- Provides polarization to ensure accurate connector mating and prevent misalignment.
- Universal MATE-N-LOK series ensures robust and reliable connection performance.
Product Description
TE Connectivity 1-480709 Universal MATE-N-LOK Female Connector Housing is a 12-way, 3-row straight connector housing engineered for high-reliability electronic connections in industrial and commercial environments. Built from robust Nylon 66, it achieves UL94V-0 and UL94V-2 flammability ratings, ensuring safety and durability under demanding conditions.
This connector housing features a 6.35 mm pitch designed for panel mounting applications with a straight orientation to facilitate easy assembly. Its snap-lock latches deliver a clear audible 'click' to confirm secure mating, while polarization prevents incorrect connections, enhancing system reliability.
Compatible with 6.35 mm centerline soft shell pin and socket connectors, this product is suitable for wire-to-wire, wire-to-panel, and wire-to-board use cases, supporting versatile industrial wiring configurations.
Applications include consumer electronics, commercial equipment, power supply units, HVAC systems, lighting installations, and portable electronic devices. The compact and modular Universal MATE-N-LOK range simplifies the design and assembly process while maintaining high performance and safety standards.
The connector's dimensions include a length of 27.43 mm and width of 25.91 mm, accommodating 12 contacts arranged in three rows, making it ideal for multi-contact electrical connections.
Constructed from Nylon 66 housing material with UL94V-0 and UL94V-2 flame retardancy certifications. 6.35 mm pitch with 12 contacts arranged 3 rows straight configuration. Panel mount design with snap-lock latches for quick and secure release.
Polarized design for accurate connector mating and prevention of misalignment. Compatible with 6.35 mm centerline soft shell pin and socket connectors for versatile applications. Ideal for industrial, commercial, automotive, and consumer electronics connectivity solutions.
Robust and reliable performance meeting demanding application requirements. Explore the full TE Connectivity Universal MATE-N-LOK range in the Electronics Components category on EnvMart for your next high-quality connector solution.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector housing features a pitch of 6.35 mm.
This model accommodates 12 contacts arranged in 3 rows.
The housing is constructed from Nylon 66 material.
The dimensions of the connector housing are 27.43 mm in length and 25.91 mm in width.
Yes, it is designed for panel mounting with a straight orientation.
This housing is suitable for consumer electronics, commercial equipment, power supplies, HVAC systems, lighting, and portable devices.
Yes, it features snap-lock latches that provide a secure mating connection.
The connector gender of this model is female.
The housing meets UL94V-0 and UL94V-2 flammability ratings.
The design includes polarization to ensure accurate connector mating and prevent misalignment.
