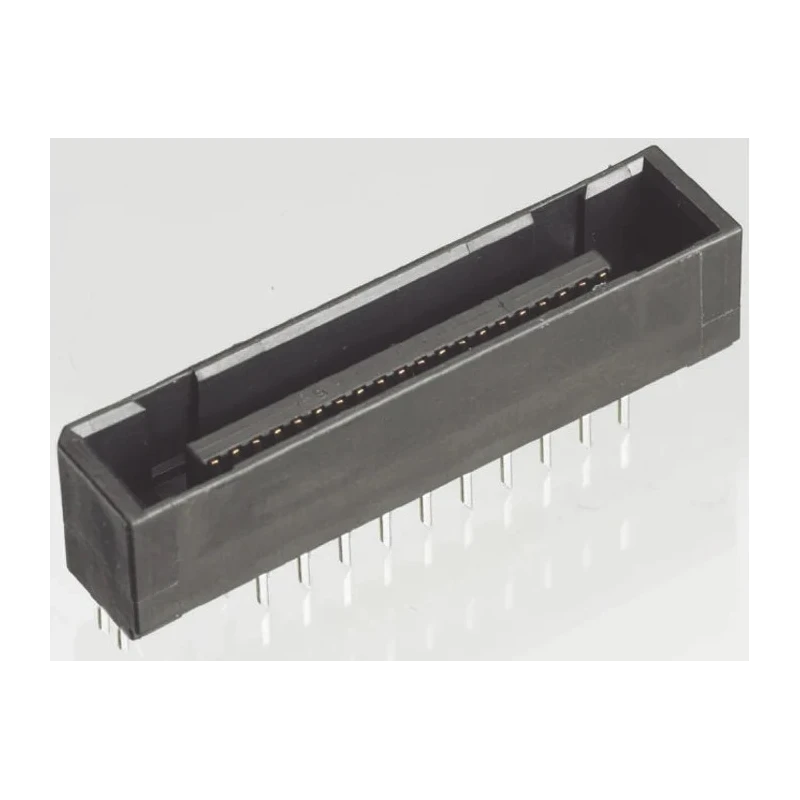

JAE TX25 Series Straight Through Hole PCB Header, 60 Contacts, 1.27 mm Pitch, 2 Row, Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | JAE |
| Orientation | Straight |
| Current | 1A |
| Model | TX25 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | TX25 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 60 |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Designed for reliable board-to-board connectivity with 1A current rating.
- Constructed with polybutylene terephthalate housing for durability.
- Gold-plated copper alloy contacts ensure excellent conductivity and corrosion resistance.
- Supports operational temperatures from -40°C to 80°C for versatile usage.
- Through hole mount type ensures strong mechanical stability on PCBs.
- Shrouded design enhances protection and prevents mis-mating.
- Operating voltage up to 500V for various electronic applications.
- Straight orientation with 1.27 mm pitch facilitates compact installation.
Product Description
JAE TX25-60P-6ST-H1E is a high-quality straight through hole PCB header designed for robust board-to-board connections. Featuring 60 contacts arranged in 2 rows with a 1.27 mm pitch, this shrouded connector ensures stable and reliable electrical engagement in various electronic assemblies.
The connector utilizes a durable polybutylene terephthalate housing material and gold-plated copper alloy contacts, providing excellent conductivity and long-term corrosion resistance. Its design supports a current rating of 1A and operating voltage up to 500V, making it suitable for a wide range of electrical and electronic applications.
Designed for operational temperature ranges from -40°C to 80°C, the TX25 series connector is ideal for demanding environments. The through-hole mounting type secures the connector firmly onto printed circuit boards, while the shrouded form factor offers added protection and polarizing keys to prevent incorrect mating.
This product is applicable in industrial electronics, manufacturing, instrumentation, and other electronic component harnessing scenarios where reliable and compact PCB interconnections are essential. Its resistance to mechanical twisting forces during mating cycles ensures long-lasting performance in high-use environments.
Reliable board-to-board electrical connection with 60 contacts and 2 row configuration. Durable polybutylene terephthalate housing and gold-plated copper alloy contacts. Supports currents up to 1A and voltages up to 500V.
Operational temperature range from -40°C to 80°C for versatility. Through hole mounting method for mechanical stability. Shrouded design enhances protection and correct mating. Compact 1.27 mm pitch suited for dense PCB layouts.
Explore a wide selection of JAE PCB connectors and headers available at EnvMart for industrial and commercial applications, ensuring high reliability and performance in your electronic assemblies.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1A, making it suitable for various electronic applications.
The maximum operating voltage for this connector is 500V, allowing it to be used in a wide range of electrical applications.
The contacts in this unit are arranged with a pitch of 1.27 mm, facilitating compact installations on printed circuit boards.
It features a polybutylene terephthalate housing and gold-plated copper alloy contacts, ensuring good conductivity and corrosion resistance.
This connector operates effectively within a temperature range of -40°C to 80°C, suitable for various environments.
The TX25 series PCB header is equipped with 60 contacts arranged in 2 rows for reliable board-to-board connections.
It utilizes a through hole mounting type, which provides strong mechanical stability on printed circuit boards.
Yes, this model features a shrouded design that enhances protection and prevents mis-mating during installation.
The termination type for this PCB header is solder, which is commonly used for secure connections on PCBs.
This connector is applicable in industrial electronics, manufacturing, instrumentation, and other electronic component harnessing scenarios.
The TX25 series connector has a straight orientation, which aids in compact installations on PCBs.
The country of origin for this model is India, indicating where it is produced.
